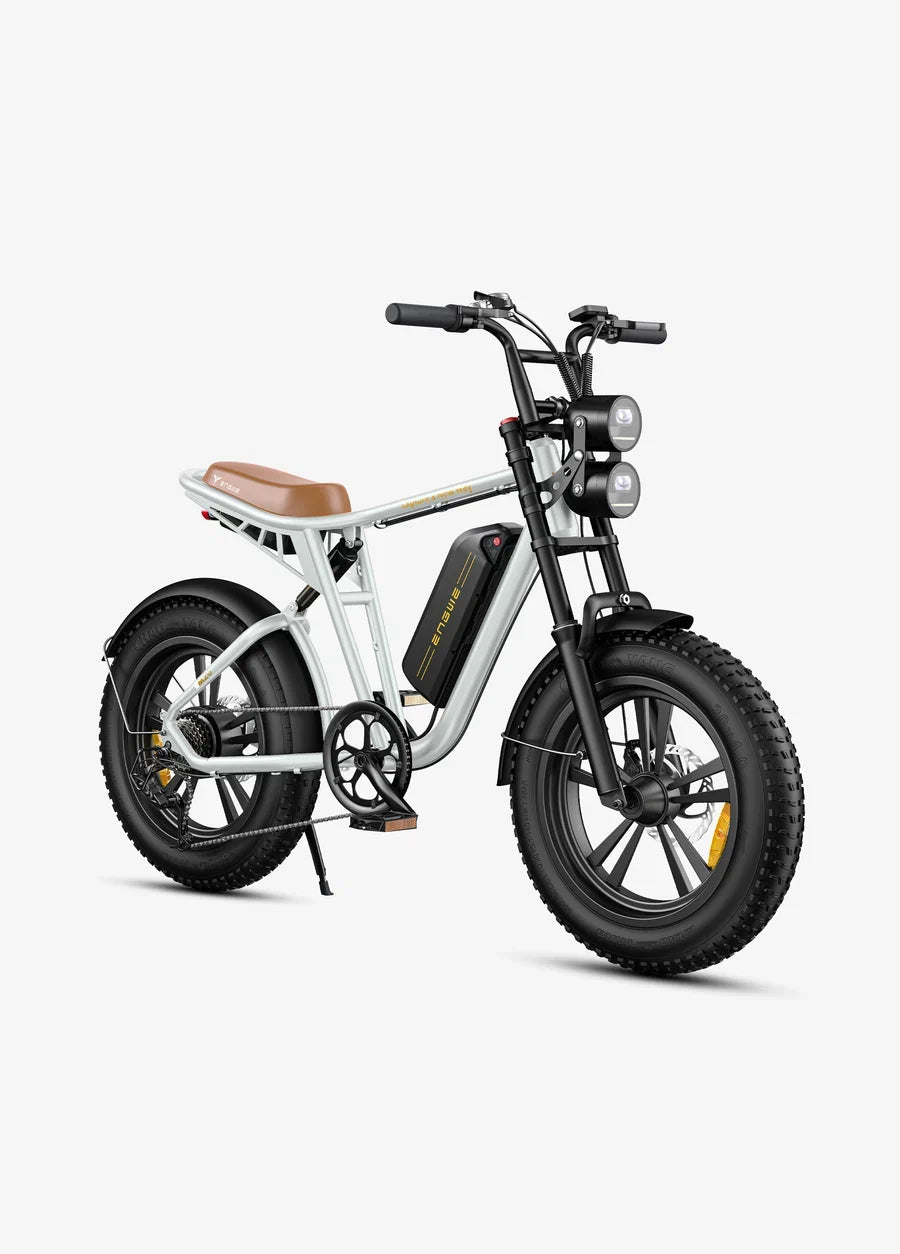

ENGWE M20 Real Product Images

Below are real ENGWE M20 product and detail images from ENGWE's official product gallery. They show the frame, fat tires, suspension, lighting and overall design.

ENGWE M20 Overview

The ENGWE M20 is positioned as a full-suspension fat-tire moped-style electric bike. Its design combines a relatively long frame, large 20 × 4.0-inch tires, a suspension system and an optional dual-battery configuration.

Unlike a lightweight city e-bike, the M20 is built around a much more substantial chassis. ENGWE lists the bike at 76.72 lb (34.8 kg), with the gross package weight rising to 94.13 lb for the 13Ah battery version and 104.05 lb for the 26Ah version. :contentReference[oaicite:3]{index=3}

That weight is important to understand before buying. It can contribute to stability and a planted feel, but it also makes carrying the bike upstairs, loading it into a vehicle or moving it without motor assistance considerably more demanding than with a lightweight commuter.

ENGWE M20 Motor and Performance

ENGWE specifies a brushless motor with a rated output of 750W and claimed torque of 55Nm. The M20 uses a Shimano 7-speed transmission system, allowing the rider to select different gearing for varying terrain.

The combination of motor assistance, fat tires and seven-speed gearing gives the M20 a broad use case. On pavement, the wide tires provide the visual and physical characteristics of a fat bike. On gravel or uneven surfaces, the larger contact patch can provide a different riding experience from a narrow commuter tire.

However, motor wattage should not be interpreted as a direct guarantee of speed. Actual performance depends on controller settings, battery state, rider weight, terrain, wind, tire pressure and applicable speed limits.

ENGWE M20 Battery Options

One of the biggest buying decisions is the battery configuration. ENGWE offers the M20 with either a single 48V 13Ah lithium-ion battery or two 48V 13Ah batteries.

The single configuration provides 48V 13Ah of battery capacity. The dual configuration provides 48V 26Ah total capacity. :contentReference[oaicite:4]{index=4}

For riders who primarily travel short distances, the single battery can make the overall setup simpler and lighter. Riders who frequently travel longer distances may prefer the additional capacity offered by the dual-battery configuration.

ENGWE M20 Range

Range is one of the most searched specifications for the M20. ENGWE lists up to 75 km at PAS mode 1. That figure should be understood in the context of the manufacturer's test conditions.

Real-world range can be significantly different.

• Higher speeds generally require more energy.
• Heavier riders and cargo increase energy consumption.
• Steep hills require more motor assistance.
• Strong headwinds can reduce efficiency.
• Low temperatures can affect battery performance.
• Low tire pressure increases rolling resistance.
• Higher pedal-assist levels generally use more energy.

Therefore, someone shopping specifically for maximum range should look at the dual-battery configuration and also consider their actual route rather than relying exclusively on the advertised maximum.

ENGWE M20 Dual Battery

The dual-battery M20 uses two 48V 13Ah batteries. That gives the bike 26Ah of capacity at 48V, assuming both batteries are used together as designed.

The major advantage is additional stored energy. The trade-off is additional weight. Since the M20 is already a heavy e-bike, riders who frequently need to lift or transport their bike should take the total weight seriously.

For riders with long daily routes, however, the additional battery capacity can reduce the need for frequent charging.

ENGWE M20 Fat Tires

The M20 uses 20 × 4.0-inch fat tires. ENGWE describes them as three-layer tires designed for different surfaces, including imported rubber, carbon nano braiding and a butyl rubber inner tube. :contentReference[oaicite:5]{index=5}

Fat tires can be useful when riding on surfaces where additional tire volume and traction are desirable. They can also contribute to a more cushioned feeling when paired with appropriate tire pressure.

The trade-off is rolling resistance and weight. A fat-tire e-bike is not usually the same choice as a lightweight road-oriented commuter.

ENGWE M20 Suspension

Suspension is one of the defining features of the M20. ENGWE describes the bike as a full-suspension model and highlights its front and rear suspension design.

Full suspension can be useful on uneven roads, gravel and other surfaces where a rigid frame can transmit more vibration to the rider.

It also makes the M20 different from many basic commuter e-bikes that rely primarily on tire volume and a front suspension fork.

ENGWE M20 Brakes

The M20 uses front and rear 160mm mechanical disc brakes according to the official specification page. :contentReference[oaicite:6]{index=6}

Because the M20 is a relatively heavy bike, braking performance is an important specification to consider. Riders should inspect brake condition regularly, particularly when riding in wet conditions or on long descents.

ENGWE M20 Gearing

ENGWE equips the M20 with a Shimano 7-speed drivetrain. The additional gears allow riders to select an appropriate ratio for different terrain.

Lower gears can make climbing more manageable when pedaling, while higher gears can be useful on flatter sections where maintaining a faster cadence is appropriate.

ENGWE M20 Weight and Payload

The official specification lists a bike weight of 76.72 lb (34.8 kg) and a maximum payload capacity of 120 kg / 264 lb. :contentReference[oaicite:7]{index=7}

The payload figure includes the rider and cargo, so a rider should not interpret 264 lb as a cargo allowance on top of their own weight.

The weight is one of the most important practical considerations. The M20 is not an e-bike designed primarily around portability. Its design instead emphasizes fat tires, suspension, battery capacity and a substantial moped-style frame.

ENGWE M20 Dimensions and Rider Fit

ENGWE lists a rider height range of approximately 5.2 to 6.2 feet and provides detailed frame dimensions on its product page. The listed total length is 167 cm, wheelbase 115.2 cm and minimum saddle height 84 cm. :contentReference[oaicite:8]{index=8}

Because fit is personal, riders near the upper or lower end of the published range should carefully compare the listed dimensions with their own preferred riding position.

ENGWE M20 Features

Beyond the core motor and battery specifications, the M20 includes several practical features intended to make it more useful for everyday riding.

• LCD display for speed and battery information.
• Shimano 7-speed drivetrain.
• Front LED lighting.
• Rear lighting.
• Folding aluminum alloy pedals.
• Full suspension.
• 20 × 4.0-inch fat tires.
• Single- and dual-battery options.

ENGWE M20 Specifications

ENGWE M20 vs Similar ENGWE Models

The M20 sits within ENGWE's broader fat-tire and moped-style lineup. The choice between models should be based on the riding characteristics and specification package rather than simply choosing the newest or most expensive model.

ENGWE M20 vs M20 3.0

This is one of the most important comparisons for someone searching for "ENGWE M20" because the M20 name now appears across different generations.

The original M20 uses a 750W motor with 55Nm claimed torque and 48V batteries. The newer M20 3.0 uses a substantially different 750W-rated, 3,300W-peak hub motor with 120Nm claimed torque and 60V 20Ah battery options. ENGWE's US M20 3.0 page also lists full suspension and four-piston hydraulic brakes. :contentReference[oaicite:9]{index=9}

These are therefore not simply different colors or minor revisions. They represent materially different specification packages.

Which ENGWE M20 Battery Should You Choose?

The single-battery configuration makes more sense for riders who prioritize lower weight and don't routinely need maximum battery capacity.

The dual-battery configuration is more relevant to riders who routinely travel longer distances and want more stored energy between charging sessions.

Before selecting the dual-battery version, remember that the extra battery increases the overall weight. If you need to carry the bike upstairs regularly, that difference can matter.

ENGWE M20 Real-World Riding Considerations

Specifications tell only part of the story. A buyer should also think about how the M20 will be used every day.

City Riding

The M20's fat tires and suspension can be useful on roads with uneven pavement, potholes and rougher surfaces. Its moped-style appearance also gives it a distinctive visual character compared with a traditional bicycle.

However, its 34.8 kg weight makes it less convenient to carry into an apartment or office. Riders without secure ground-level storage should consider this before ordering.

Gravel and Mixed Surfaces

The 20 × 4.0 tires and full suspension make the M20 relevant to riders who regularly encounter gravel or mixed surfaces.

Tire pressure should be adjusted according to the surface and manufacturer's recommendations. Lower pressure can change comfort and traction but can also affect rolling resistance and puncture behavior.

Long-Distance Riding

The dual-battery configuration is the main M20 option for riders focused on longer distances. The additional battery increases total capacity from 13Ah to 26Ah at 48V.

Still, riders should plan around a realistic range rather than the maximum manufacturer figure. Charging availability and route elevation can be more important than a headline range number.

ENGWE M20 Pros and Considerations

What Comes With the ENGWE M20?

ENGWE states that the package includes the M20 e-bike, the selected battery configuration, charger, assembly tools, pedals, installed handlebars and user manual. :contentReference[oaicite:10]{index=10}

Because the exact contents can depend on the selected configuration, check the current product page immediately before purchase.

ENGWE M20 Warranty and Support

ENGWE's official site highlights customer support, warranty coverage, local repair services in supported regions and return information. The exact warranty terms depend on the market and current policy, so buyers should review the applicable regional warranty before ordering.

The official page also currently provides assembly information and an assembly video for the M20. :contentReference[oaicite:11]{index=11}

ENGWE M20 Customer Reviews

The official ENGWE M20 page currently displays 319 customer reviews. The visible review distribution shows 302 five-star reviews, 16 four-star reviews, one two-star review and zero shown in the three- and one-star categories. :contentReference[oaicite:12]{index=12}

Customer comments on the official page mention comfort, suspension, city riding, assembly and the bike's weight. Those comments are individual experiences rather than controlled product testing, so they should be considered alongside the manufacturer's specifications.

Is the ENGWE M20 Good for Beginners?

The M20 can be used by riders who are new to electric bikes, but its size and weight should be considered. A 34.8 kg e-bike is considerably heavier than many conventional commuter models.

New riders should become familiar with the controls, braking, pedal-assist levels and local regulations in a safe environment before riding in traffic.

ENGWE M20 Safety and Legal Considerations

E-bike regulations vary by country, state and municipality. Speed limits, motor classifications, throttle rules, helmet requirements and where an e-bike may legally be ridden can differ significantly.

Always check the rules applicable to your location before using the M20 on public roads, cycle paths or trails.

Riders should also use appropriate protective equipment and make sure the brakes, tires, lights and fasteners are properly checked before riding.

ENGWE M20 Buying Checklist

• Confirm your country's product version
• Choose single or dual battery
• Check the current regional price
• Review the warranty terms
• Check shipping availability
• Measure your available storage space
• Consider the 34.8 kg bike weight
• Check rider height compatibility
• Confirm the maximum 120 kg payload
• Review local e-bike regulations

ENGWE M20 Price and Availability

The ENGWE global product page currently displays the M20 at €1,099. The page also displays a new-customer discount code of NEWENGWE for 2% off. Because ENGWE uses regional storefronts with different pricing and product availability, the price shown to you may differ depending on location. :contentReference[oaicite:13]{index=13}
