Featured: ENGWE X26

Featured Pick

ENGWE X26 29.2Ah Dual Battery

★★★★★ 4.7/5

• 1200W peak high-speed brushless motor
• 48V 29.2Ah dual-battery configuration
• Up to 93 miles claimed ECO range
• 26 × 4.0-inch fat tires
• 70 Nm torque
• Triple suspension system
• Hydraulic disc brakes
• Shimano 8-speed drivetrain

Check X26 Deal →

ENGWE X26 Full Specifications

Specifications above are based primarily on ENGWE's current official US product information. ENGWE notes that actual measurements can vary by approximately 0–5 cm. :contentReference[oaicite:3]{index=3}

ENGWE X26 Official Product Images

The following gallery is designed to use official ENGWE X26 imagery. ENGWE's current product page contains product, riding, component, suspension, battery, brake and display images for the X26. :contentReference[oaicite:4]{index=4}

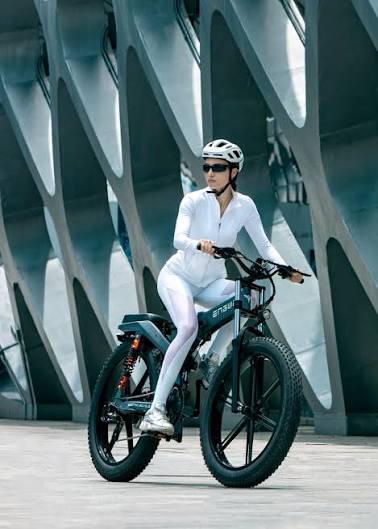

ENGWE X26 Main View

Fat-Tire X26

Why the ENGWE X26 Gets So Much Attention

The X26 is built around a combination that is unusual among folding electric bikes: large 26-inch fat tires, a substantial dual-battery setup, triple suspension and a high-output motor system.

Instead of optimizing primarily for low weight, ENGWE has focused the X26 specification on stability, range and all-terrain capability. That approach is reflected in its approximately 96-lb dual-battery weight and 330-lb payload rating. :contentReference[oaicite:5]{index=5}

ENGWE X26 Motor and Power

One of the headline specifications is the X26's high-speed brushless motor. ENGWE lists the platform at 1200W peak power and 70 Nm of torque.

Peak motor power should not be confused with continuous rated power. Peak output describes the maximum electrical/mechanical output under particular conditions, while real-world performance depends on rider weight, battery state, terrain, temperature, tire pressure, controller behavior and riding mode.

For hill riding, torque is particularly relevant. The X26's 70 Nm figure provides a useful indication of the motor's intended performance category, although climbing performance in the real world will depend on many variables.

ENGWE X26 Battery and Range

The dual-battery X26 uses two lithium-ion batteries: a 48V 10Ah battery and a 48V 19.2Ah battery. Together, these provide 29.2Ah of stated capacity. ENGWE lists up to 150 km, approximately 93 miles, in ECO mode for the dual-battery configuration. :contentReference[oaicite:6]{index=6}

The important phrase is "ECO mode." Maximum advertised range is not the same thing as the range you should expect while riding continuously at high speed or using maximum motor assistance.

Higher rider weight, hills, strong winds, frequent acceleration, low temperatures, aggressive pedal-assist settings and under-inflated tires can all reduce range.

Triple Suspension: One of the X26's Biggest Features

The ENGWE X26 uses a triple-suspension design. This is one of the features that differentiates it from simpler folding fat-tire e-bikes.

Suspension can be particularly useful when riding over broken pavement, gravel, dirt paths and other surfaces where a rigid frame can transmit more vibration to the rider.

ENGWE specifically markets the X26 around rough-terrain comfort, while its official specifications combine the suspension system with 26 × 4.0-inch fat tires. :contentReference[oaicite:7]{index=7}

26 × 4.0 Fat Tires

The X26 uses 26 × 4.0-inch fat tires. The large contact patch and volume of fat tires can provide additional stability and traction compared with narrower bicycle tires.

They are particularly relevant if your riding includes gravel, dirt, sand or uneven paths. On paved roads, tire pressure becomes important: lower pressures can improve comfort and traction, while excessive pressure can reduce the compliance that makes fat tires useful.

ENGWE X26 Brakes

Braking is handled by hydraulic disc brakes. ENGWE also describes the X26's front and rear braking system around 160 mm brake rotors and lists a maximum braking-distance figure of 12 meters in its product information. :contentReference[oaicite:8]{index=8}

Hydraulic brakes generally offer strong braking control and require different maintenance procedures from mechanical cable-actuated systems. Brake performance still depends on rider weight, speed, terrain, brake-pad condition and setup.

Shimano 8-Speed Drivetrain

The X26 includes a Shimano 8-speed transmission. That gives riders multiple mechanical gearing options in addition to electric assistance.

Using a lower mechanical gear can make steep climbs easier to pedal, while higher gears can be useful when traveling faster on level roads. The combination of mechanical gears and electric assistance gives the rider more control over cadence and motor load.

ENGWE X26 vs X24 vs X20

The X26 is part of ENGWE's X-series family. Comparing the specifications can help explain where the X26 sits within the range.

ENGWE's published X-series information lists the X26 and X24 with 1200W peak output and 70 Nm torque, while the X20 is listed at 1000W peak and 65 Nm. Battery configurations and range claims vary by model and configuration. :contentReference[oaicite:9]{index=9}

What Is the ENGWE X26 Like to Ride?

The X26's specification points toward a ride focused on stability, comfort and long-distance capability rather than minimal weight.

The 26-inch wheels are relatively large for a folding fat-tire e-bike, while the 4-inch tires provide a substantial amount of air volume. Combined with the triple-suspension setup, this configuration is intended to handle uneven surfaces more comfortably.

The trade-off is weight. At approximately 96 lb for the dual-battery version, this is not a lightweight folding bicycle. :contentReference[oaicite:10]{index=10}

That matters if your plan is to frequently lift the bike into a car, carry it upstairs or transport it without assistance. Folding does make the X26 more compact, but folding does not make a 96-lb e-bike light.

ENGWE X26 Size and Weight

ENGWE lists the X26 for riders approximately 5.5 to 6.5 feet tall. The unfolded dimensions include a 196.1 cm overall length, 114.7 cm height, 76.1 cm standover height and 122.1 cm wheelbase.

The listed folded dimensions are 110 × 72 × 120 cm. ENGWE notes that measured dimensions can vary by approximately 0–5 cm. :contentReference[oaicite:11]{index=11}

Who Is the ENGWE X26 Designed For?

The specification makes the X26 particularly relevant to riders looking for a combination of:

• Long-distance recreational riding
• Fat-tire stability
• Rough-road comfort
• Large battery capacity
• Higher motor output
• Hydraulic braking
• Folding capability
• Higher rider/payload capacity

It may be less suitable for someone whose primary requirement is a very lightweight bicycle that can easily be carried upstairs or lifted into a small vehicle.
