🦅 X-PRO HAWK 125 YOUTH ATV
BIGGER POWER. WIDER STANCE. SERIOUS OFF-ROAD CAPABILITY.
The X-PRO Hawk 125 is built for riders who have outgrown smaller youth quads and want a more capable ATV with real off-road hardware.
Its 119.6cc single-cylinder 4-stroke engine produces 5.3 kW at 7,500 RPM and 8.0 Nm of torque at 5,500 RPM, while the fully automatic D-N-R transmission, 35+ MPH top speed, large 19 × 7-8 front / 18 × 9.5-8 rear tires, and 198 lb maximum load capacity give the Hawk a substantially larger platform than entry-level youth ATVs.
Designed for riders 13 years and up, with a recommended height of 4'10"–6'0", the Hawk 125 is made for private land, farms, backyards and designated OHV areas.
⚡ 119.6cc POWER FOR THE NEXT LEVEL
🔥 5.3 kW AT 7,500 RPM
The Hawk 125 uses a Guangyu 119.6cc single-cylinder, 4-stroke, air-cooled gasoline engine.
Maximum published engine output:
5.3 kW at 7,500 RPM
That's approximately 7.1 horsepower.
The engine also produces:
8.0 Nm at 5,500 RPM
This combination provides substantially more output than the smaller 40cc and 110cc youth ATV classes.
🔄 FULLY AUTOMATIC D-N-R TRANSMISSION
The Hawk 125 uses:
Automatic Drive • Neutral • Reverse
The hand-operated selector gives the rider three positions:
D — Drive
N — Neutral
R — Reverse
There is no manual clutch and no manual gear shifting.
That makes the Hawk easier to operate while allowing the rider to concentrate on steering, throttle and braking.
🔘 ELECTRIC START
Starting the Hawk is simple.
Press the starter → engine starts → select Drive → ride
The ATV uses:
Electric start
12V / 5Ah starter battery
CDI ignition
The 12V/5Ah battery is a starter battery, not a propulsion battery.
🛡️ THREE-LAYER PARENTAL CONTROL SYSTEM
The Hawk 125 combines three independent control features.
📡 1. WIRELESS REMOTE KILL SWITCH
The parent-operated wireless remote can stop the engine from a distance.
This provides an additional emergency-control option without requiring the supervising adult to physically reach the ATV.
🎛️ 2. ADJUSTABLE SPEED LIMITER
The throttle governor can limit the ATV's speed so a new rider can begin at a more manageable setting.
As the rider develops experience, the setting can be increased.
🛑 3. HANDLEBAR ENGINE KILL SWITCH
The rider also has a handlebar-mounted engine kill switch for immediate engine shutdown.
Three independent control points:
Parent remote
Adjustable speed limiter
Rider-accessible kill switch
These features are additional safety controls and do not replace adult supervision, training, protective equipment or responsible riding.
🚀 35+ MPH ADVERTISED TOP SPEED
The Hawk 125 is advertised at:
35+ MPH
Actual speed depends on rider weight, terrain, incline, road/surface conditions and ambient temperature.
The manufacturer specifically notes that the published performance figures are measured under favorable conditions and real-world performance can vary.
🛞 BIG 19" / 18" OFF-ROAD TIRES
The Hawk uses large tubeless knobby tires:
Front
19 × 7-8
Rear
18 × 9.5-8
The wider tires provide a larger contact patch and are designed for suitable dirt, grass, gravel and off-road surfaces.
🏁 DUAL A-ARM FRONT SUSPENSION
The Hawk 125 features:
Dual A-Arm independent front suspension
Each front wheel can respond to uneven terrain independently.
At the rear:
Single Swing Arm suspension
This combination is designed to provide a more controlled ride across suitable uneven terrain.
🛑 FRONT DRUM + REAR HYDRAULIC DISC
The braking system uses two different braking technologies:
Front
Drum brake
Rear
Hydraulic disc brake
The hydraulic rear disc provides controlled braking performance while keeping the overall system straightforward.
🧱 WIDE STEEL FRAME
The Hawk is built around a:
Steel frame
The overall chassis measures:
59.8" long
37" wide
36.2" tall
The 37-inch width gives the ATV a broad stance.
📏 27.5-INCH SEAT HEIGHT
The Hawk has a:
27.5-inch seat height
Recommended rider fit:
Age: 13 years and up
Height: 4'10"–6'0"
Height in metric: 147–183 cm
Maximum load: 198 lbs / 90 kg
For additional safety margin, the manufacturer recommends keeping rider weight at or below 180 lbs.
Actual fit depends on inseam, footwear, riding posture and suspension sag.
⚖️ 198 LB MAXIMUM LOAD
The Hawk supports a maximum total load of:
198 lbs / 90 kg
The manufacturer recommends a rider weight of 180 lbs or less for additional safety margin.
Do not exceed the 198 lb maximum capacity.
💡 LED HEADLIGHT + TAIL LIGHT
The Hawk includes:
🔦 LED Headlight
🔴 Rear Tail Light
These provide useful visibility during appropriate off-road riding conditions.
Lighting does not make the ATV street legal.
⛽ 2-LITER GASOLINE TANK
The Hawk uses:
2 L fuel tank
Recommended fuel:
87-octane gasoline
The engine uses a PZ20 carburetor and CDI ignition.
Because fuel consumption varies according to speed, rider weight, terrain, temperature and throttle use, the manufacturer does not publish a fixed miles-per-tank range.
🔧 BUILT FOR REAL OFF-ROAD USE
The Hawk 125 is intended for:
-
Private land
-
Farms
-
Backyards
-
Designated OHV parks
-
Suitable dirt trails
-
Gravel
-
Grass
-
Moderate uneven terrain
It is not designed for public roads, highways or public property.
🎨 NINE COLOR OPTIONS
Choose from:
-

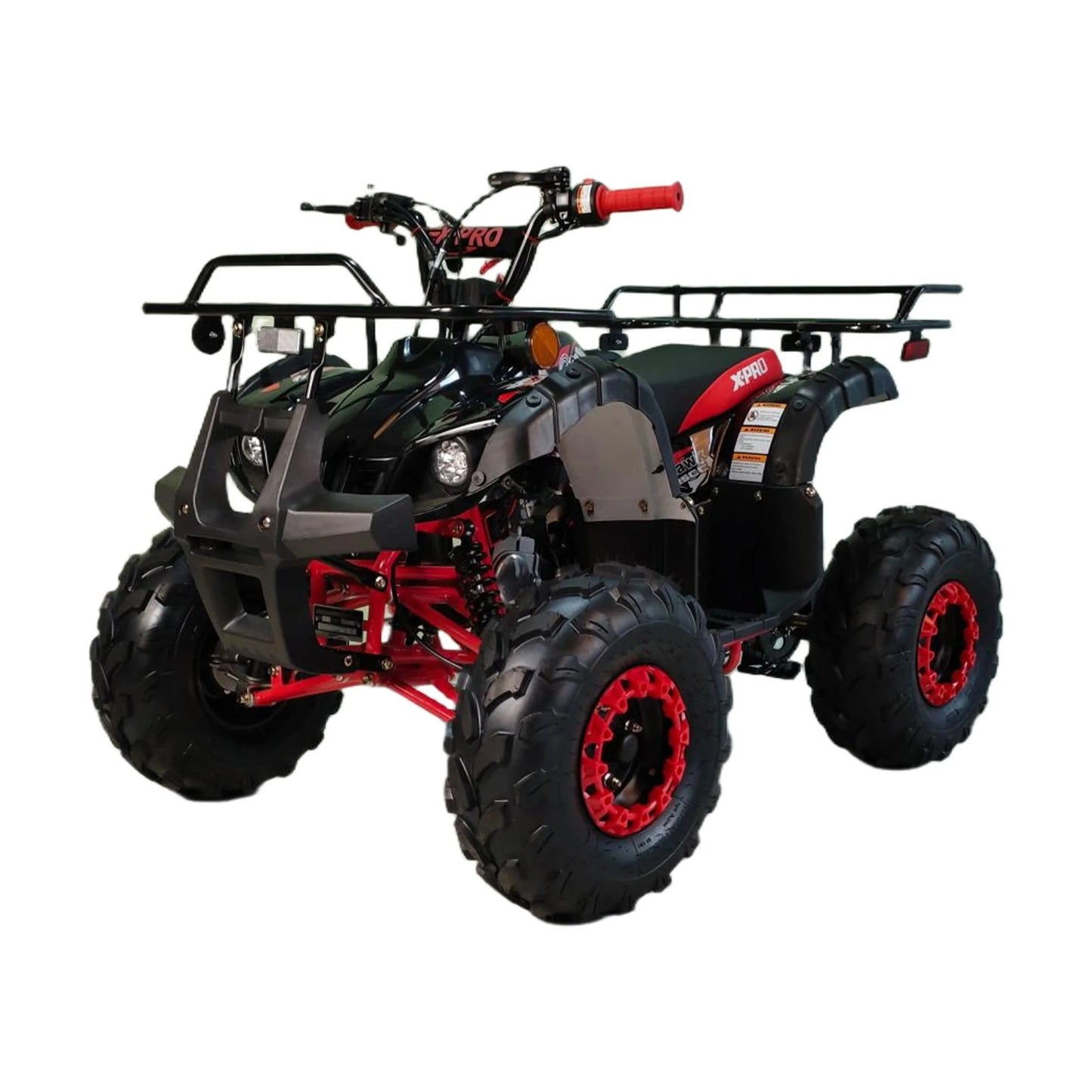

Black/Red
-

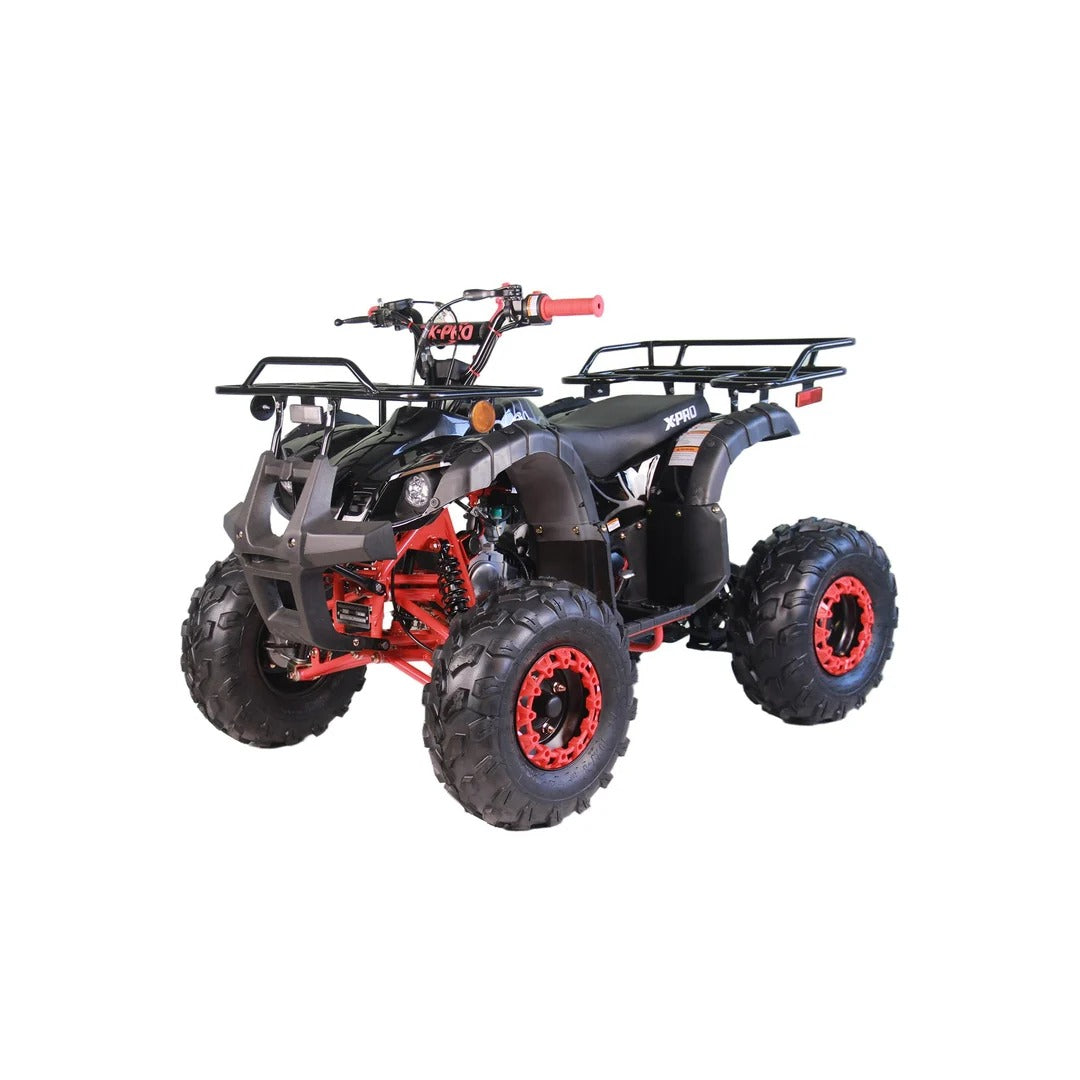

Spider Black/Red
-
Spider Red/Red
-

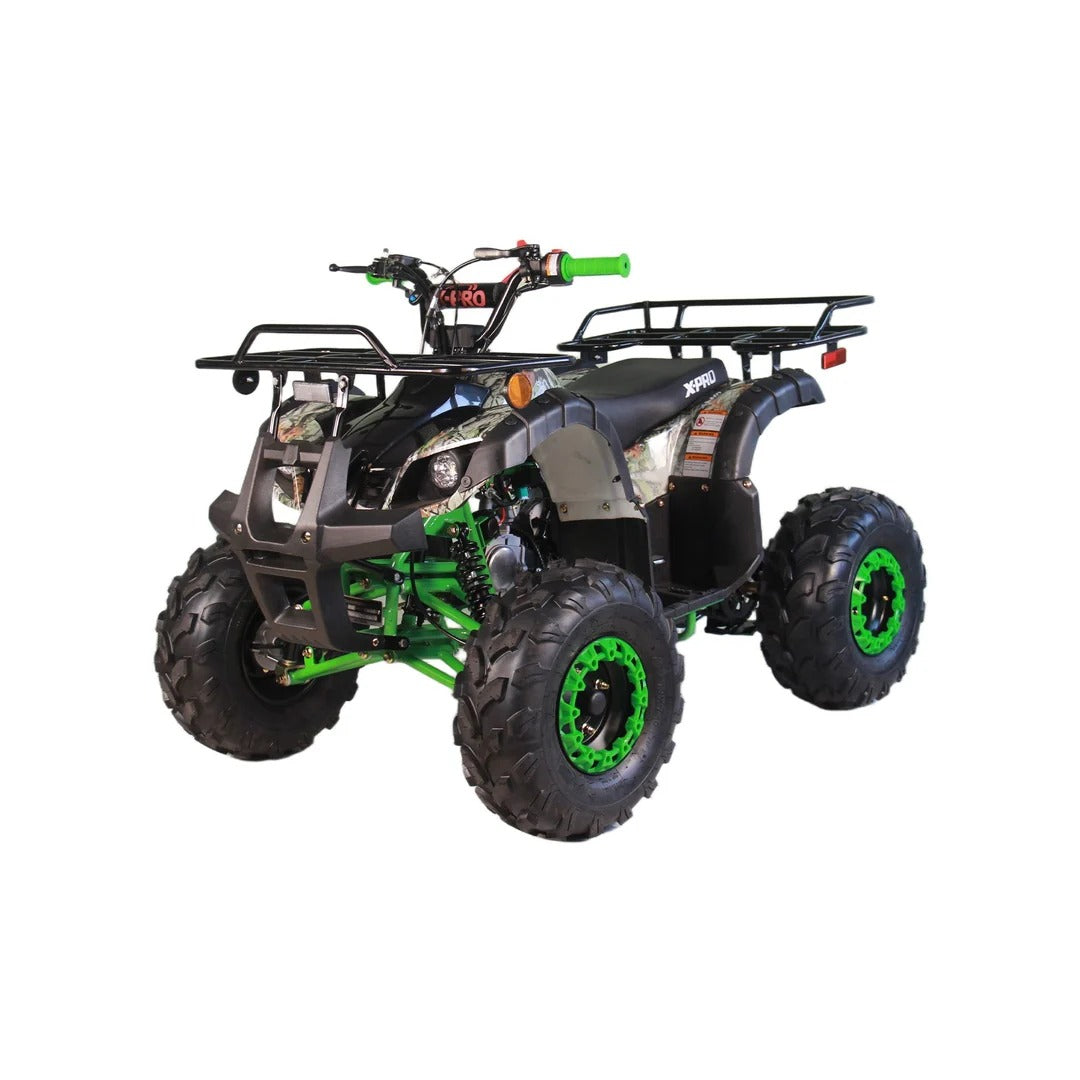

Tree Camo/Green
-

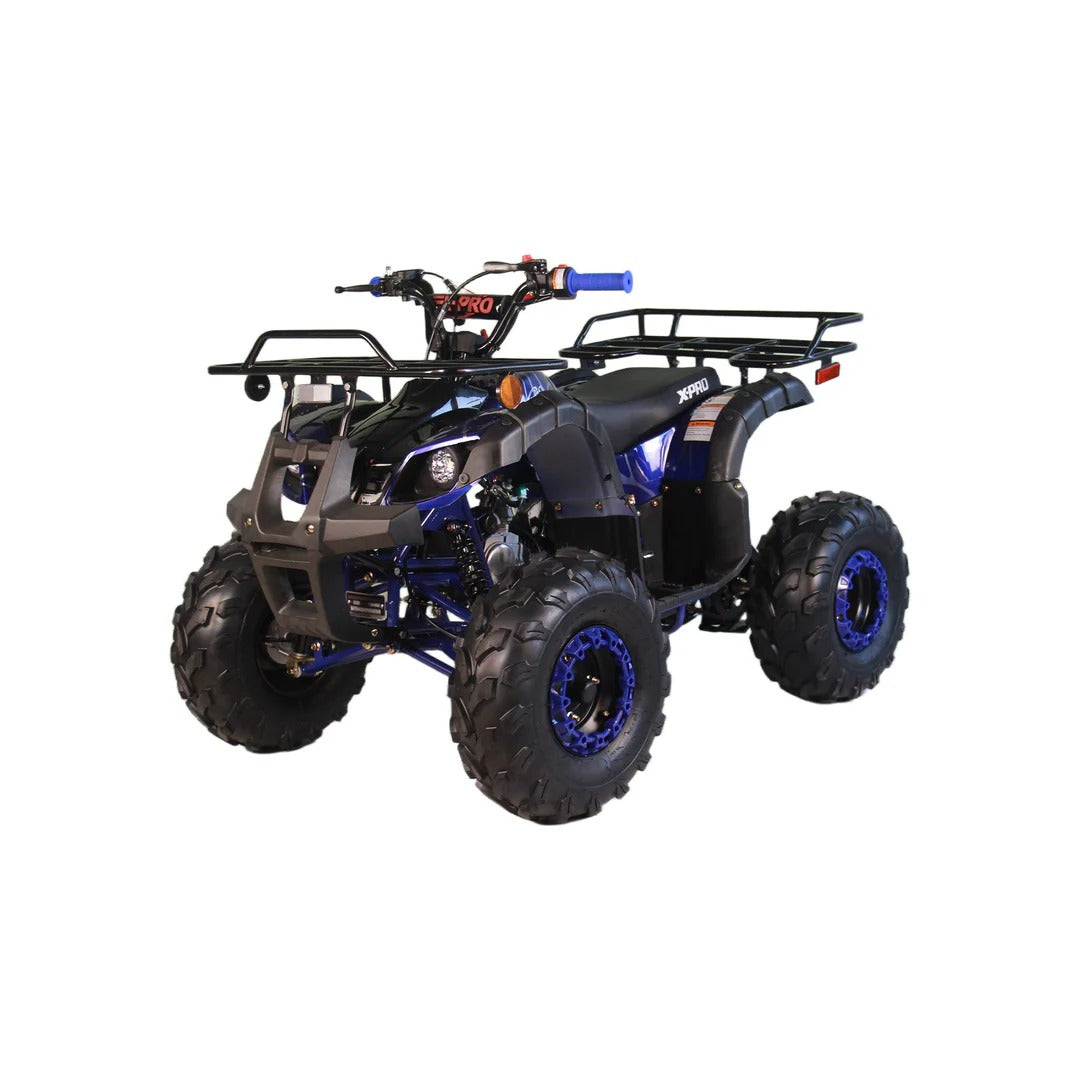

Spider Blue/Blue
-

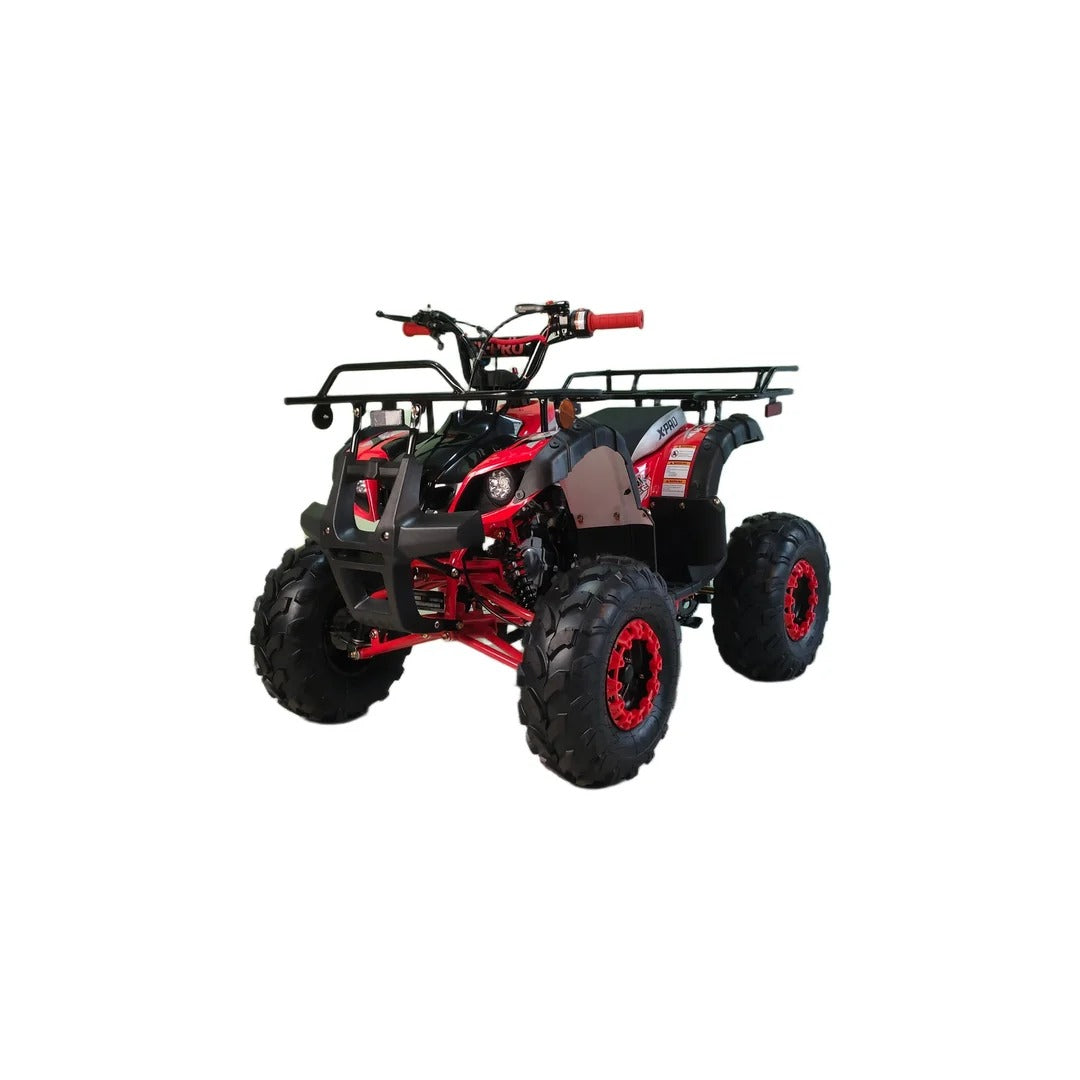

Red/Red
-

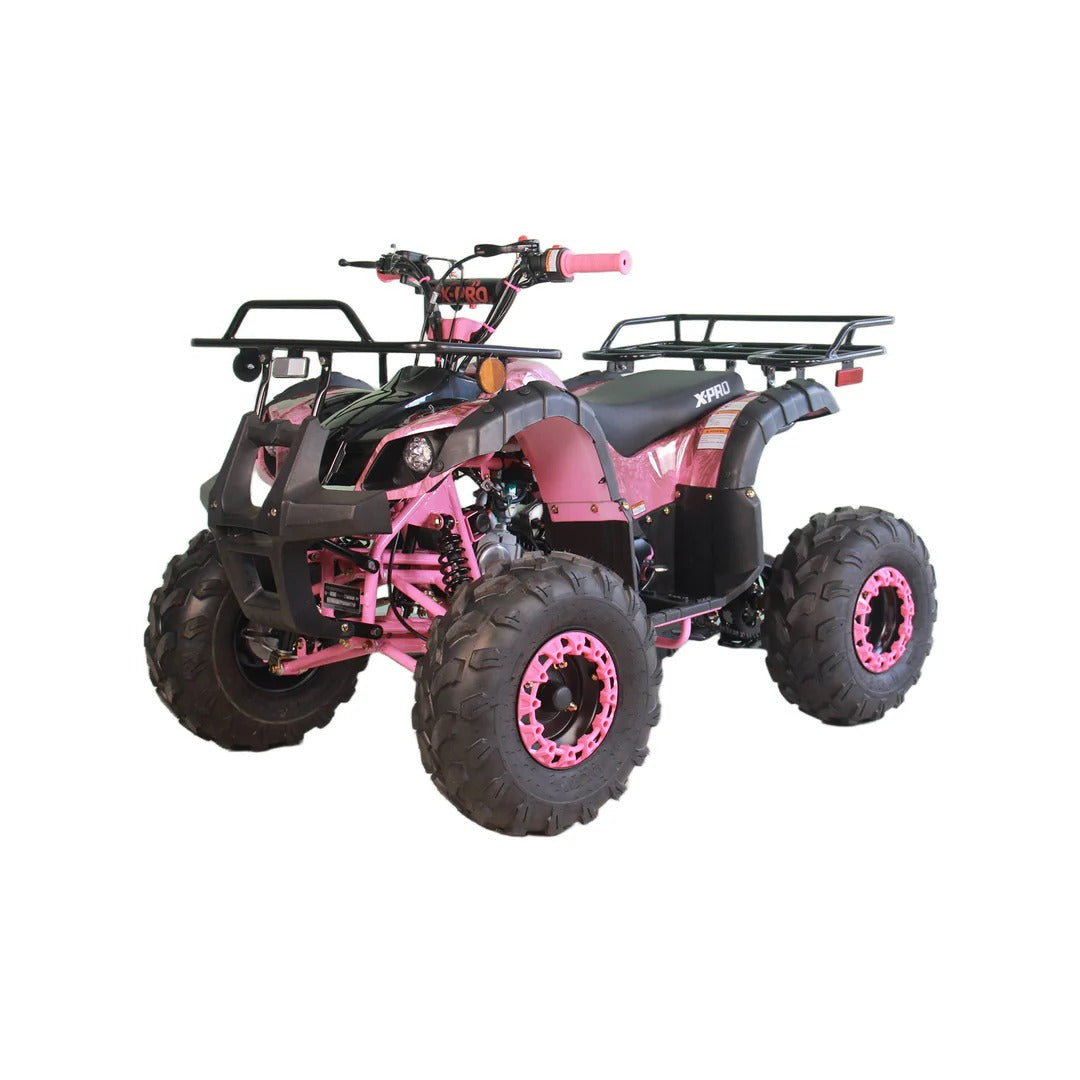

Leaf Pink/Pink
-
Grey/Red
-

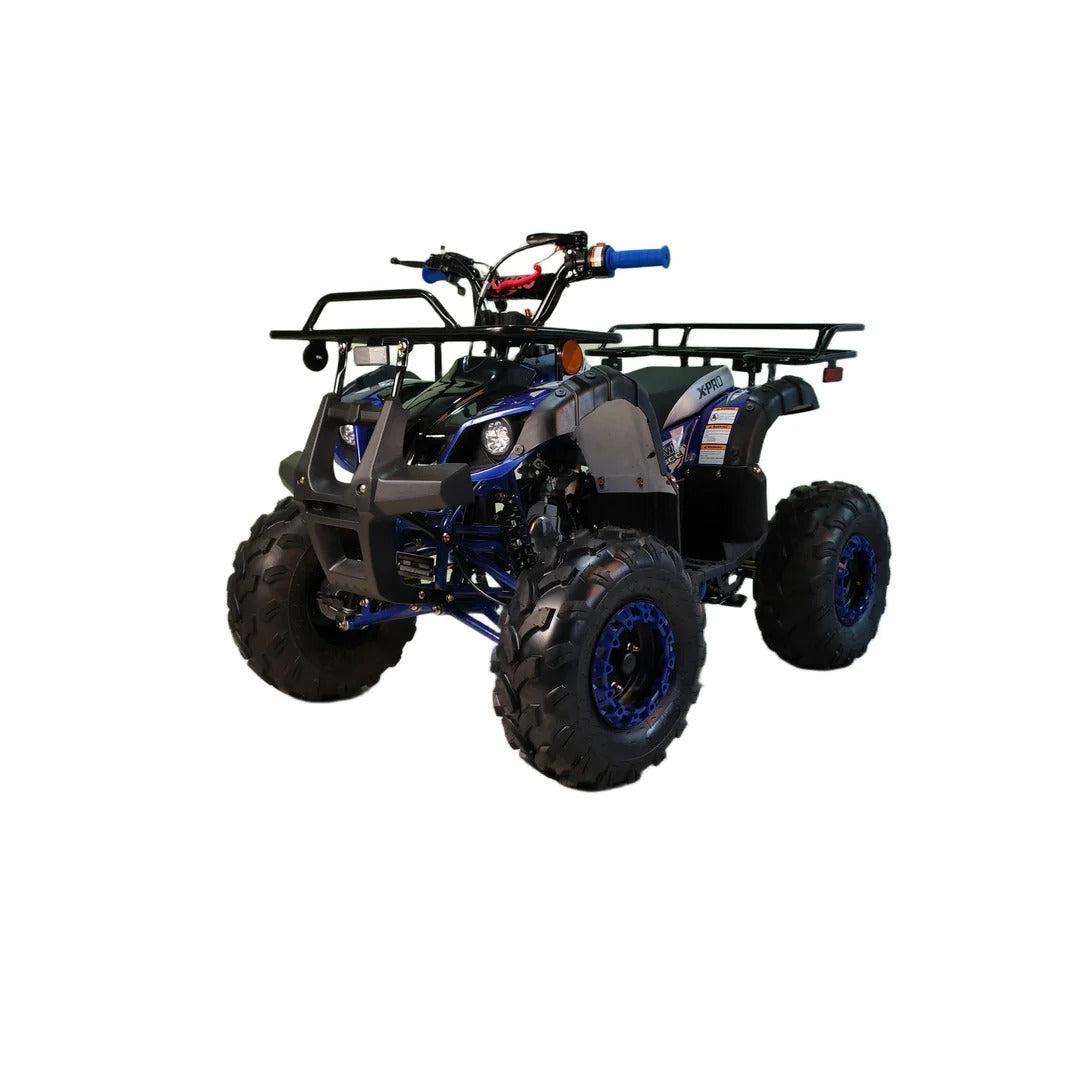

Blue/Blue
📊 FULL TECHNICAL SPECIFICATIONS
| Specification | X-PRO Hawk 125 |
|---|---|
| Model | X-PRO Hawk 125 |
| SKU | ATV-P003 |
| Engine Brand | Guangyu |
| Engine Displacement | 119.6cc |
| Engine Type | Single-cylinder, 4-stroke |
| Cooling | Air cooled |
| Compression Ratio | 9.1:1 |
| Bore × Stroke | 52.4 mm × 55.5 mm |
| Maximum Power | 5.3 kW / 7,500 RPM |
| Approx. Horsepower | 7.1 HP |
| Maximum Torque | 8.0 Nm / 5,500 RPM |
| Transmission | Fully automatic D-N-R |
| Clutch Type | Centrifugal |
| Drive | Chain drive |
| Start System | Electric start |
| Ignition | CDI |
| Fuel System | Carburetor |
| Carburetor | PZ20 |
| Starter Battery | 12V / 5Ah |
| Propulsion Battery | Not applicable — gasoline ATV |
| Charging Time | Not applicable |
| Fuel Type | Gasoline |
| Fuel Octane | 87 |
| Fuel Tank Capacity | 2 L |
| Top Speed | 35+ MPH |
| Front Suspension | Dual A-Arm |
| Rear Suspension | Single Swing Arm |
| Frame | Steel |
| Front Brake | Drum |
| Rear Brake | Hydraulic Disc |
| Wheel Material | Steel rims with trim covers |
| Tire Type | Tubeless knobby |
| Front Tire | 19 × 7-8 |
| Rear Tire | 18 × 9.5-8 |
| Exhaust | Steel |
| Seat Material | Recycled material seat |
| Overall Length | 59.8" |
| Overall Width | 37" |
| Overall Height | 36.2" |
| Seat Height | 27.5" |
| Ground Clearance | 3.54" |
| Wheelbase | 37.8" |
| Net Weight | 229 lbs |
| Gross Weight Including Packaging | 232 lbs |
| Maximum Load Capacity | 198 lbs / 90 kg |
| Package Dimensions | 52" × 31" × 27" |
| EPA Certified | Yes |
| CARB Certified | No |
| Headlight | LED |
| Tail Light | Yes |
| Engine Kill Switch | Yes |
| Speed Limiter | Yes — adjustable throttle governor |
| Remote Control | Yes — engine kill |
| Street Legal | No — off-road only |
| Recommended Age | 13 years and up |
| Recommended Height | 4'10"–6'0" / 147–183 cm |
| Recommended Rider Weight | At or below 180 lbs for safety margin |
| Maximum Load | 198 lbs / 90 kg |
| California | Not for sale or use |
| Frame Warranty | 1 year |
| Parts Warranty | 90 days |
| Battery Warranty | 90 days |
🏁 PERFORMANCE
⚡ ENGINE POWER
119.6cc
5.3 kW at 7,500 RPM
Approximately 7.1 HP.
The Hawk's gasoline engine is a single-cylinder, 4-stroke, air-cooled design.
💪 TORQUE
8.0 Nm at 5,500 RPM
The torque output gives the Hawk useful pulling performance for suitable recreational terrain.
🚀 TOP SPEED
35+ MPH
Actual speed varies according to rider weight, terrain, incline and environmental conditions.
⛽ RANGE
The Hawk is gasoline powered and uses a:
2 L fuel tank
The manufacturer does not publish a fixed miles-per-tank range.
Actual fuel range depends on:
-
Speed
-
Rider weight
-
Terrain
-
Inclines
-
Throttle use
-
Temperature
-
Riding style
⛰️ HILL CLIMBING
The combination of:
5.3 kW
8.0 Nm
119.6cc
and the automatic drivetrain gives the Hawk useful power for appropriate inclines.
The manufacturer does not publish a maximum hill-grade percentage, so no unsupported climbing figure is claimed.
🌲 TERRAIN CAPABILITY
The 19 × 7-8 front and 18 × 9.5-8 rear tubeless knobby tires, dual A-arm front suspension, single swing-arm rear suspension, 3.54-inch ground clearance and wide 37-inch stance make the Hawk suited to appropriate off-road terrain.
Use it on private land, farms, backyards and designated OHV areas.
🆚 X-PRO HAWK 125 VS COMPETITORS
| Specification | X-PRO Hawk 125 | Coolster ATV-3125F2 | Coolster ATV-3125CX-2 |
|---|---|---|---|
| Engine Displacement | 119.6cc | 125cc | 120cc |
| Engine | Single-cylinder, 4-stroke, air-cooled | Single-cylinder, 4-stroke, air-cooled | Single-cylinder, 4-stroke, air-cooled |
| Maximum Power | 5.3 kW / 7,500 RPM | 5.5 kW / 8,500 ± 500 RPM | 5.5 kW / 8,500 ± 500 RPM |
| Maximum Torque | 8.0 Nm / 5,500 RPM | 6.9 Nm / 6,500 ± 500 RPM | 6.9 Nm / 6,500 ± 500 RPM |
| Transmission | Automatic D-N-R | Fully automatic | Fully automatic |
| Drive | Chain | Chain, rear-wheel drive | Chain, rear-wheel drive |
| Start | Electric | Electric | Electric |
| Starter Battery | 12V / 5Ah | 12V / 5Ah | 12V / 5Ah |
| Top Speed | 35+ MPH | Not published | Not published |
| Fuel Tank | 2 L | 2.4 L | 2.06 L |
| Front Brake | Drum | Hydraulic disc | Hydraulic disc |
| Rear Brake | Hydraulic disc | Hydraulic disc | Hydraulic disc |
| Front Tire | 19 × 7-8 | 19 × 7-8 | 19 × 7.00-8 |
| Rear Tire | 18 × 9.5-8 | 18 × 9.5-8 | 18 × 9.50-8 |
| Front Suspension | Dual A-Arm | Not published in listed specifications | Durable shocks / greater spring suspension |
| Rear Suspension | Single Swing Arm | Not published in listed specifications | Durable shocks |
| Frame | Steel | Not specified in listed specifications | Not specified |
| Max Load | 198 lbs | 165 lbs | 165 lbs |
| Seat Height | 27.5" | 28.54" | 27.95" |
| Ground Clearance | 3.54" | 5.31" | 5.31" |
| Wheelbase | 37.8" | 39.76" | 39.37" |
| Dimensions | 59.8" × 37" × 36.2" | 62.2" × 38.8" × 39.8" | 60.2" × 40.6" × 39.8" |
| EPA | Yes | Not stated in listed specification | Not stated |
| Remote Kill | Yes | Not stated | Not stated |
| Speed Limiter | Yes | Not stated | Not stated |
| Engine Kill Switch | Yes | Not stated | Not stated |
| LED Headlight | Yes | Not stated | Not stated |
| Reverse | Yes | Yes | Yes |
The Coolster ATV-3125F2 lists a 125cc single-cylinder 4-stroke engine, 5.5 kW maximum power, 6.9 Nm torque, fully automatic transmission, 12V/5Ah battery, 19 × 7-8 / 18 × 9.5-8 tires, hydraulic disc brakes, 2.4L fuel tank and 165 lb maximum capacity.
The Coolster ATV-3125CX-2 lists a 120cc engine, 5.5 kW maximum power, 6.9 Nm torque, 12V/5Ah starter battery, chain rear-wheel drive, 19 × 7.00-8 / 18 × 9.50-8 tires, 2.06L fuel tank, 165 lb maximum capacity, 1,000mm wheelbase and 135mm ground clearance.
🦅 Where the Hawk 125 stands out
The Hawk combines:
5.3 kW / 7,500 RPM
8.0 Nm / 5,500 RPM
119.6cc
Automatic D-N-R
35+ MPH
198 lb maximum load
19 × 7-8 front tire
18 × 9.5-8 rear tire
Dual A-arm front suspension
3.54" ground clearance
37" overall width
Remote engine kill
Adjustable speed limiter
Handlebar engine kill switch
LED headlight
That makes the Hawk particularly attractive to families looking for a larger youth ATV with more parental-control features and a higher published load capacity.
👨👩👦 BUILT FOR GROWING RIDERS
The Hawk is designed for:
13 YEARS AND UP
Recommended height:
4'10"–6'0"
Maximum load:
198 LBS / 90 KG
The manufacturer recommends rider weight at or below 180 lbs for additional safety margin.
Riders under 16 must have parent/guardian supervision at all times.
Always match the ATV to the rider's physical size, skill and experience—not age alone.
🛡️ TRUST & U.S. SUPPORT
🔐 SECURE CHECKOUT
Complete your order through a secure checkout designed to protect payment information.
🇺🇸 20+ YEARS IN U.S. POWERSPORTS
X-PRO states that its parent company has operated in the U.S. powersports market for 20+ years as a licensed motorcycle dealer.
🏭 U.S. WAREHOUSES
X-PRO operates company-owned warehouses in:
California
Texas
🔧 OEM PARTS SUPPORT
OEM replacement parts are stocked in the U.S. warehouses for ongoing service and maintenance.
🔍 QUALITY-CHECKED INVENTORY
X-PRO states that vehicles are stored, quality-checked and shipped through its U.S. warehouse operations.
Every ATV should still receive a complete pre-ride inspection after delivery and assembly.
🛠️ MANUFACTURER WARRANTY
The Hawk 125 includes:
1-Year Frame Warranty
Against qualifying structural manufacturing defects.
90-Day Parts Warranty
Against qualifying manufacturing defects.
90-Day Battery Warranty
Against qualifying manufacturing defects.
Normal wear items, accidents, misuse and unauthorized modifications are excluded.
📦 SHIPPING & DELIVERY
The Hawk ships via:
LTL FREIGHT
The carrier contacts the customer to schedule delivery.
Because this is a large freight shipment:
-
Keep your phone number and email current.
-
Answer carrier calls.
-
Make sure the delivery location is accessible.
-
Inspect the ATV before signing the delivery receipt.
-
Photograph any visible shipping damage.
-
Note damage on the delivery receipt.
The manufacturer states that missed delivery attempts can result in return-freight charges, so delivery coordination is important.
🔧 ASSEMBLY
The Hawk arrives approximately:
85% PRE-ASSEMBLED
The remaining installation includes:
-
4 wheels
-
Handlebar
-
Front fender
-
Front bumper
-
Rear cargo rack
-
Rear shock absorber
-
2 footrests
-
Battery connection
Approximate assembly time:
45–60 MINUTES
for someone with basic mechanical ability and common hand tools.
Professional mechanic assembly is strongly recommended if you are not comfortable installing wheels, suspension components or controls.
🛢️ FIRST-RIDE MAINTENANCE
Before the first ride:
🛢️ CHANGE THE ENGINE OIL
The manufacturer specifies changing the factory-fill oil before riding.
⛽ USE 87+ OCTANE FUEL
Use fresh gasoline of the recommended octane.
🔩 CHECK AND TIGHTEN HARDWARE
Inspect all critical bolts and apply thread-locker where specified.
🛞 CHECK THE TIRES
Verify tire pressure and wheel security.
🛑 CHECK BOTH BRAKES
Test the front drum and rear hydraulic disc before riding.
⏱️ COMPLETE THE BREAK-IN
A 3–5 hour break-in period is recommended.
During break-in, avoid sustained full-throttle operation.
After break-in, change the engine oil and re-check/re-tighten hardware.
❓ FREQUENTLY ASKED QUESTIONS
⛽ Does the Hawk need charging?
No.
The Hawk is powered by a 119.6cc gasoline engine.
The 12V / 5Ah battery is a starter battery, not a propulsion battery.
There is therefore no EV charging time.
🚀 How fast does the Hawk 125 go?
The advertised maximum is:
35+ MPH
Actual speed depends on rider weight, terrain, incline and conditions.
⛽ What is the fuel capacity?
The fuel tank holds:
2 L
The recommended fuel is:
87-octane gasoline
🔋 What is the range?
X-PRO does not publish a fixed mileage range.
Fuel range depends on:
-
Throttle use
-
Speed
-
Rider weight
-
Terrain
-
Inclines
-
Temperature
-
Riding style
⚡ How powerful is the engine?
The Hawk uses a:
119.6cc single-cylinder 4-stroke engine
producing:
5.3 kW at 7,500 RPM
and:
8.0 Nm at 5,500 RPM
🔄 Does it have reverse?
Yes.
The transmission is:
Automatic D-N-R
Drive, Neutral and Reverse.
🛑 What brakes does it use?
Front: Drum
Rear: Hydraulic Disc
🛞 What tire sizes does it use?
Front: 19 × 7-8
Rear: 18 × 9.5-8
Both are tubeless knobby tires.
⛰️ Is it good for hills?
The 5.3 kW engine and 8.0 Nm torque provide useful power for suitable inclines.
However, X-PRO does not publish a maximum hill-grade percentage.
Riders should avoid terrain beyond their experience and the ATV's capabilities.
🌲 What terrain can it handle?
The Hawk is intended for:
-
Private property
-
Farms
-
Backyards
-
Designated OHV parks
-
Suitable dirt and gravel terrain
-
Moderate uneven terrain
It is not a technical mountain ATV.
🧍 What rider height is recommended?
4'10"–6'0"
or:
147–183 cm
The seat height is 27.5 inches.
Actual fit depends on inseam and rider proportions.
⚖️ What is the maximum weight?
198 lbs / 90 kg
For additional safety margin, X-PRO recommends rider weight at or below 180 lbs.
👦 What age is it recommended for?
The manufacturer recommends:
13 years and up
Riders under 16 must have parent/guardian supervision at all times.
🌧️ Is it waterproof?
No IP/waterproof rating is published for the Hawk.
It should not be advertised as waterproof or submersible.
The manufacturer also advises against using high-pressure washers around engine or electrical components.
🪪 Is the Hawk street legal?
No.
The Hawk 125 is:
OFF-ROAD ONLY
It cannot be registered or operated on public roads, highways or public property.
🇺🇸 Can it be sold or used in California?
No.
The Hawk is EPA certified but not CARB certified and is not for sale or use in California.
🔧 Does it require assembly?
Yes.
The ATV ships approximately 85% pre-assembled.
Typical assembly takes approximately 45–60 minutes with basic mechanical ability and common hand tools.
📦 WHAT'S IN THE BOX?
The manufacturer lists:
-
X-PRO Hawk 125 ATV
-
Vehicle body — approximately 85% pre-assembled
-
4 wheels — 2 front + 2 rear
-
Handlebar
-
Front fender
-
Front bumper
-
Rear cargo rack
-
Rear shock absorber
-
2 footrests
-
12V / 5Ah starter battery
-
Tool kit
-
Owner's manual
⚠️ HELMET NOT INCLUDED
A properly fitted DOT-certified helmet and appropriate protective equipment should be worn.
Recommended equipment includes:
-
DOT-certified helmet
-
Eye protection
-
Gloves
-
Long sleeves
-
Long pants
-
Sturdy boots
🦅 THE HAWK 125
BIGGER THAN A BEGINNER QUAD. SIMPLE ENOUGH TO CONTROL.
The Hawk 125 brings together the features that matter when a rider moves into a larger youth ATV:
⚡ 119.6cc 4-STROKE ENGINE
🔥 5.3 kW @ 7,500 RPM
💪 8.0 Nm @ 5,500 RPM
🚀 35+ MPH TOP SPEED
🔄 AUTOMATIC D-N-R
🔘 ELECTRIC START
🛞 19 × 7-8 FRONT / 18 × 9.5-8 REAR
🏁 DUAL A-ARM FRONT SUSPENSION
🛑 REAR HYDRAULIC DISC BRAKE
🧱 STEEL FRAME
📏 37" WIDE STANCE
🪑 27.5" SEAT HEIGHT
⚖️ 198 LB MAXIMUM LOAD
📡 REMOTE ENGINE KILL
🎛️ ADJUSTABLE SPEED LIMITER
🛑 HANDLEBAR ENGINE KILL SWITCH
💡 LED HEADLIGHT + TAIL LIGHT
🏁 READY FOR THE NEXT RIDE?
The X-PRO Hawk 125 is designed for riders who need more than a small beginner quad but still want the simplicity of an automatic transmission.
With 5.3 kW of engine power, 8.0 Nm of torque, 35+ MPH advertised top speed, automatic Drive-Neutral-Reverse, 19 × 7-8 and 18 × 9.5-8 tires, dual A-arm front suspension and a 198 lb maximum load, the Hawk delivers a larger, more capable off-road platform.
Choose the X-PRO Hawk 125 and move up to a bigger ATV experience.
More power. More stability. More control. Built for the next stage of riding.
