⚡ EBMX X-9000 E-Ride Pro SS 2.0 Harness, Mounting Kit & Bashguard V2
Built for serious E-Ride Pro upgrades.
Take your E-Ride Pro SS 2.0 to the next level with the EBMX X-9000 installation hardware designed specifically for bikes using the original battery connector.
This V2 kit combines a purpose-built wiring harness, precision mounting hardware and a protective bashguard to create a clean installation platform for the EBMX X-9000 controller.
⚠️ Compatibility is critical: This version is designed for the E-Ride Pro SS 2.0 with the original battery connector. It does not fit the E-Ride Pro SS 3.0, E-Ride Pro SR, or bikes using the updated V3 battery connector.
🔥 Why Upgrade Your E-Ride Pro?
The EBMX X-9000 is designed for riders building a higher-performance E-Ride Pro setup where controller capability, tuning flexibility and reliable installation matter.
The V2 installation kit helps integrate the X-9000 cleanly into the E-Ride Pro SS 2.0 platform without relying on improvised mounting or wiring solutions.
Designed for:
-
🏁 Performance-focused builds
-
🛠️ Custom E-Ride Pro upgrades
-
⚡ High-output controller installations
-
🌲 Off-road and trail builds
-
🔧 Riders who want a cleaner, purpose-built installation
-
🎛️ EBMX X-9000 controller configurations
🚀 X-9000 Controller Performance
The installation kit is designed around the EBMX X-9000 controller.
The X-9000 V2 platform supports:
⚡ Up to 40 kW Peak Input Power
The X-9000 technical specification lists 40 kW peak input power and up to 35 kW peak output power.
🔋 Up to 500 A Battery Current
The controller supports up to 500 A maximum battery current, subject to the battery, motor and system configuration.
🌀 Up to 900–1000 A Phase Current
EBMX documentation lists 900 A maximum phase current in its earlier technical specification, while later V2 documentation lists 1000 A maximum phase current.
🌡️ High-Temperature Operating Range
Operating temperature is specified from -25°C to 80°C.
💧 IP67 Controller Protection
The X-9000 controller casing is specified as IP67 rated.
🎛️ FOC Motor Control
The controller uses Field-Oriented Control (FOC) for precise motor control and tuning.

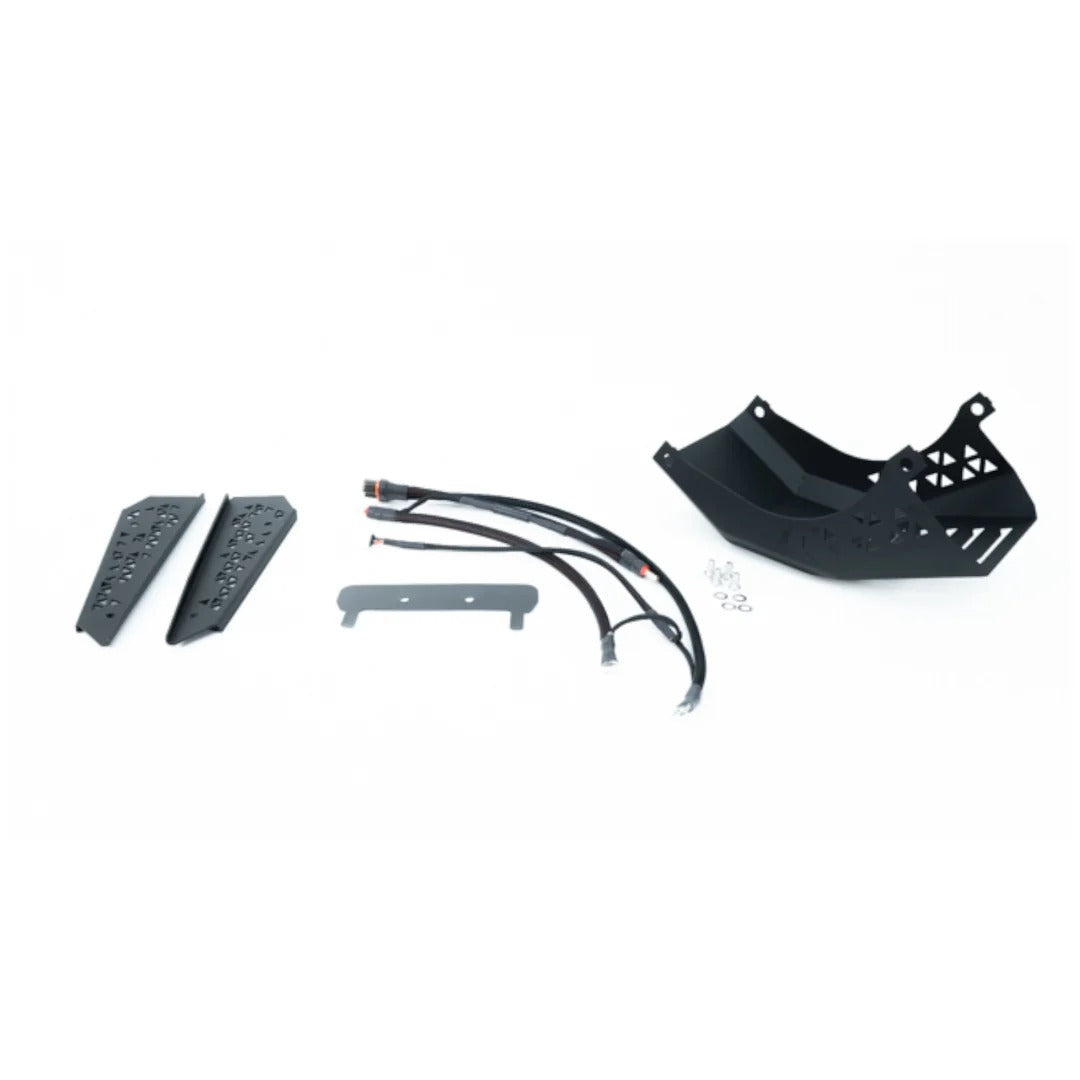

🧰 What's Included
The V2 E-Ride Pro installation kit includes:
-
🔌 Custom E-Ride Pro wiring harness
-
🔩 Controller mounting hardware
-
🛡️ Bashguard
-
🧰 Installation hardware required for the kit
Important
The supplier's product description identifies this product as a harness, mounting kit and bashguard. EBMX's official V2 installation-kit documentation specifies the harness/mounting kit as excluding the X-9000 controller.
If you are purchasing specifically for an X-9000 controller, verify the controller is being purchased separately unless your seller's package explicitly states otherwise.

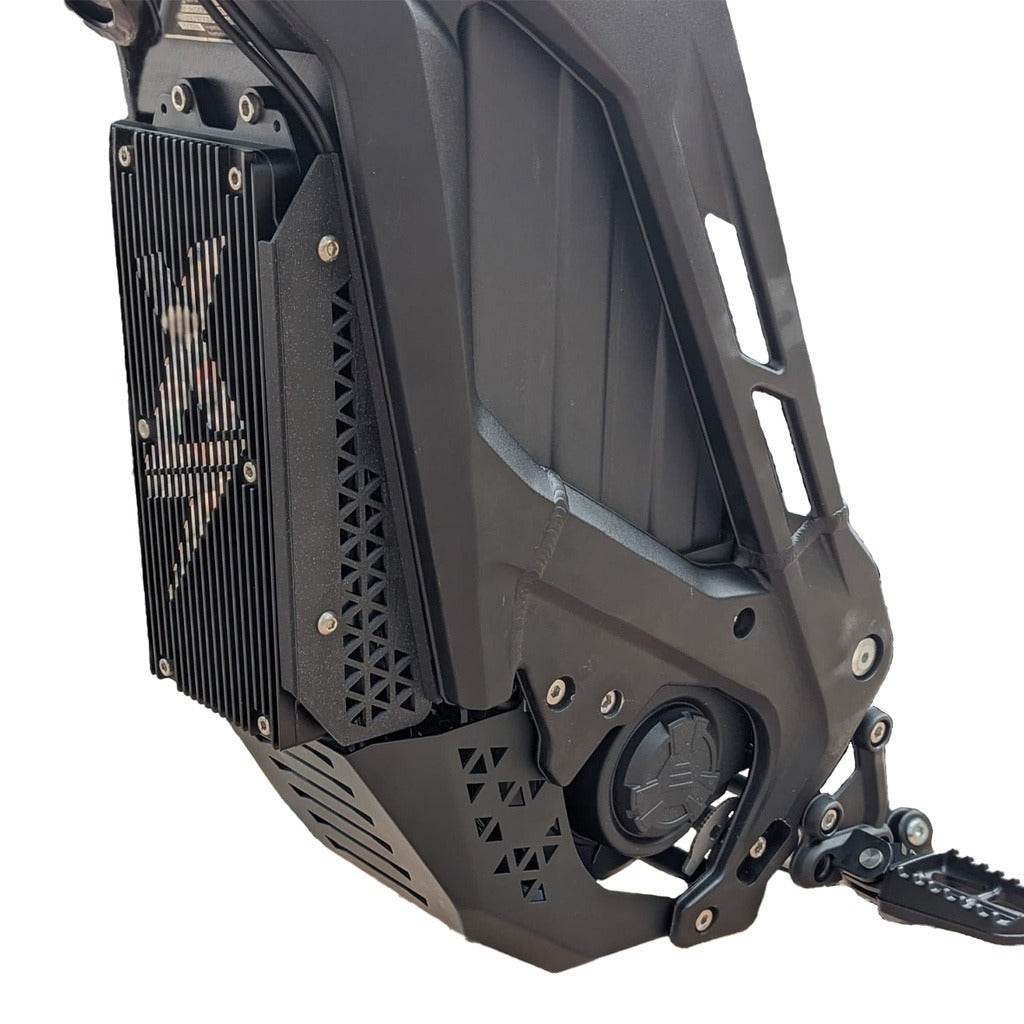

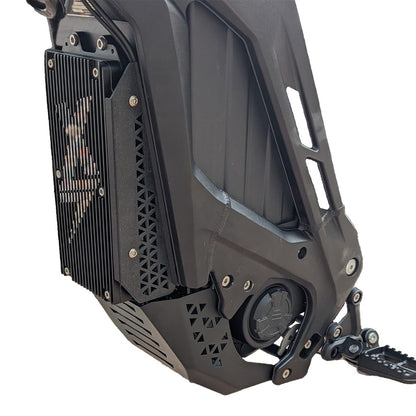

🛡️ Purpose-Built Bashguard
Off-road riding exposes components to rocks, dirt and impacts.
The included bashguard provides additional physical protection around the controller installation area while keeping the upgraded system properly integrated into the bike.
Why it matters:
-
🪨 Helps protect against trail debris
-
🔧 Designed around the E-Ride Pro installation
-
📐 Provides a purpose-built mounting solution
-
🏁 Better suited to aggressive off-road builds than improvised mounting

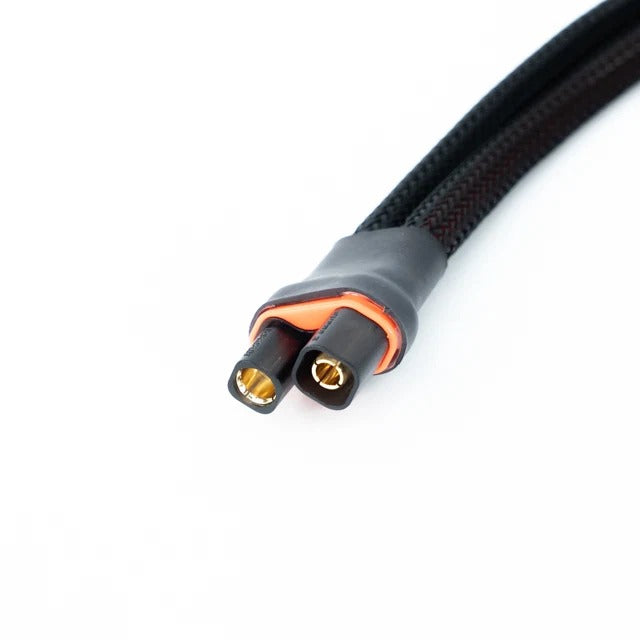

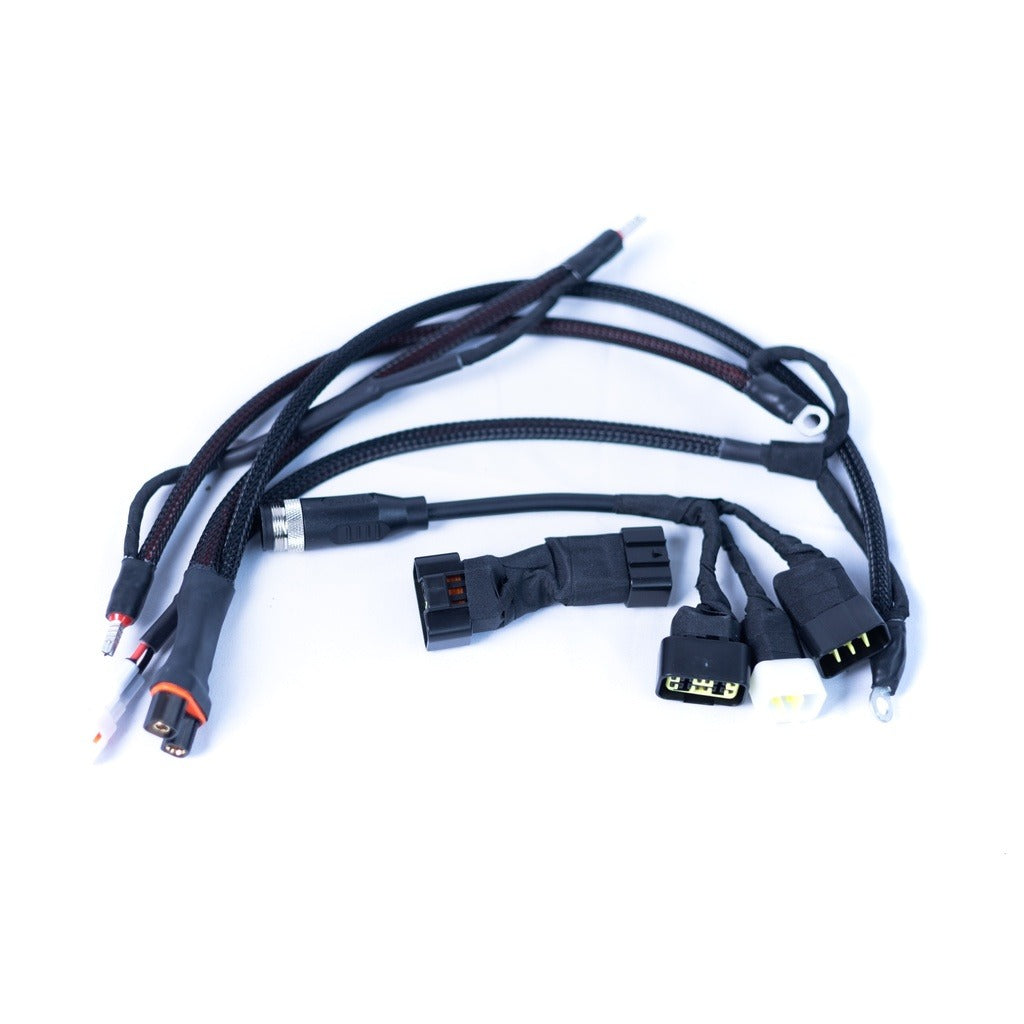

🔌 Custom E-Ride Pro Harness
A high-output controller installation needs more than simply bolting a controller onto the bike.
The custom harness is designed specifically for the E-Ride Pro platform and the X-9000 installation.
This helps provide:
-
Cleaner wiring
-
Correct platform integration
-
A more organized installation
-
Better fitment than generic wiring solutions
🔩 Precision Mounting Hardware
The mounting system is designed to position the X-9000 controller correctly on the E-Ride Pro platform.
Instead of fabricating your own brackets, the kit provides purpose-built mounting hardware for the application.
🏍️ E-Ride Pro SS 2.0 Reference Specifications
The following numbers describe the E-Ride Pro SS 2.0 vehicle that this kit is designed to upgrade. They are not specifications of the harness or bashguard itself.
| Specification | E-Ride Pro SS 2.0 |
|---|---|
| Motor type | PMSM |
| Motor power | 5,000 W rated / 12,000 W peak |
| Motor peak torque | 55 Nm |
| Rear-wheel torque | 471.35 Nm with 58T sprocket |
| Motor cooling | Air-cooled |
| Controller type | FOC |
| Battery | 72 V 40 Ah |
| Battery energy | 2,880 Wh |
| Battery cells | Samsung 21700 lithium-ion |
| Battery type | Swappable lithium |
| Top speed | 60 MPH / ≥96 km/h |
| 0–30 MPH | 2.36 seconds |
| Range | ≥50 miles @ 25 MPH / ≥90 miles @ 15 MPH |
| Charging time | 2 hours, 20–90% |
| Front wheel | 19 in |
| Rear wheel | 18 in |
| Front tire | 80/100-19 |
| Rear tire | 100/90-18 |
| Suspension | Adjustable sport suspension |
| Braking | Regenerative braking |
| Seat height | 830 mm / 32.68 in |
| Wheelbase | 1,260 mm |
| Ground clearance | 280 mm |
| Handlebar length | 780 mm |
| Vehicle weight | 139 lb / 63 kg |
| Weight limit | 300 lb |
⚙️ X-9000 Controller Technical Specifications
| Controller Specification | EBMX X-9000 V2 |
|---|---|
| Control method | FOC |
| Firmware | VESC-based + custom EBMX firmware |
| Input voltage range | 40–100 V |
| Working voltage range | 48–82 V |
| Maximum phase current | Up to 1,000 A |
| Maximum battery current | 500 A |
| Peak input power | 40 kW |
| Peak output power | 35 kW |
| Continuous output — air cooled | 15 kW |
| Continuous output — water cooled | 20 kW |
| Maximum efficiency | >95% |
| Operating temperature | -25°C to 80°C |
| Protection rating | IP67 |
| Control technology | Field-Oriented Control |
| Heat sink options | Air cooled / water cooled |
| DC-DC converter | 12 V, 5 A |
| Programmable 12 V outputs | 4 |
| Communications plug | 16-pin |
| Auxiliary plug | 12-pin |
⚠️ Maximum controller output depends on the motor, battery, cooling system and complete electrical setup. A controller rated for 35 kW does not mean a stock E-Ride Pro automatically produces 35 kW.
🏔️ Performance & Terrain
The E-Ride Pro SS 2.0 platform uses a 5,000 W rated / 12,000 W peak motor, a 72 V 40 Ah / 2,880 Wh Samsung battery, and has a stated top speed of 60 MPH.
With the X-9000 controller, the upgrade platform provides substantially more controller headroom than a basic stock-controller configuration.
Trail Capability
The E-Ride Pro SS 2.0 is built for off-road riding with:
-
🏔️ Adjustable sport suspension
-
🪨 19-inch front / 18-inch rear wheels
-
🌲 80/100-19 front tire
-
🌲 100/90-18 rear tire
-
⚡ 12,000 W peak motor output
-
🔋 72 V 40 Ah battery
-
🌀 55 Nm motor peak torque
-
🔄 471.35 Nm rear-wheel torque with 58T sprocket
-
🛞 280 mm ground clearance
Actual hill-climbing performance depends on rider weight, terrain, battery state of charge, gearing, motor temperature, controller settings and available traction.
🆚 Controller Comparison
| Specification | EBMX X-9000 V2 | EBMX X-9000 V3 | TORP TC1000 2.0 |
|---|---|---|---|
| Maximum advertised power | 40 kW input / 35 kW output | 50 kW rated | 50 kW max |
| Maximum battery current | 500 A | Not listed in current V3 spec | 700 A |
| Phase current | Up to 1,000 A | 1,000 A continuous / 1,600 A peak | 1,000 A |
| Input voltage | 40–100 V | 40–120 V | 60–80 V nominal |
| Maximum fully charged voltage | 100 V input specification | Up to 120 V input specification | 92.4 V |
| Control | FOC | FOC | FOC |
| Firmware | VESC-based EBMX | EBMX VESC-based | TORP proprietary |
| IP rating | IP67 | IP67 | IP67 |
| Efficiency | >95% | Not specified on current product page | Up to 99% |
| Bluetooth/app | Available depending on configuration | X-Series App | Bluetooth + mobile app |
| Wheelie/lift control | Not the primary V2 feature set | Integrated IMU | Integrated wheelie-control hardware |
| Warranty | Verify seller/EBMX terms | 2 years | 2 years |
| E-Ride Pro SS 2.0 old-battery fitment | This V2 kit | Requires appropriate V3 fit kit | Different platform/application |
Which Makes Sense?
EBMX X-9000 V2: Best suited when you specifically need an X-9000 installation solution for an E-Ride Pro SS 2.0 with the original battery connector.
EBMX X-9000 V3: Better suited to newer X-9000 V3 builds and provides a higher published power/current ceiling.
TORP TC1000 2.0: A strong competing controller platform with 700 A battery current, 1,000 A phase current and up to 50 kW advertised maximum power, but it is designed around different bike platforms and should not be treated as a direct replacement for this E-Ride Pro-specific installation kit.
📏 Important Fitment Information
✅ Designed For
E-Ride Pro SS 2.0 with the original battery connector
❌ Not Designed For
-
E-Ride Pro SS 3.0
-
E-Ride Pro SR
-
E-Ride Pro bikes using the updated V3 battery connector
Before ordering, confirm the connector on your bike rather than relying only on the model year.
🔧 Installation
This is an upgrade/installation component, not a complete ready-to-ride vehicle.
Installation involves fitting the harness, controller mounting hardware and bashguard to the E-Ride Pro platform and connecting the compatible X-9000 controller.
For high-current electrical modifications, professional installation is recommended if you are not experienced with high-voltage electric motorcycle systems.
🔐 Trust & Buying With Confidence
Secure Checkout
Use the seller's secure online checkout and review the final shipping cost before placing your order.
Shipping
The supplied product page states that nationwide freight shipping is available, with the quoted freight cost depending on ZIP code.
Compatibility Support
Because E-Ride Pro wiring and battery connectors have changed between versions, verify your battery connector before ordering.
Quality-Focused Fitment
This is a purpose-built E-Ride Pro installation solution rather than a generic controller bracket and wiring setup.
Warranty
No specific warranty term is stated on the supplied Charged Powersports product page. Warranty coverage should therefore be confirmed with the seller before purchase.
❓ Frequently Asked Questions
1. Does this kit include the EBMX X-9000 controller?
The product is described as a harness, mounting kit and bashguard for the E-Ride Pro SS 2.0. EBMX's official V2 installation-kit documentation describes the harness and mounting kit as excluding the controller, so the controller should be treated as separate unless your seller explicitly confirms otherwise.
2. Which E-Ride Pro does this fit?
This V2 version is designed for the E-Ride Pro SS 2.0 using the original battery connector.
3. Will it fit the E-Ride Pro SS 3.0?
No. The supplied product page specifically states that it does not fit the E-Ride Pro SS 3.0.
4. Will it fit the E-Ride Pro SR?
No. This version is not designed for the E-Ride Pro SR.
5. What battery does the E-Ride Pro SS 2.0 use?
The SS 2.0 uses a 72 V 40 Ah / 2,880 Wh Samsung swappable lithium battery.
6. How fast is the E-Ride Pro SS 2.0?
Published E-Ride Pro specifications list a top speed of 60 MPH / 96 km/h and 0–30 MPH in 2.36 seconds.
7. What range can the E-Ride Pro SS 2.0 achieve?
Published specifications state 50+ miles at 25 MPH and 90+ miles at 15 MPH, with actual range varying according to speed, terrain, rider weight and riding conditions.
8. How long does charging take?
The published specification gives approximately 2 hours from 20% to 90%.
9. Is the X-9000 waterproof?
The X-9000 controller casing is IP67 rated. That rating should not be interpreted as making the entire modified motorcycle or wiring system suitable for prolonged submersion.
10. Can I ride through water?
Avoid prolonged submersion. High-voltage electrical connections should be installed and protected correctly, and water exposure should follow the controller and vehicle manufacturer's guidance.
11. How much torque does the E-Ride Pro SS 2.0 produce?
The published E-Ride Pro manual specifies 55 Nm peak motor torque and 471.35 Nm rear-wheel torque with the 58T sprocket.
12. Does the controller automatically make the bike produce 35 kW?
No. 35 kW is the X-9000's published peak output capability, not the guaranteed output of an E-Ride Pro SS 2.0. Actual output depends on the battery, motor, cooling, wiring, settings and other components.
📦 What's In The Box
-
EBMX X-9000 E-Ride Pro V2 harness
-
E-Ride Pro controller mounting hardware
-
Bashguard
-
Associated installation hardware
X-9000 controller: Not listed as included in the supplier's description; EBMX's V2 harness/mounting documentation specifies that the controller is excluded.
🏁 Upgrade Your E-Ride Pro The Right Way
If you're building an E-Ride Pro SS 2.0 with the original battery connector around an EBMX X-9000, the right installation hardware matters just as much as the controller itself.
The EBMX V2 harness, mounting kit and bashguard provide a purpose-built foundation for integrating the X-9000 into the E-Ride Pro platform while keeping the installation clean, secure and properly protected.
Choose the correct version for your battery connector before ordering.
