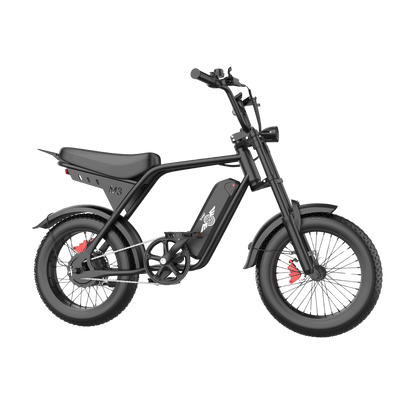

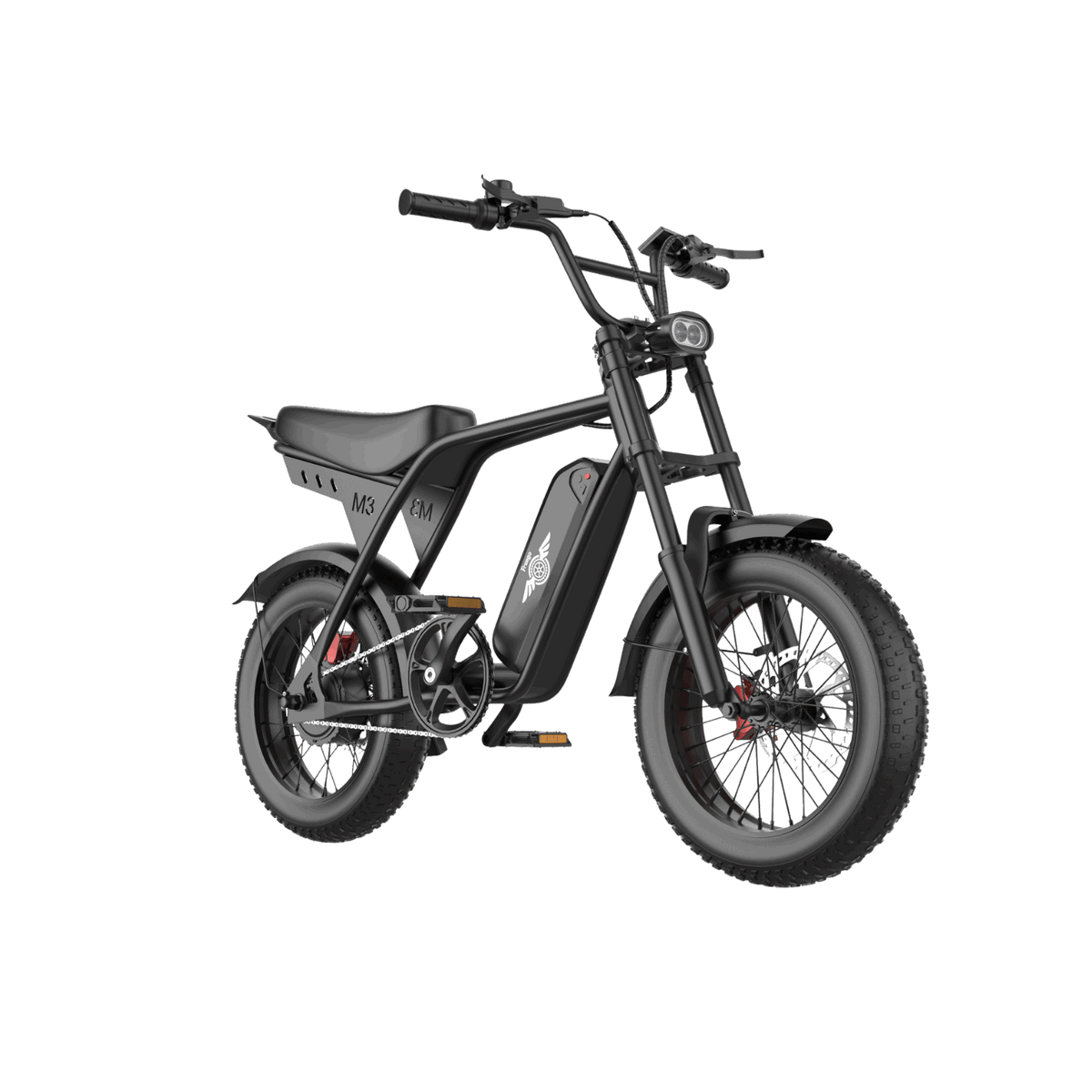

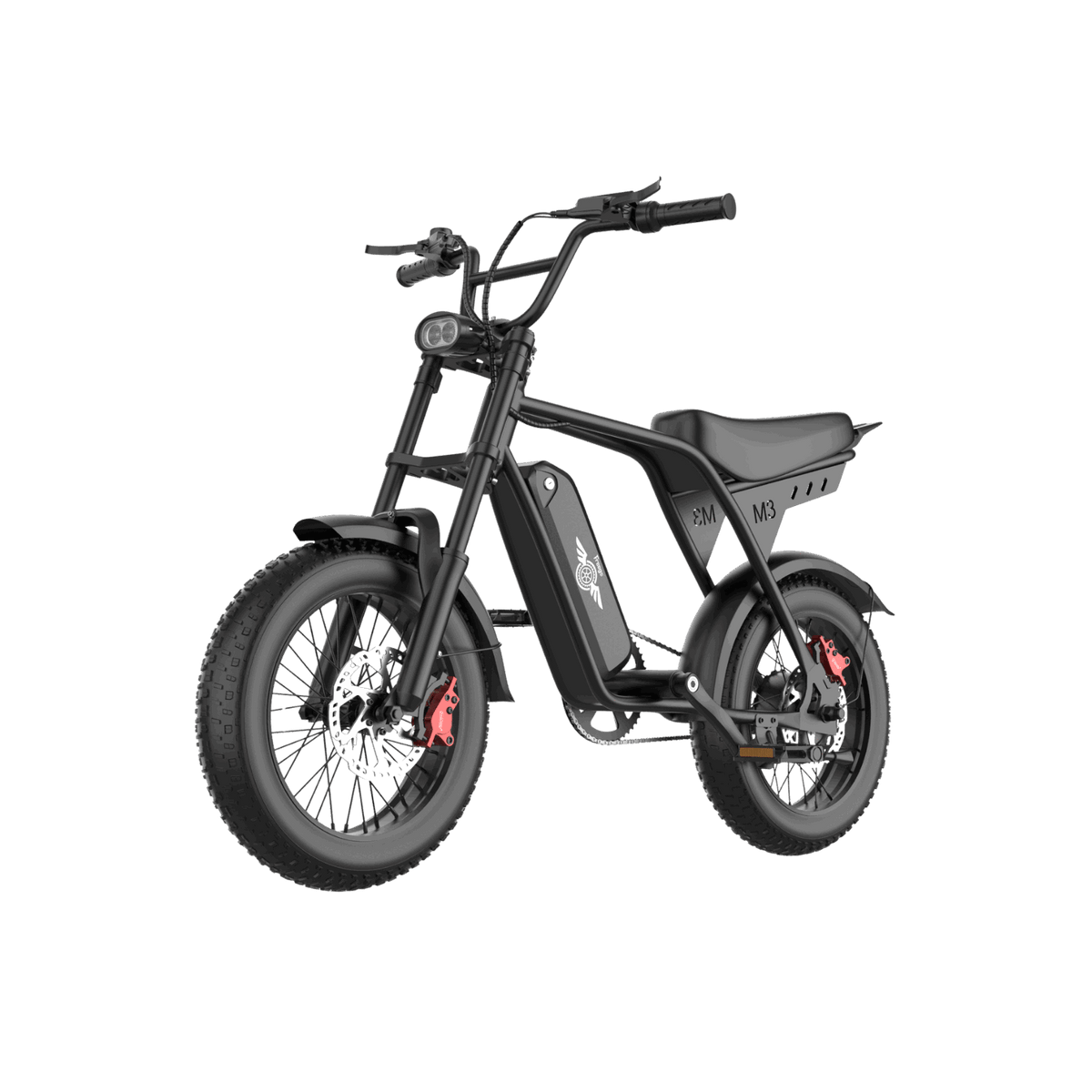

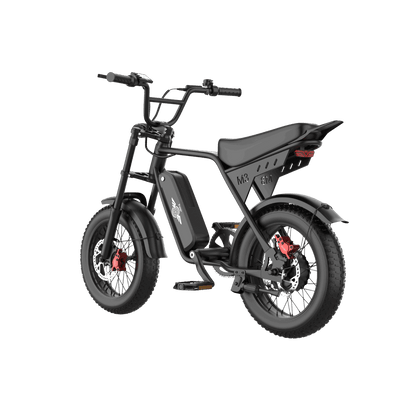

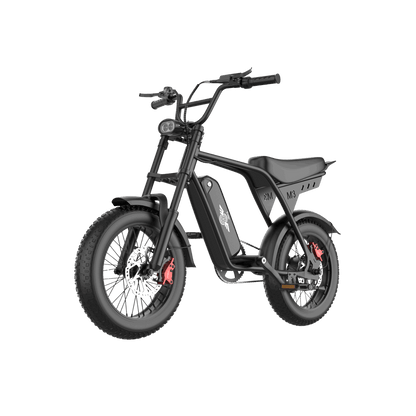

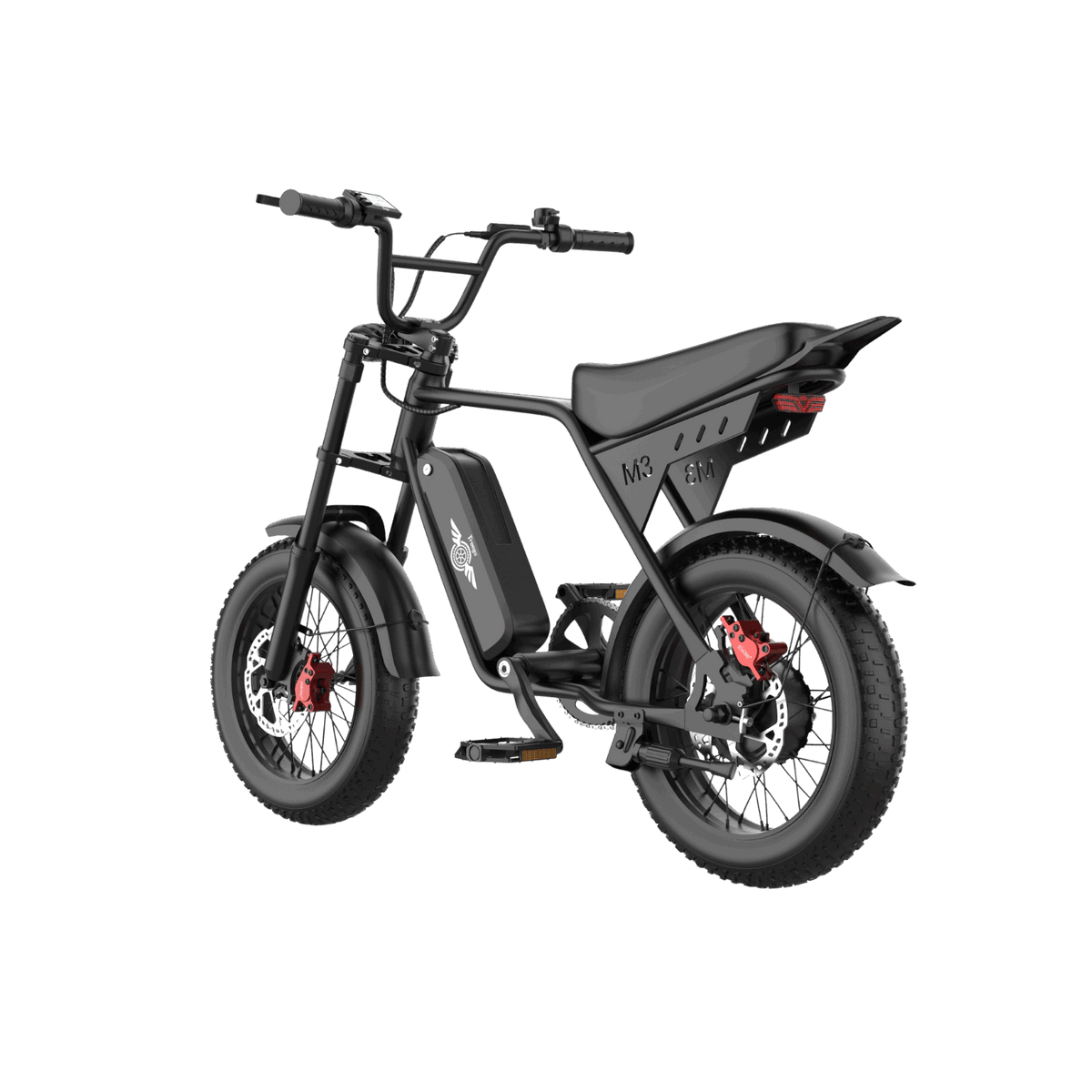

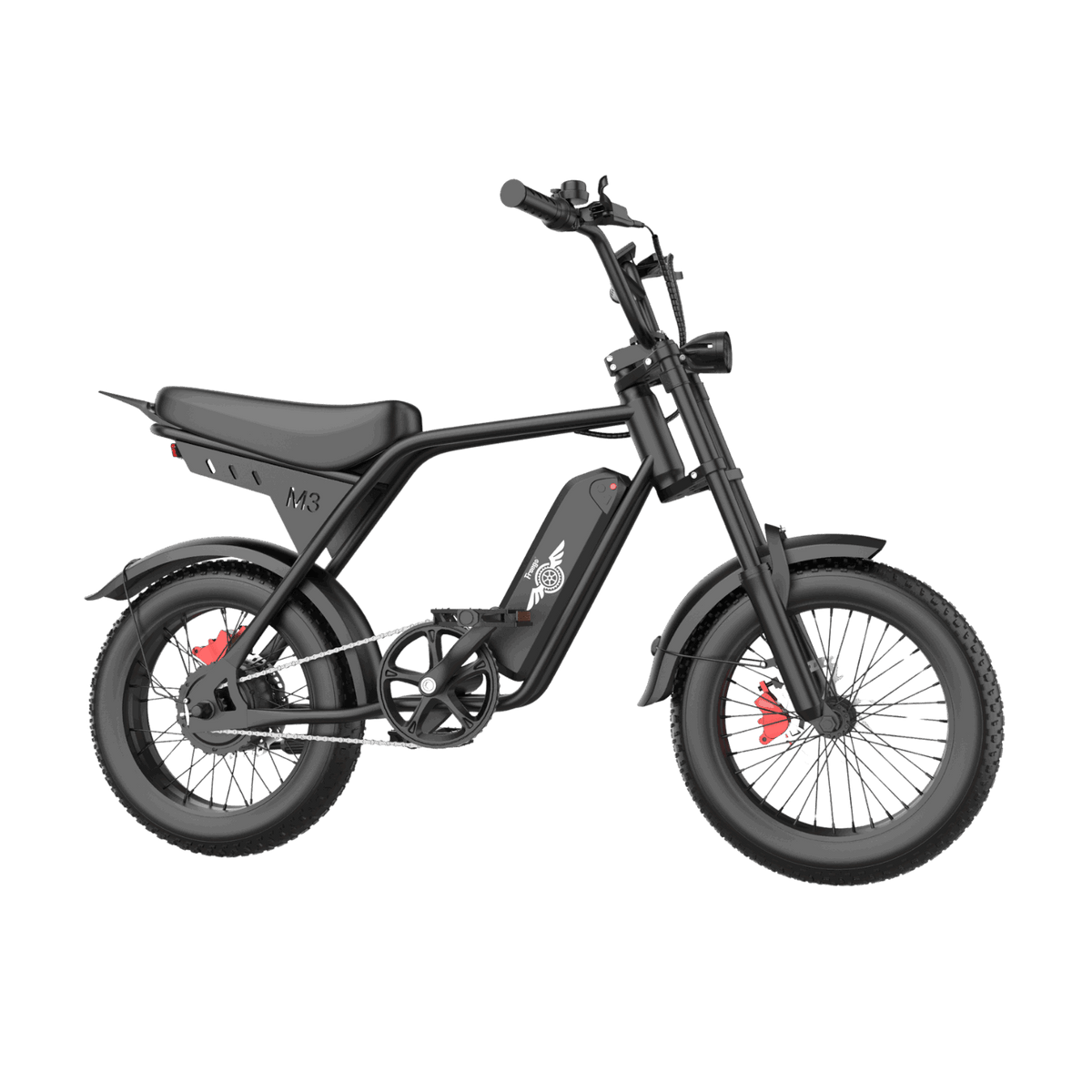

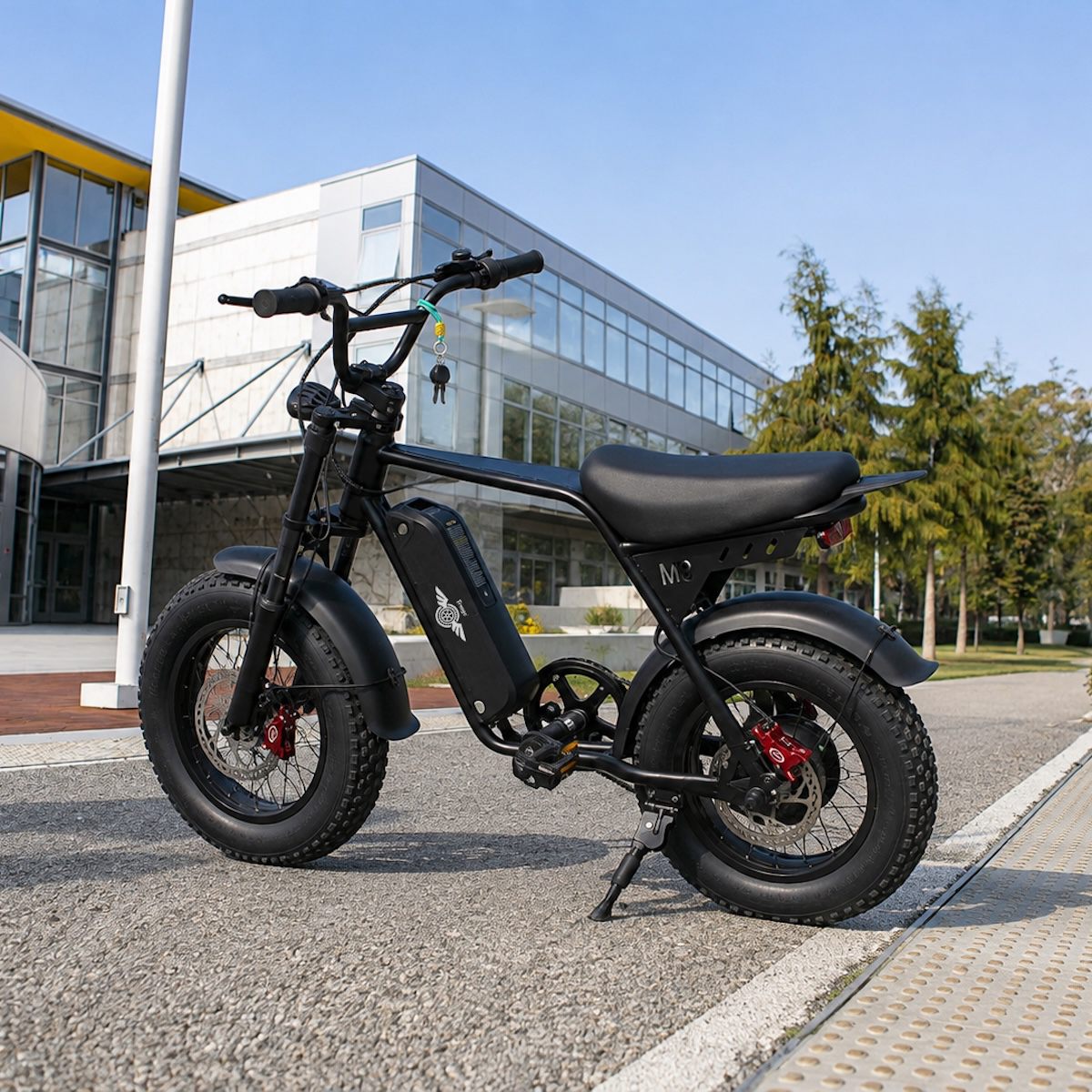

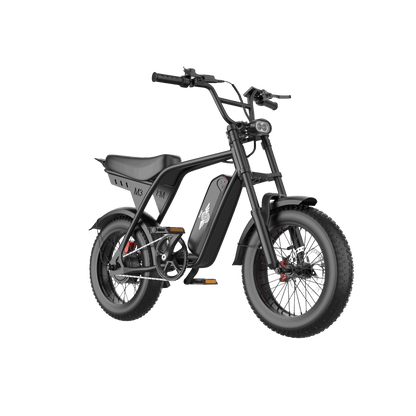

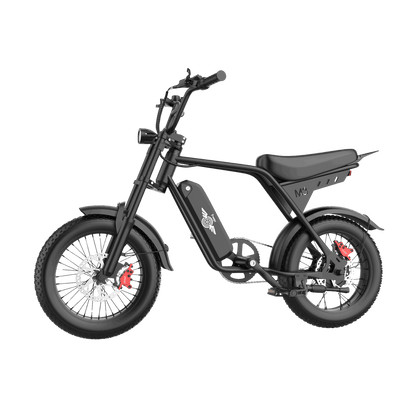

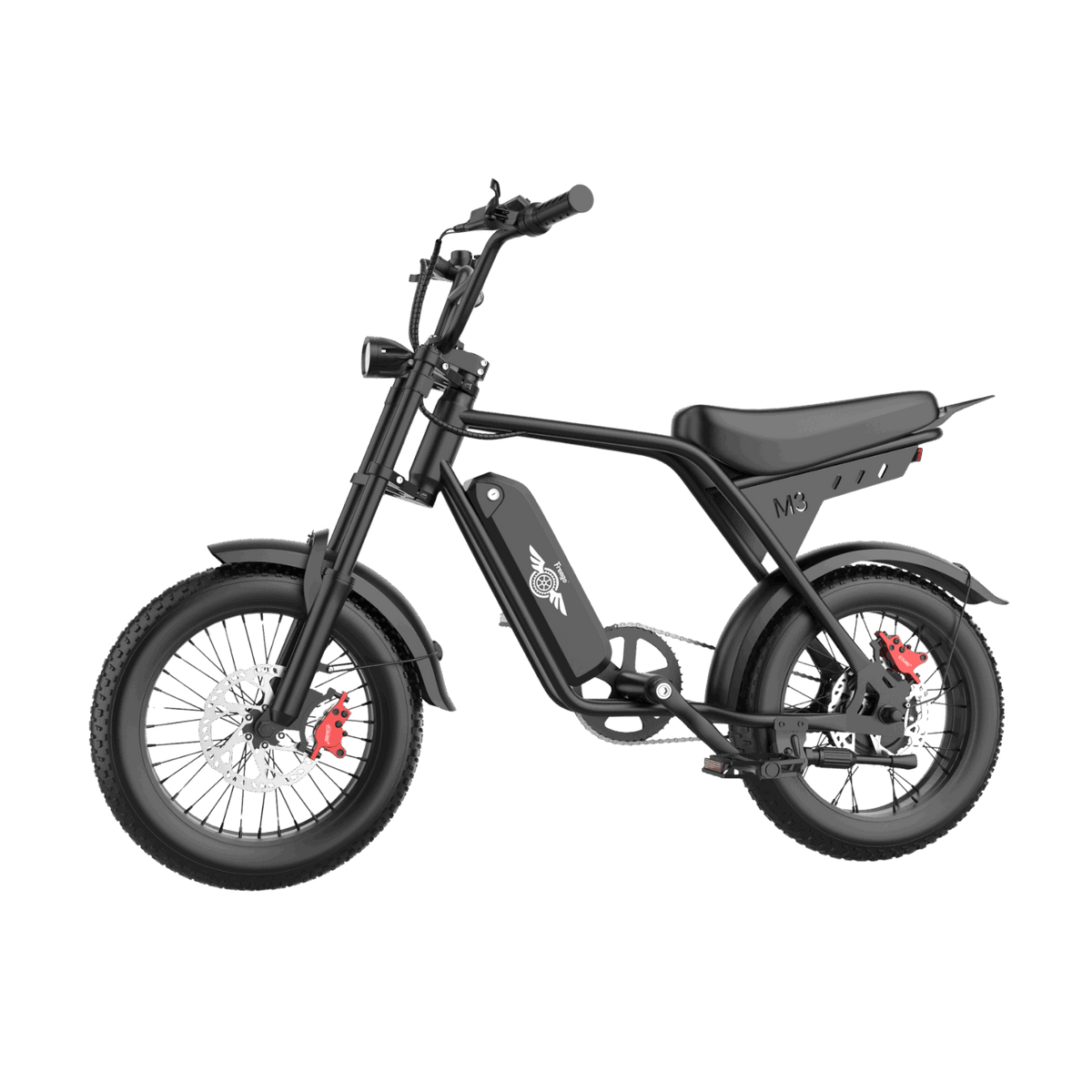

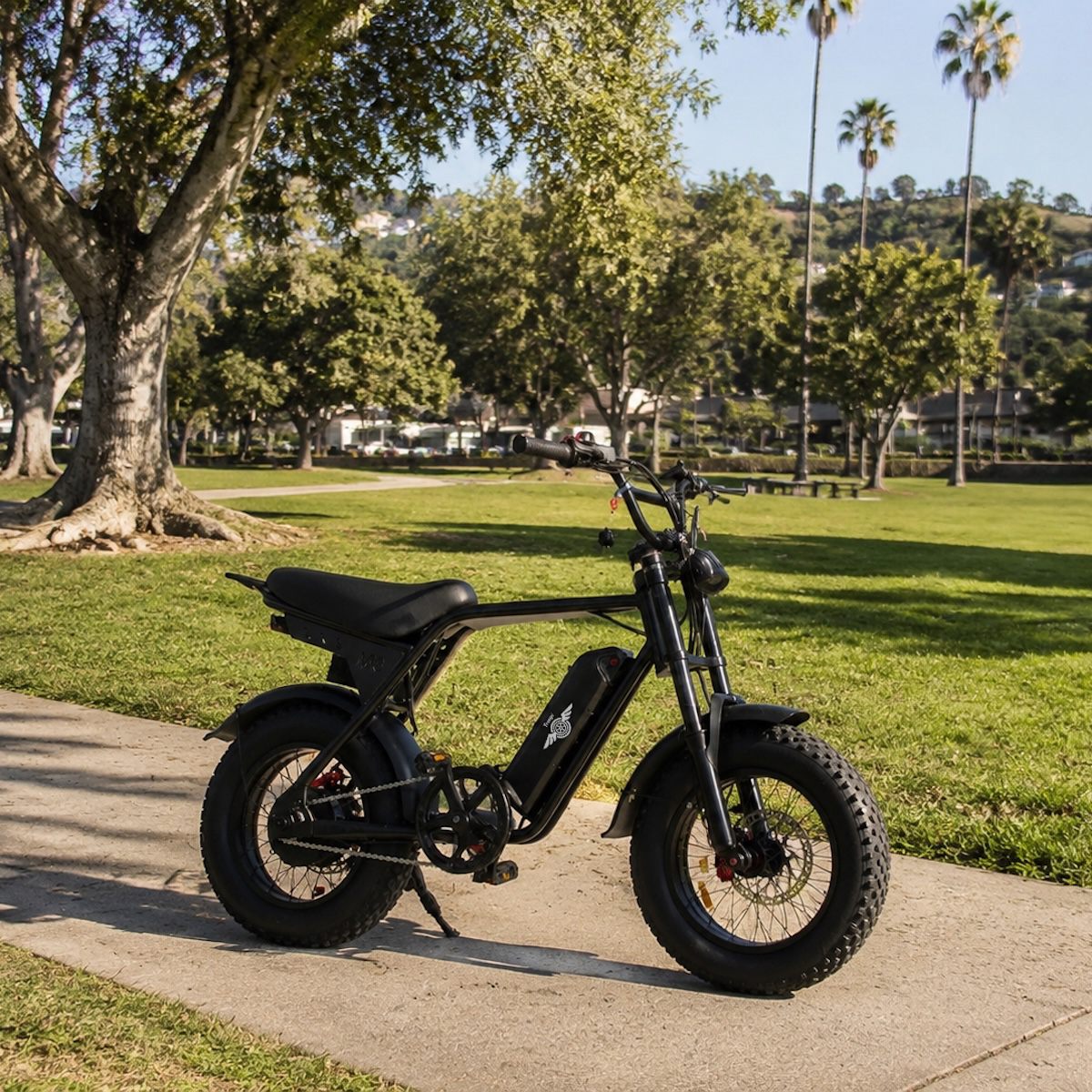

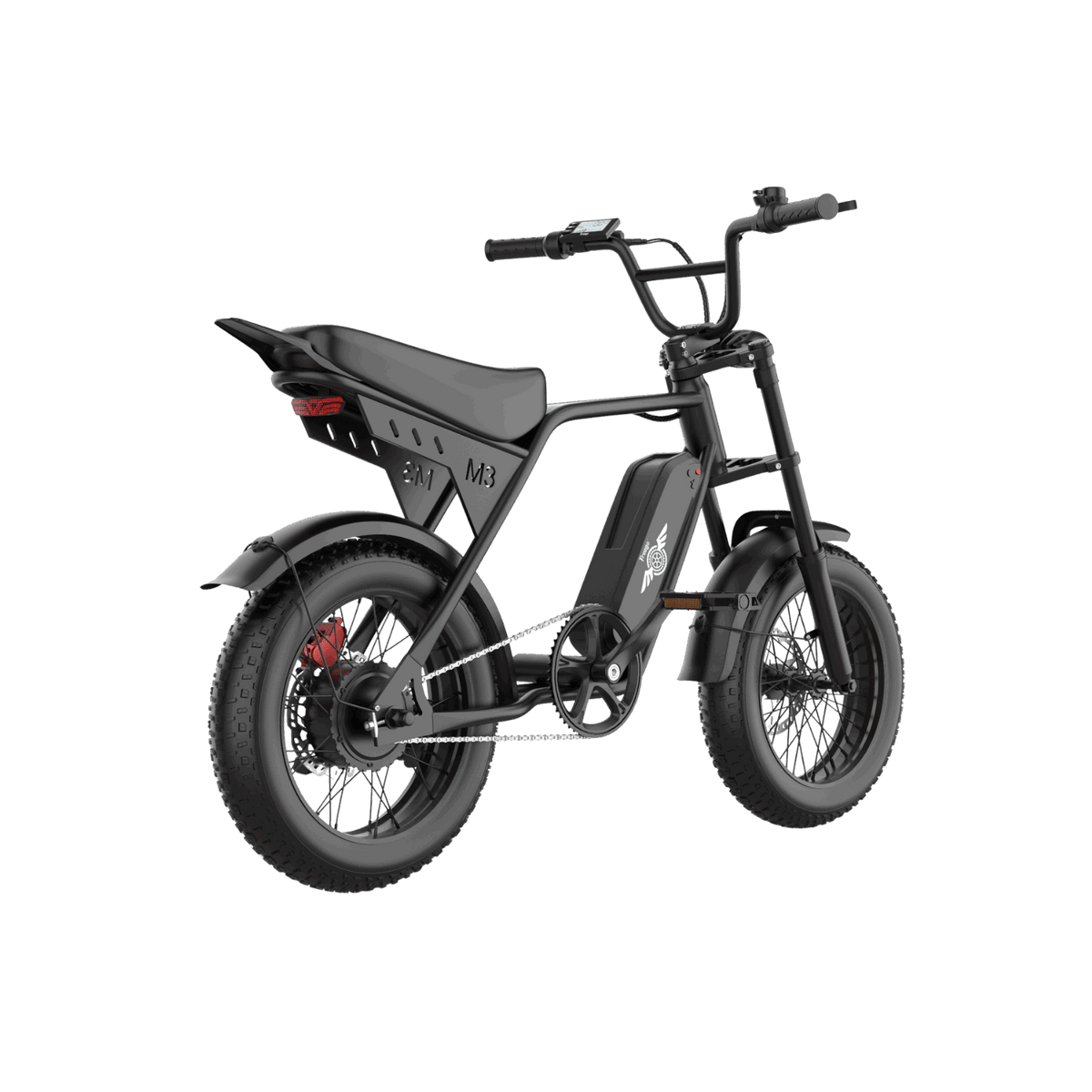

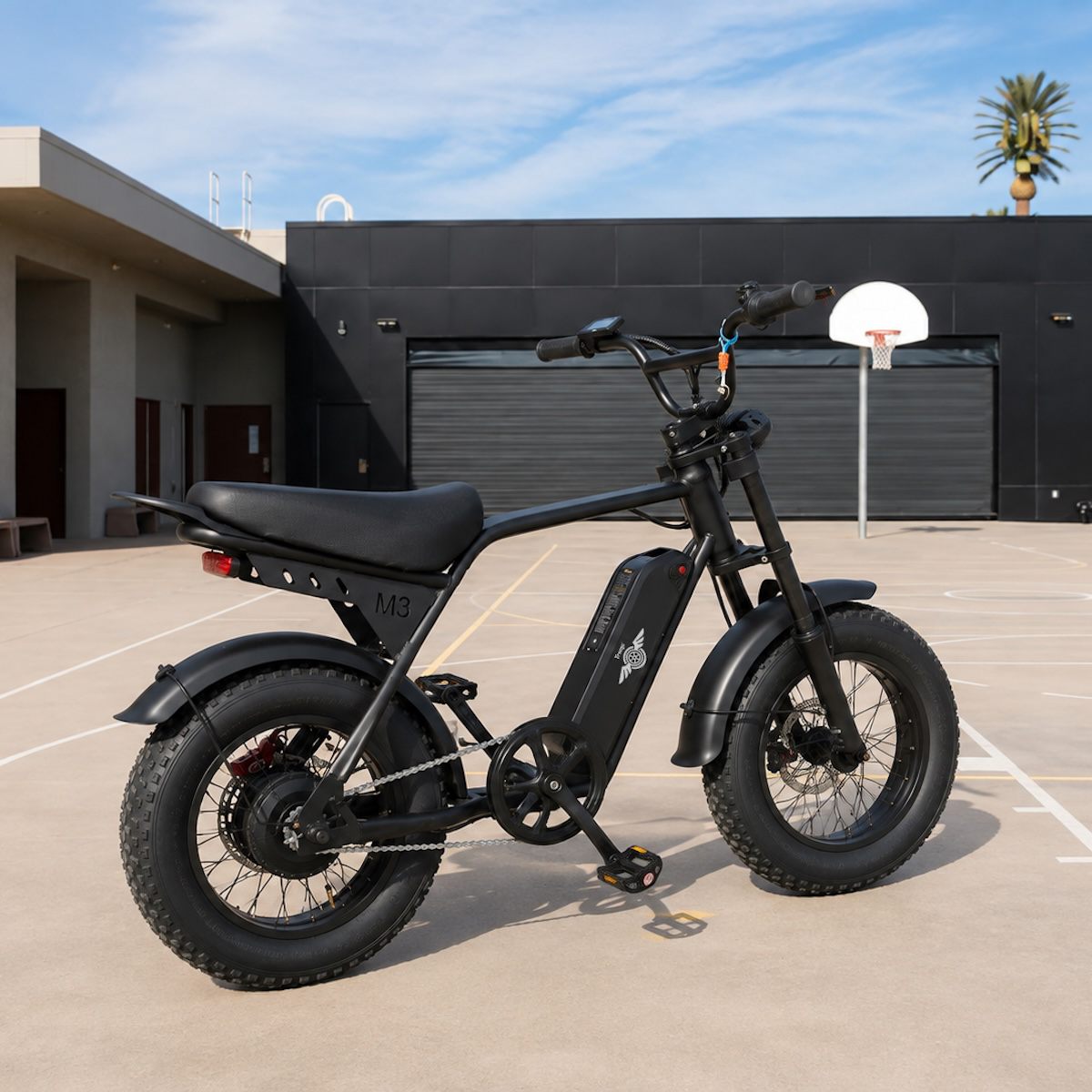

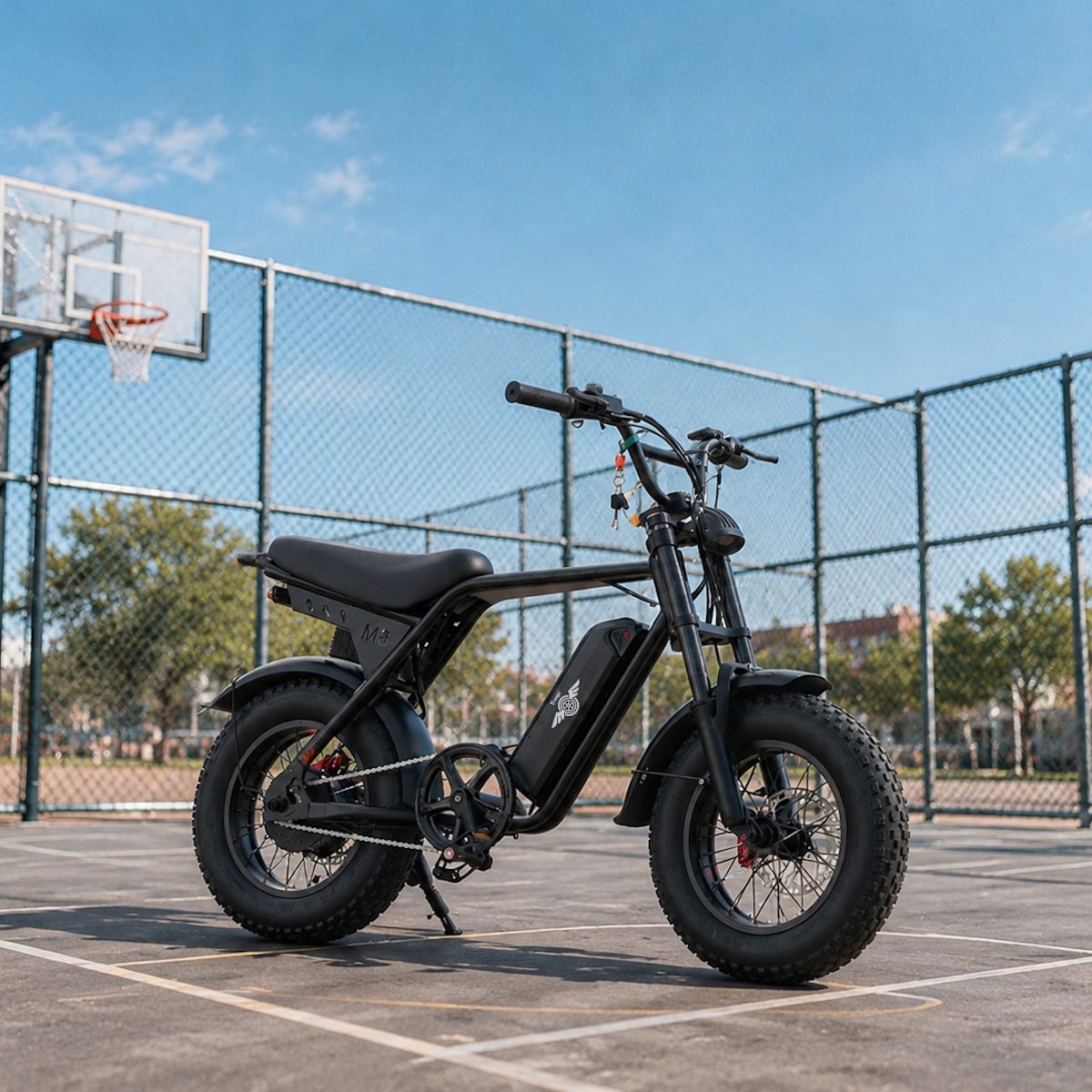

Freego Maxx M3 Class 2 Compact Fat Tire Electric Bike
A compact fat-tire e-bike built around a 48V 13Ah battery, 600W nominal / 750W peak rear hub motor, 20 MPH top speed and an estimated 25–50 mile riding range.
Compact Power for Everyday Riding
The Freego Maxx M3 combines a compact frame with wide 16 × 4.0-inch fat tires, front suspension and a rear brushless hub motor. Its full-twist throttle, LCD display and low comfort seat are designed for approachable everyday riding.
750W Peak Motor
600W nominal / 750W peak rear brushless hub motor with a 25A rated / 43A peak controller.
48V 13Ah Battery
624Wh battery capacity with a claimed 25–50 mile riding range depending on conditions and riding setup.
20 MPH Top Speed
Throttle-limited to 20 MPH for its Class 2 configuration.
Hydraulic Brakes
Front and rear 2-piston hydraulic disc brakes provide responsive stopping control.
Key Features
- Class 2 configuration with full-twist throttle
- 600W nominal / 750W peak rear brushless hub motor
- 48V 13Ah (624Wh) battery
- 16 × 4.0-inch tubed fat tires
- Front suspension fork
- LCD display
- Front and rear 2-piston hydraulic disc brakes
- Rear brake/tail light
- Single-speed drivetrain
- High-strength steel frame
- Maximum load: 220 lb / 100 kg
- Net weight: 55 lb / 25 kg
Specifications
| Motor | 600W nominal / 750W peak rear brushless hub motor |
| Top Speed | 20 MPH |
| Battery | 48V 13Ah (624Wh) |
| Estimated Range | 25–50 miles |
| Throttle | Full-twist throttle |
| Controller | 25A rated / 43A peak |
| Frame | High-strength steel |
| Display | LCD display |
| Maximum Load | 220 lb (100 kg) |
| Weight | 55 lb (25 kg) |
| Charging Time | 5–7 hours |
| Charger | 54.6V, 2A |
| Gearing | Single speed |
| Brakes | Front & rear 2-piston hydraulic disc brakes |
| Suspension | Front suspension fork |
| Wheels/Tires | 16 × 4.0-inch tubed fat tires |
| Rider Height | 4'7"–5'11" (140–180 cm) |

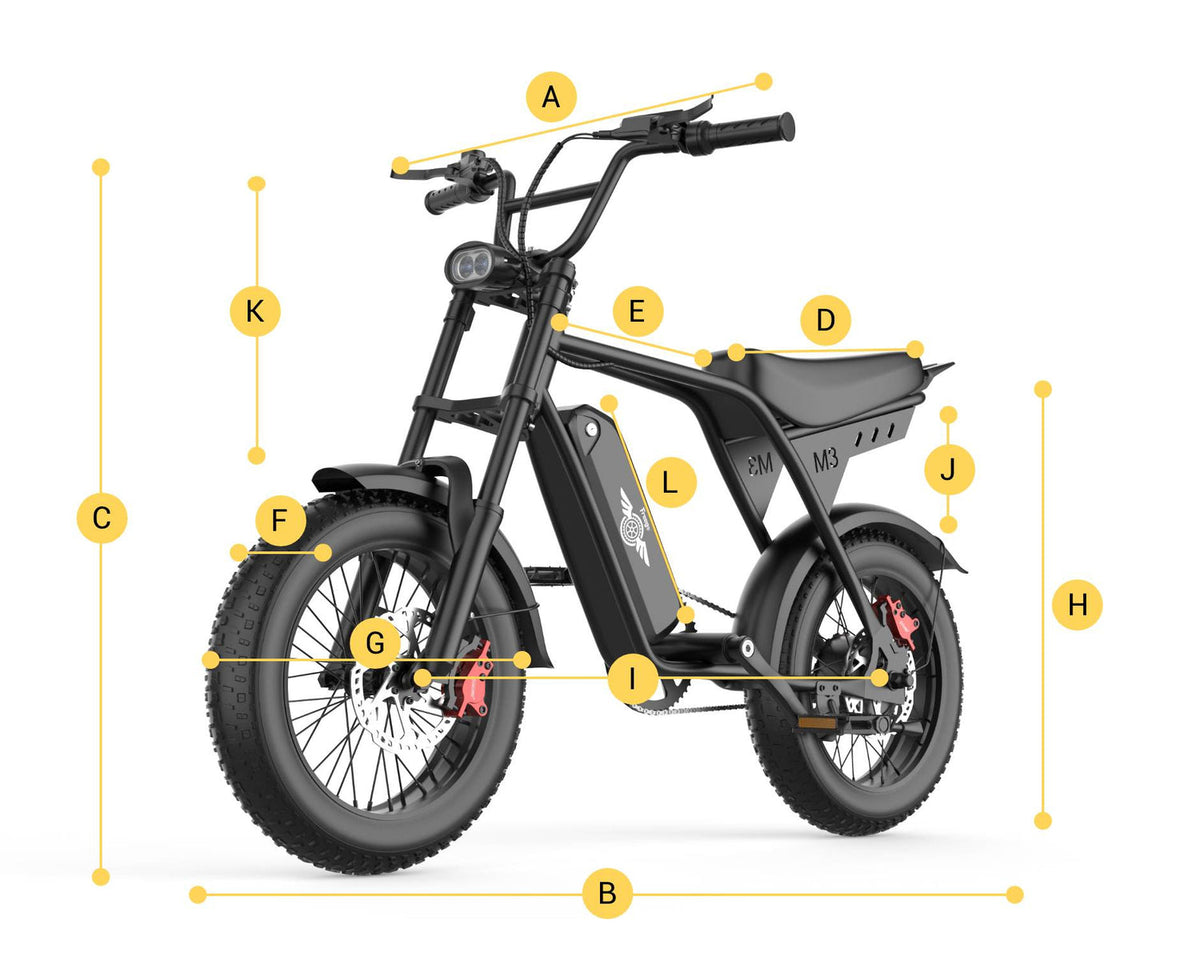

Dimensions
| Total Length | 57.9 in (147 cm) |
| Total Height | 36.6 in (93 cm) |
| Handlebar Length | 27.2 in (69 cm) |
| Seat Length | 17.7 in (45 cm) |
| Wheelbase | 37.0 in (94 cm) |
| Wheel Diameter | 18.1 in (46 cm) |
| Seat Height | 28.7 in (73 cm) |
| Battery Length | 14.2 in (36 cm) |
Warranty & Returns
The manufacturer states that new Freego e-bikes include a 2-year limited warranty on the frame. The product page also states a 14-day return window for unused bikes in their original packaging.
What’s Included
Freego Maxx M3 electric bike and standard supplied charging equipment. Please verify the package contents and assembly instructions supplied with your order before riding.
