Steering Damper
Steering Damper
Out of stock
Couldn't load pickup availability
Pay in 4 interest-free installments with Klarna
SKU:X1070847/X1070848/X1070849/X1070850/X1070851/X1070852/X1050273/X1050274/X1050275/X1050276/X1050072
The GSPACE Mars series Steering Damper upgrades.

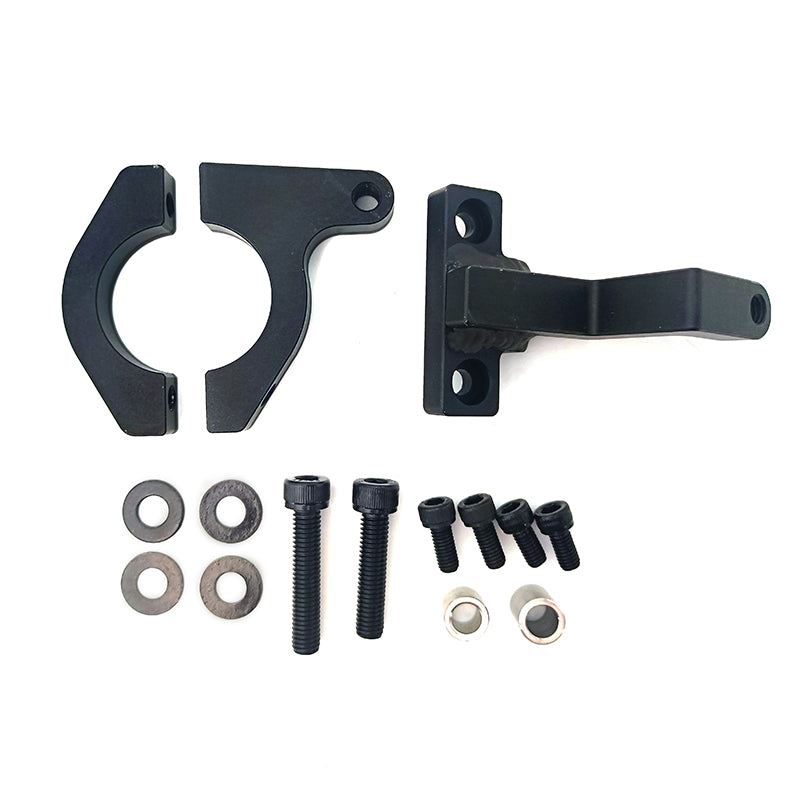

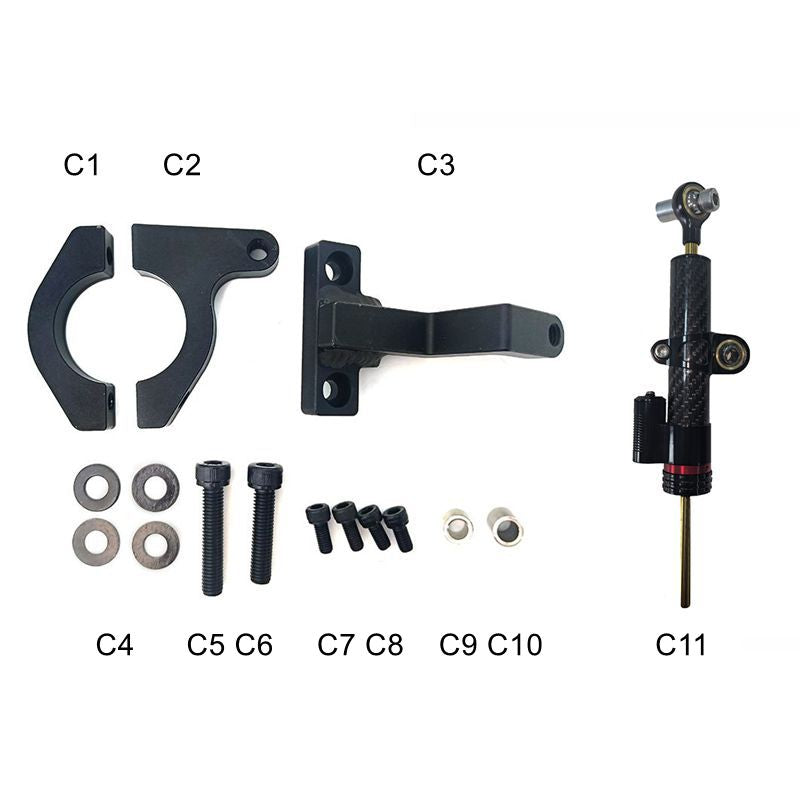

| Product List | |||
| NO. | Item | Specification | Qty |
|---|---|---|---|
| C1 | Set 1 | / | 1 pcs |
| C2 | Set 2 | / | 1 pcs |
| C3 | Set 3 | / | 1 pcs |
| C4 | SS Gasket | / | 4 pcs |
| C5 | Bolt 1 | M8*40 | 1 pcs |
| C6 | Bolt 2 | M8*35 | 1 pcs |
| C7 | Bolt 3 | M6*14 | 2 pcs |
| C8 | Bolt 4 | M6*12 | 2 pcs |
| C9 | Shaft Sleeve 1 | / | 1 pcs |
| C10 | Shaft Sleeve 2 | / | 1 pcs |

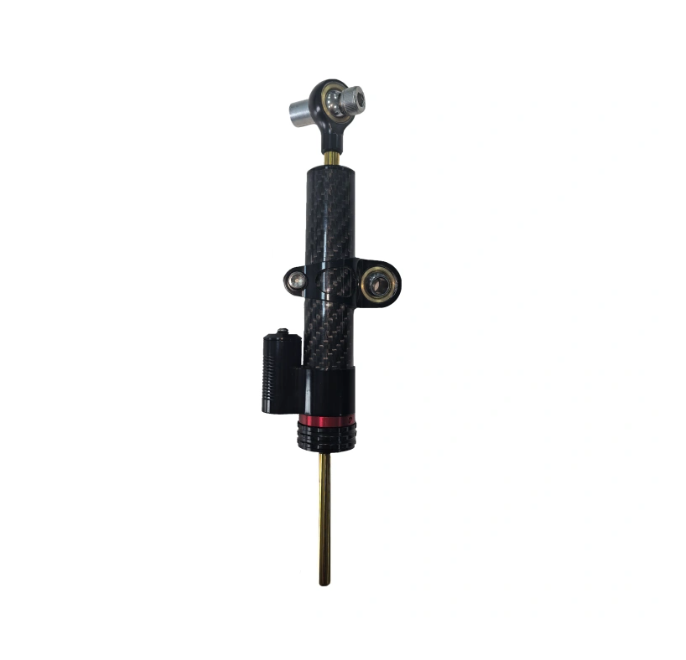

| C11 | Steering Damper | / | 1 pcs |
| C12 | Hole Punching Locator | / | 1 pcs |
Positioning Hole Drilling Drawing
INSTRUCTIONS FOR USE:
The steering damping and the custom fixed clamp must be used together, as neither can function properly alone.
Kindly note that a 5mm diameter brill bit should be used for hole punching,followed by tapping with an M6 thread tap.
APPLICABLE RANGE:
Designed for GSPACE Mars series (Mars GTR, GT, Eco).
HOW TO INSTALL DAMPER ON MARS ?
