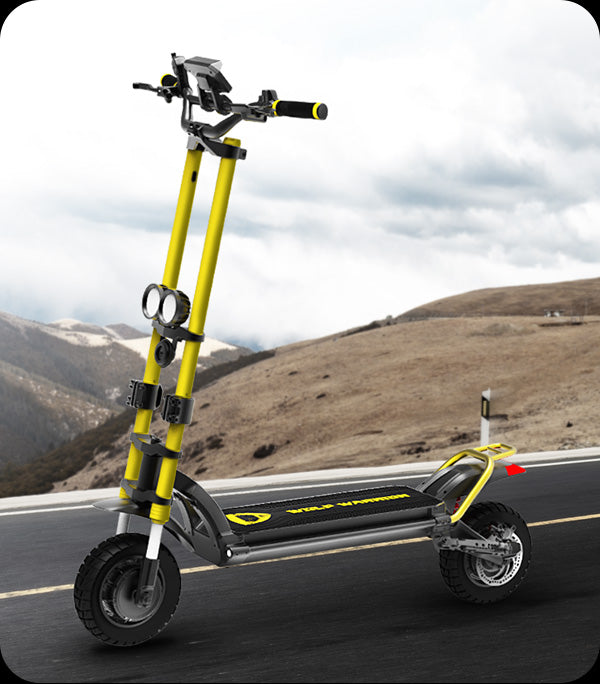

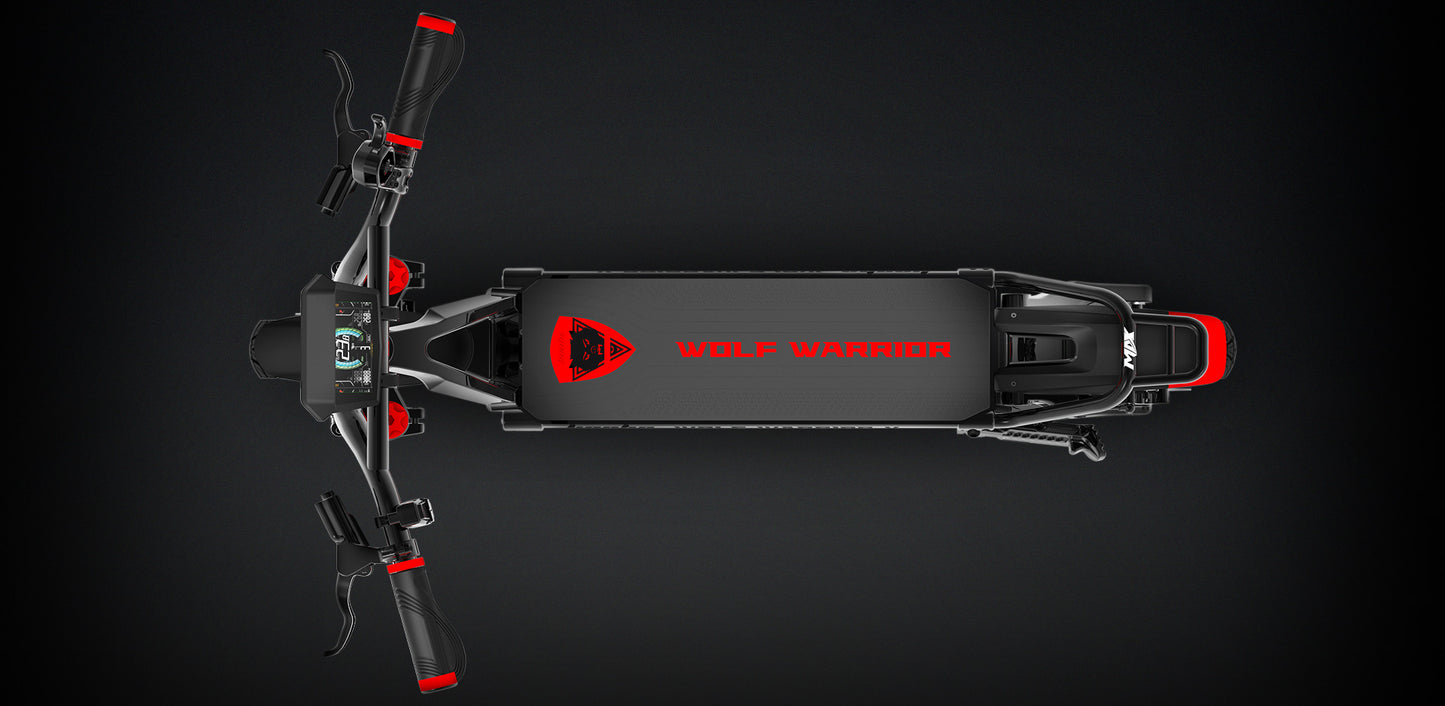

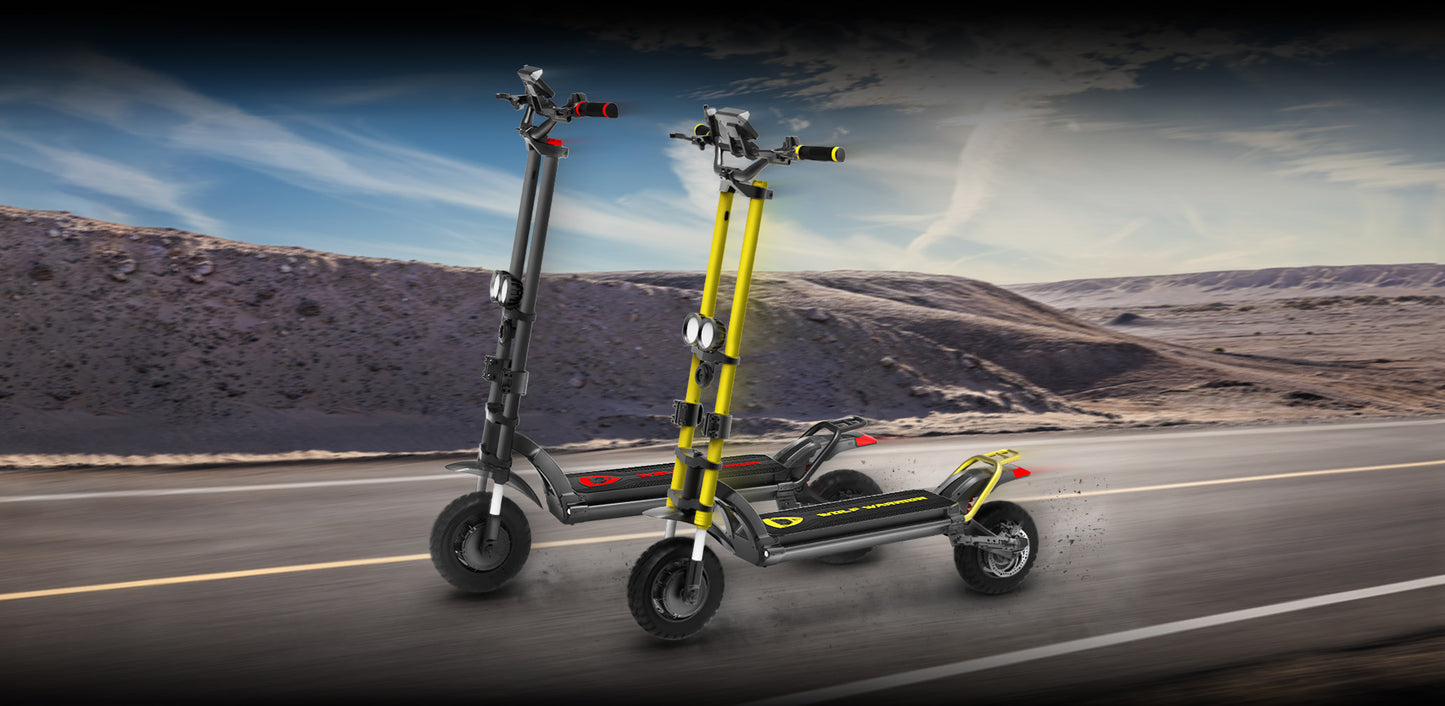

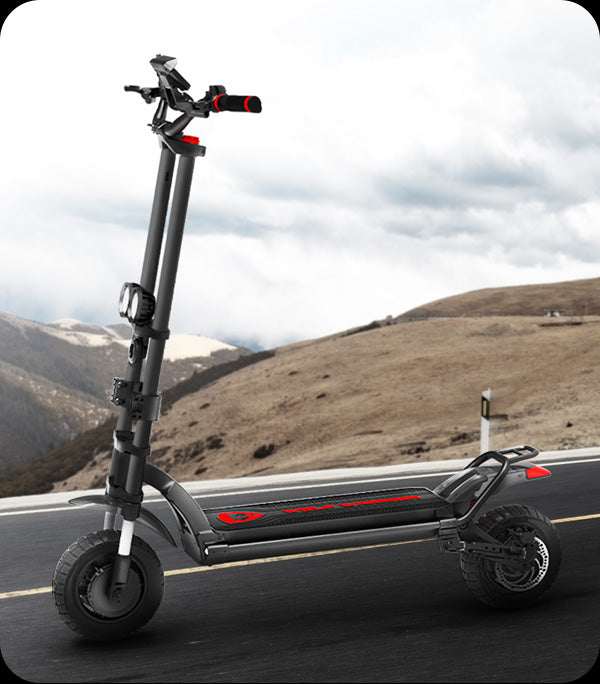

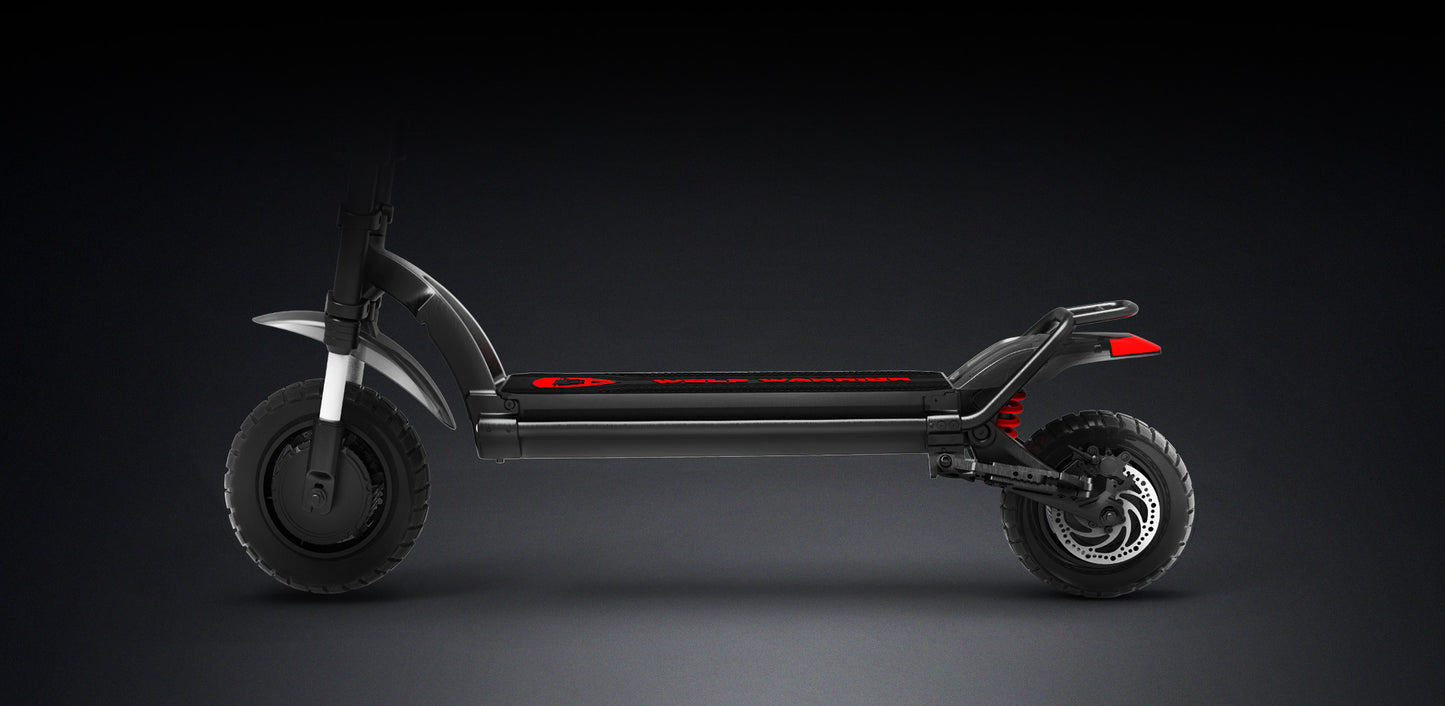

Kaabo Wolf Warrior X MAX Motor 1100W*2 | Off Road Use Only

Description

Auto-flip Waterproof Charging Port

The Wolf Warrior X MAX is equipped with an auto-flip waterproof charging port, providing superior protection. This innovative design ensures a safer, more reliable charging process, keeping your scooter safe in all weather conditions.

Modular Motor For Simple Maintenance

The Wolf Warrior X MAX is equipped with a modular motor, making maintenance hassle-free.

With a rated power of 1100W, it ensures reliable, powerful output for both city streets and rugged trails.

With NFC and USB Charging

The Wolf Warrior X MAX is equipped with an upgraded central display featuring NFC functionality and a 2A USB charging port. This setup enables seamless device pairing and convenient on-the-go charging, enhancing your overall riding experience.

Specification

Configuration

60V27Ah

Battery Type

DMEGC21700

Motor

1100W*2

Max power

4032W

Max Speed

70km/h

Max Range

90km

Climbing Angles

<35°

Max Load

120KG

Charger

67.2V1.75A*2 1+3-

Charging time(use 1.75A*2)

About 7.8 hrs

Charging time(use 5A*2)

About 2.7 hrs

Controller

60V30A*2

Display

Kaabo central display+Kaabo accelerator come with NFC and USB 2A IPX7

Brake

Front and rear hydraulic brake（140mm）+EABS

Shock Absorber

Front patent hydraulic shock absorber+rear adjustable hydraulic shock absorber

Tyres

10 *3.0 all terian tire CST

Light System

LED Pedal lamp（RGB Set different colors on your phone ） +LED front spotlight+LED turnlight+LED front light

N.W.(kg)

38kgs

Open Size

1251*196*1256mm

Product Material

Handle and stem with 6061 aluminum alloy; frame connection,swing arm and rotating head with 6082 aluminum alloy; deck with 6063 aluminum alloy ; fender with PP;electric control box with ADC12 aluminum alloy.
