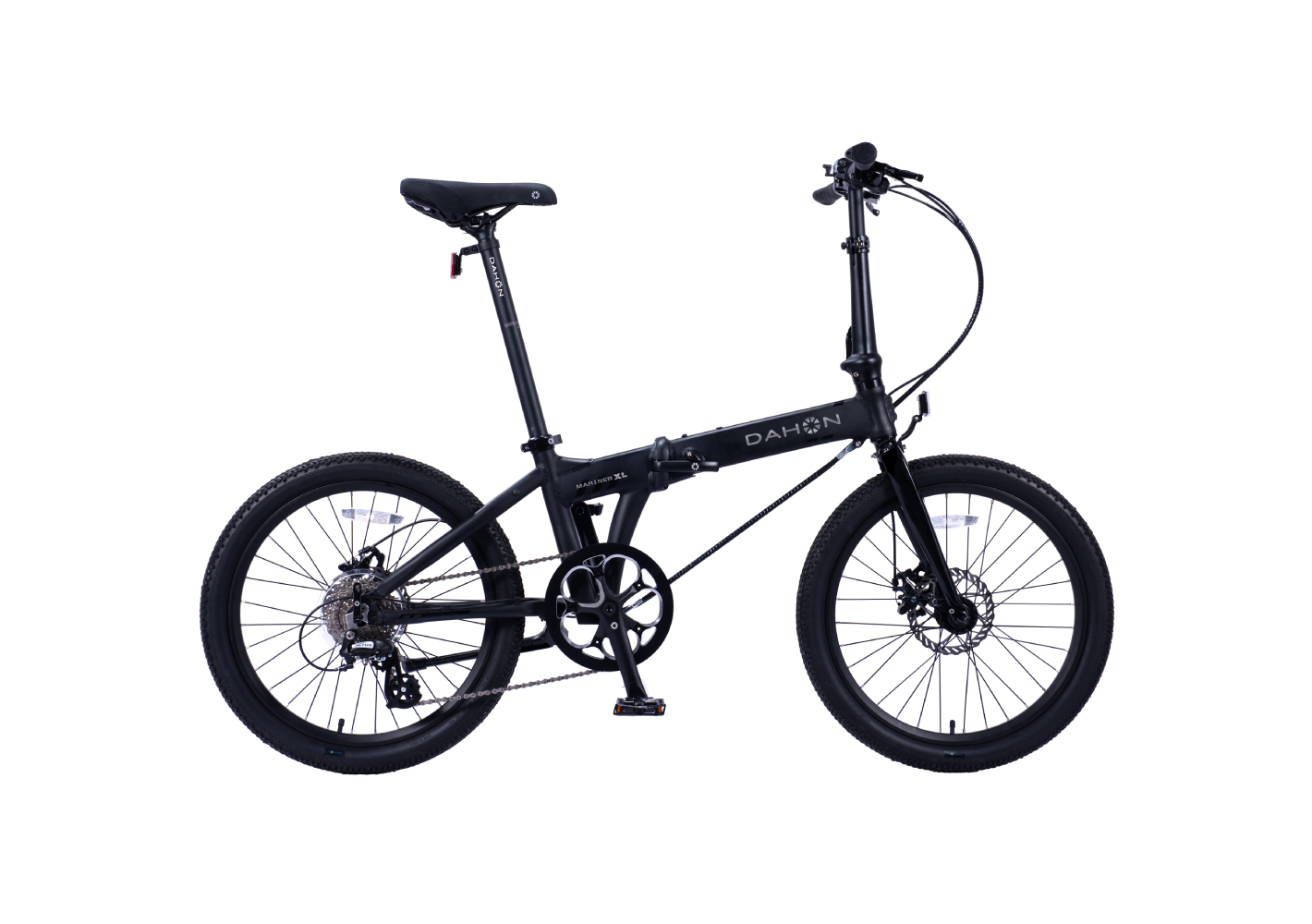

Mariner XL: The Mariner, Built for Bigger Riders
The DAHON Mariner XL is the 22-inch XL version of the Mariner series — engineered for riders up to 330 lbs and 6.8 feet tall, with a Shimano 8-speed drivetrain and hydraulic disc brakes for confident stopping.
🚴 Why Riders Love It
- 📏 Fits riders up to 6.8 ft and 330 lbs — built specifically for larger riders
- 🛑 Tektro hydraulic disc brakes for confident stopping in all conditions
- ⚙️ Shimano 8-speed drivetrain for commuting and moderate hills
- 🛞 22" wheels for a more stable, bigger-bike ride feel
- 🧂 Mariner-series anti-rust enhancements for coastal and humid storage
⚙️ Key Features
📏 XL Fit, Up to 330 lbs
Sized for riders up to 6.8 feet and 330 lbs, the Mariner XL brings Dahon's folding format to riders who don't fit standard-size folders.
🛑 Hydraulic Disc Brakes
Tektro hydraulic disc brakes provide stronger, more consistent stopping power than the V-brakes on most Dahon models — especially useful at higher rider weights.
⚙️ Shimano 8-Speed Drivetrain
Eight-speed gearing handles commuting and moderate hills, matching the standard Mariner D8 II's range in a larger frame.
🛞 22" Wheels
Larger 22-inch wheels give the Mariner XL a more stable, bigger-bike ride feel than Dahon's 20-inch commuter models.
📋 Full Technical Specifications
| Frame Material | Aluminum (Dalloy Aluminum Sonus Tubeset, Lattice Forged Hinge) |
|---|---|
| Fork | Lightweight Dalloy Aluminum |
| Handlepost | Forged Alloy Radius Telescope w/ Fusio Technology, adjustable |
| Wheel Size | 22" |
| Drivetrain | Shimano 8-speed |
| Brakes | Tektro Hydraulic Disc Brake |
| Product Weight | ~30 lbs |
| Rider Height Range | 5'1" – 6'5" |
| Payload Capacity | Up to 330 lbs |
| Colors | Matt Obsidian |
🚲 Ride & Handling
The Mariner XL's 22-inch wheels and Shimano 8-speed drivetrain deliver the same versatile gearing as the standard Mariner in a frame sized for taller, heavier riders — up to 6.8 ft and 330 lbs. Tektro hydraulic disc brakes add confident, consistent stopping power that Dahon's V-brake-equipped models don't offer.
🆚 How It Compares
| Spec | This DAHON Model | Typical 20" Folding Bike | Brompton-Style Premium Folder |
|---|---|---|---|
| Rider Height Fit | Up to 6.8 ft | Up to ~6.2 ft (standard Mariner) | Up to ~6.2 ft |
| Max Payload | 330 lbs | 231 lbs (standard Mariner) | Varies, often lower |
| Brakes | Hydraulic disc | V-brakes (most models) | V-brakes or disc |
| Wheel Size | 22" | 20" | 16"–20" |
Competitor figures are publicly listed manufacturer specs at time of writing and may vary by model year.
🛡️ Why Shop With Us
📦 What's In The Box
- 1x DAHON Mariner XL Folding Bike (pre-assembled ~90%)
- 1x Folding/quick-release pedals (final install required)
- Owner's manual & warranty card
❓ Frequently Asked Questions
Who is the Mariner XL built for?
Riders up to 6.8 feet tall and 330 lbs who don't fit Dahon's standard-size folding bikes.
What brakes does it use?
Tektro hydraulic disc brakes.
How many gears does it have?
8-speed Shimano gearing.
How much does it weigh?
Approximately 30 lbs.
Is it the same as the standard Mariner D8 II?
No — the XL uses larger 22" wheels, a bigger frame, and hydraulic disc brakes to fit larger riders.
Specifications reflect manufacturer-published data at time of publishing and are subject to change. Always verify fit, range, and load ratings for your specific use case.
