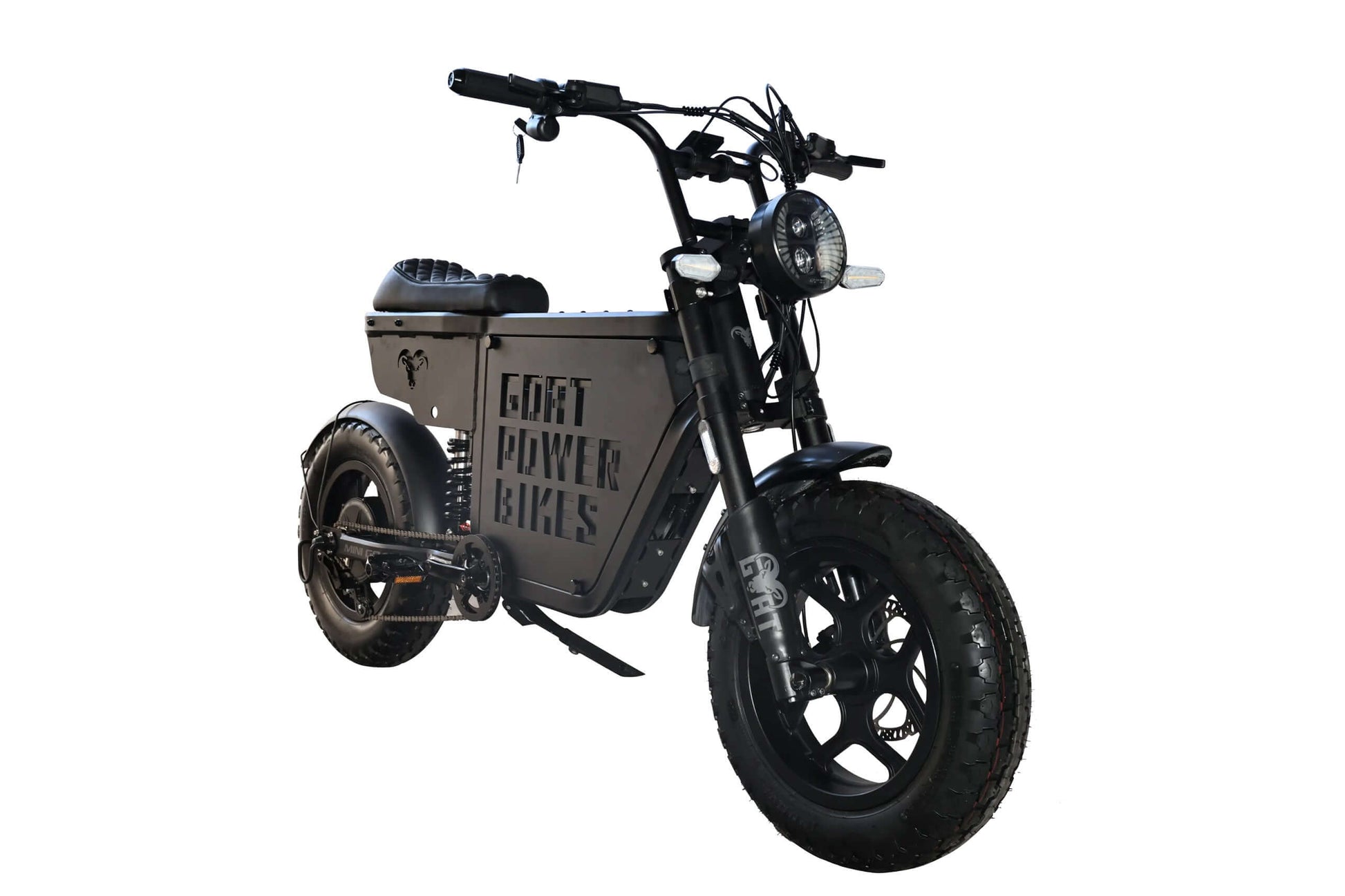

🐐 THE MINI GOAT
Compact Footprint. Serious Goat Power.
The Mini Goat packs high-performance electric-bike hardware into a more compact frame, giving riders a lower 29.5-inch seat height without giving up the performance-oriented character of a full-size Goat.
With a current published 72V 5,300W peak motor, 175Nm torque, 60A controller, 55–60 MPH top-speed capability, 72V battery options up to 50Ah, full motorcycle-style suspension, 4-piston hydraulic brakes and a 400 lb rider limit, the Mini Goat is designed for experienced adult riders who want a smaller, easier-to-manage platform.
⚡ SMALLER SIZE. BIG PERFORMANCE.
🔥 72V • 5,300W Peak • 175Nm
The current Mini Goat product page lists a 72V 5,300W peak motor with 175Nm of torque.
The single-motor configuration works with a 60A controller and full-twist throttle.
That combination gives the Mini Goat its high-output character while keeping the overall chassis noticeably more compact than larger Goat models.
⚠️ Published Motor Rating Note
Goat Power Bikes' current product page lists:
72V 5,300W Peak
An older official Goat assembly article described the Mini Goat as:
3,000W rated / 4,500W peak
Because the live product page currently publishes 5,300W peak, this product description uses 5,300W peak as the current primary specification rather than presenting the older 4,500W figure as the current peak rating.
🏁 UP TO 55–60 MPH
The current product page lists a maximum speed of 55–60 MPH.
The manufacturer notes that the fastest result is achieved with the 30Ah battery, that speed depends on rider weight, and that the published top-speed figure is based on a 125 lb rider.
Factory Setting: 20 MPH
The Mini Goat ships with its speed set to 20 MPH from the factory.
The display settings can be used to change the speed limit.
Higher-speed operation may change the legal classification of the bike, so riders should verify applicable local laws before using higher-speed settings.
🔋 CHOOSE YOUR BATTERY
The Mini Goat is offered with three published battery configurations:
🔋 72V 30Ah
Throttle only: up to 30 miles
Pedal assist: up to 50 miles
The 30Ah configuration is also identified by the manufacturer as the fastest battery configuration, with the published 55–60 MPH top-speed figure based on a 125 lb rider.
🔋 72V 40Ah
Throttle only: up to 40 miles
Pedal assist: up to 70 miles
A larger capacity option for riders prioritizing additional range.
🔋 72V 50Ah
Throttle only: up to 50 miles
Pedal assist: up to 90 miles
The largest published battery option for riders who prioritize maximum range.
🏆 WHY THE MINI GOAT?
📏 Lower 29.5" Seat Height
The Mini Goat is designed around a 29.5-inch seat height, making it substantially more accessible than many full-size high-performance e-bikes.
The manufacturer states that it is designed for riders with approximately a 24–34-inch inseam or approximately 5'0"–6'3".
🚀 High-Output Motor
The current product page lists 5,300W peak power and 175Nm torque.
🔋 Up to 90-Mile Published PAS Range
With the 72V 50Ah battery, the manufacturer publishes up to 90 miles of pedal-assist range.
🌀 Motorcycle-Style Suspension
The Mini Goat uses a TRAMA inverted motorcycle front fork and FASTACE dual coil-and-oil rear shocks.
🛑 4-Piston Hydraulic Brakes
The braking system uses KARASAWA 4-piston hydraulic disc brakes with 180mm front and 203mm rear rotors.
🛞 Motorcycle-Inspired Tires
The bike uses INNOVA motocross tires:
Front: 3.50" × 16"
Rear: 4.0" × 16"
🧍 400 lb Rider Limit
The Mini Goat is rated for a maximum rider weight of 400 lbs.
🔑 KEY FEATURES
⚡ 5,300W Peak Motor
The current product page lists a 72V 5,300W peak motor with 175Nm torque.
Why it matters: The high torque and peak-output rating are designed for strong acceleration and climbing assistance.
🔋 72V Battery Platform
Choose between:
30Ah • 40Ah • 50Ah
The larger batteries provide greater published range.
30Ah: 30 miles throttle / 50 miles PAS
40Ah: 40 miles throttle / 70 miles PAS
50Ah: 50 miles throttle / 90 miles PAS
🏁 55–60 MPH Published Top Speed
The manufacturer lists 55–60 MPH, with the fastest result associated with the 30Ah battery and a 125 lb rider.
The bike ships limited to 20 MPH.

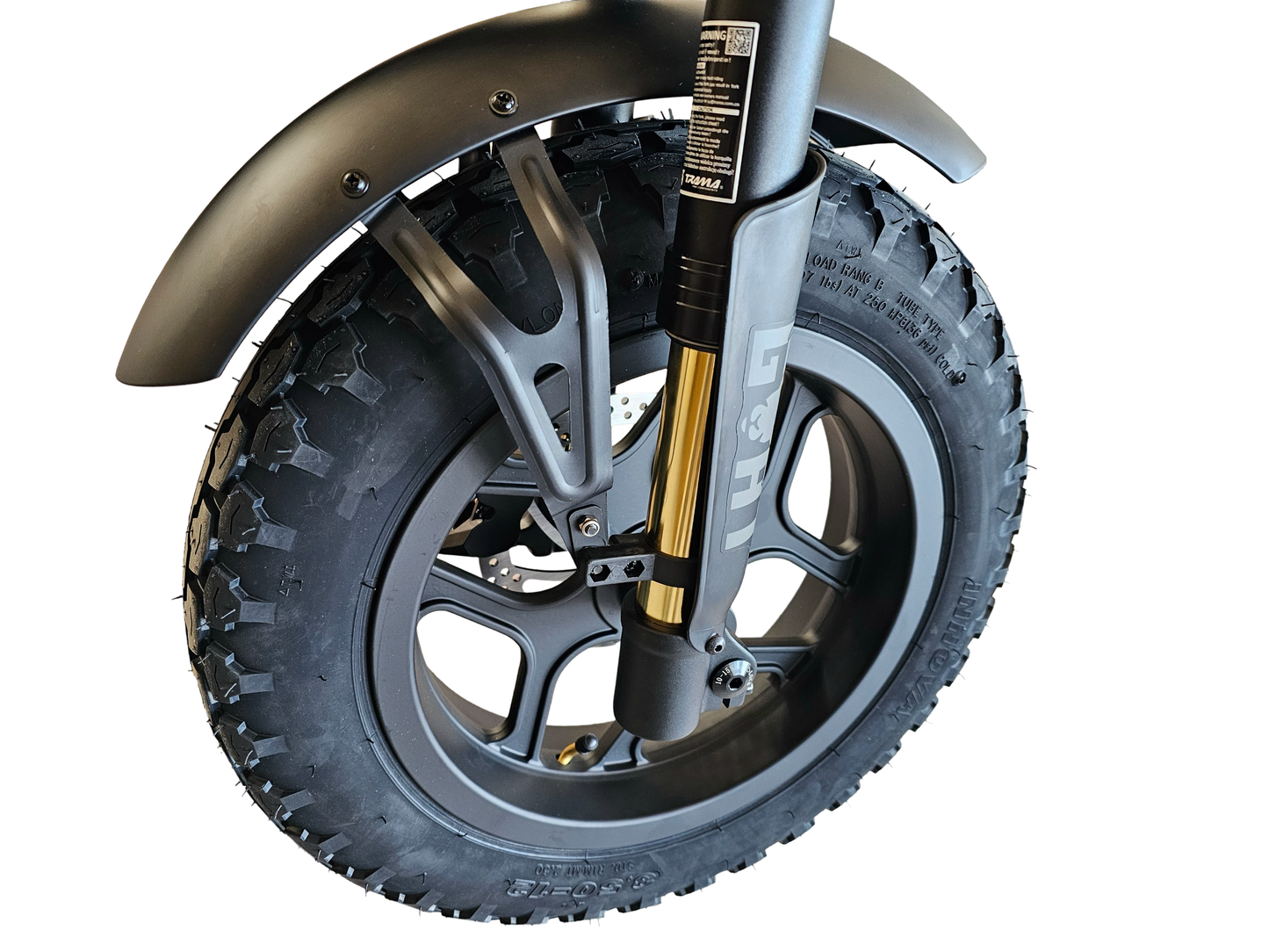

🌀 TRAMA Inverted Motorcycle Fork
The front suspension uses a TRAMA inverted motorcycle-style fork.
Why it matters: The inverted fork design gives the Mini Goat a motorcycle-inspired front-end setup for controlled handling over uneven surfaces.
🔧 FASTACE Dual Rear Shocks
The rear uses FASTACE dual coil-and-oil shocks with a published 350 lb equivalent rating.
Why it matters: Dual rear shocks provide additional support and damping for the compact high-output chassis.
🛑 KARASAWA 4-Piston Hydraulic Brakes
The Mini Goat uses KARASAWA 4-piston hydraulic disc brakes.
Rotor sizes:
Front: 180mm
Rear: 203mm
Brake positioning:
Left = Rear
Right = Front
🛞 INNOVA Motocross Tires
The Mini Goat uses:
Front: 3.50" × 16"
Rear: 4.0" × 16"
The motocross-style tread is designed for a more aggressive mixed-surface riding character.
📱 Full-Twist Throttle
The Mini Goat uses a full-twist throttle for direct motor control.
⚙️ Shimano Single-Speed
The pedal-equipped Mini Goat uses a Shimano single-speed drivetrain.
This keeps the pedal system simple while allowing the motor to provide the majority of the propulsion.
💡 High/Low-Beam LED Headlight
The Mini Goat includes:
Low beam: 400 lumens
High beam: 370 lumens
↔️ LED Turn Signals
LED turning signals are included for improved visibility when maneuvering.
📯 Horn
A horn is included.
📋 FULL TECHNICAL SPECIFICATIONS
⚡ Motor & Performance
| Specification | Mini Goat |
|---|---|
| Motor system | 72V high-output electric motor |
| Motor count | 1 — Single Motor |
| Current published peak power | 5,300W Peak |
| Older official published rated power | 3,000W Rated |
| Older official published peak power | 4,500W Peak |
| Torque | 175Nm |
| Controller output | 60A |
| Throttle | Full-twist |
| Top speed | 55–60 MPH |
| Speed reference rider | 125 lbs |
| Fastest battery configuration | 30Ah |
| Factory speed setting | 20 MPH |
| Pedal drivetrain | Shimano Single Speed |
| Pedal assist | Yes |
| Motor type | Not further specified on current product page |
Motor Specification Note
The current product page's headline performance specification is 5,300W peak. An older official Goat assembly article states 3,000W rated / 4,500W peak. The current page does not separately publish a nominal/rated wattage, so 5,300W peak is the current primary product-page figure and the older 3,000W/4,500W figures should not be represented as the current specification without clarification.
🔋 Battery & Range
| Specification | 30Ah | 40Ah | 50Ah |
|---|---|---|---|
| Battery voltage | 72V | 72V | 72V |
| Capacity | 30Ah | 40Ah | 50Ah |
| Nominal energy | 2,160Wh | 2,880Wh | 3,600Wh |
| Throttle-only range | 30 miles | 40 miles | 50 miles |
| Pedal-assist range | 50 miles | 70 miles | 90 miles |
| Published fastest configuration | Yes | Not specified | Not specified |
The 2,160Wh / 2,880Wh / 3,600Wh figures are calculated from the manufacturer's published voltage and Ah ratings.
🔌 CHARGING
| Specification | Detail |
|---|---|
| Battery voltage | 72V |
| Battery options | 30Ah / 40Ah / 50Ah |
| Official charge time on current product page | Not specified |
| Charger specification on current product page | Not specified |
| Charging time | Depends on battery size, charger output, battery state and charging conditions |
Goat Power Bikes has published approximately 4 hours as a charging-time figure for a 50Ah Mini Goat in a separate battery guide, but because charging equipment and conditions can affect the actual result, this description does not present 4 hours as a guaranteed charge time.
🌀 SUSPENSION & BRAKES
| Specification | Detail |
|---|---|
| Front suspension | TRAMA inverted motorcycle front fork |
| Rear suspension | FASTACE dual coil-and-oil rear shocks |
| Rear shock rating | 350 lb equivalent rated |
| Front brake | KARASAWA 4-piston hydraulic disc |
| Rear brake | KARASAWA 4-piston hydraulic disc |
| Front rotor | 180mm |
| Rear rotor | 203mm |
| Brake positioning | Left = Back / Right = Front |
🛞 WHEELS & TIRES
| Specification | Detail |
|---|---|
| Front tire | INNOVA motocross 3.50" × 16" |
| Rear tire | INNOVA motocross 4.0" × 16" |
| Front tire width | 3.50" |
| Rear tire width | 4.0" |
| Wheel diameter | 16" |
| Tire type | Motocross |
Goat's replacement-tire listing also identifies the Mini Goat tire sizes as 16 × 3.5 front and 16 × 4 rear.
🧱 FRAME & DIMENSIONS
| Specification | Detail |
|---|---|
| Frame type | Aluminum |
| Bike weight | 130 lbs |
| Rider weight limit | 400 lbs |
| Overall length | 69" |
| Overall width | 28.5" |
| Overall height | 41.5" |
| Seat height | 29.5" |
| Rider inseam | 24–34" |
| Approx. rider height | 5'0"–6'3" |
| Seat extension | Compatible with Motor Goat Seat Extension |
| Frame style | Compact / Mini Goat |
💡 LIGHTING & EQUIPMENT
| Feature | Specification |
|---|---|
| Headlight | LED |
| Low beam | 400 lumens |
| High beam | 370 lumens |
| Turn signals | LED |
| Horn | Yes |
| Brake lever positioning | Left rear / Right front |
| Throttle | Full twist |
| Display | Product-specific display |
| Pedal drivetrain | Shimano single speed |
🚀 PERFORMANCE
5,300W Peak Output
The current Mini Goat product page lists 72V 5,300W peak power.
It is paired with a 60A controller and produces 175Nm of torque.
That gives the Mini Goat a very high-performance configuration despite its compact dimensions.
Important Power Specification
Goat's older official assembly material described the Mini Goat as 3,000W rated / 4,500W peak, while the current live product page now lists 5,300W peak. For current product marketing, the live product-page figure should take priority.
🔋 BATTERY PERFORMANCE
72V 30Ah
2,160Wh nominal energy
30 miles throttle-only
50 miles pedal assist
72V 40Ah
2,880Wh nominal energy
40 miles throttle-only
70 miles pedal assist
72V 50Ah
3,600Wh nominal energy
50 miles throttle-only
90 miles pedal assist
The larger 50Ah battery prioritizes range, while the manufacturer identifies the 30Ah configuration as the fastest.
🏁 TOP SPEED
The manufacturer publishes 55–60 MPH, with the fastest performance associated with the 30Ah battery and based on a 125 lb rider.
The Mini Goat ships with a 20 MPH factory speed setting.
Actual speed varies according to rider weight, terrain, battery condition, temperature, tire pressure and other conditions.
⛰️ HILL CLIMBING
The manufacturer does not publish a maximum hill-climbing angle for the Mini Goat.
However, its published:
5,300W peak power
175Nm torque
60A controller
and 72V electrical system
are designed around high-output acceleration and climbing capability.
Actual hill performance depends on rider weight, grade, surface, battery charge, temperature, tire pressure and riding conditions.
🌲 TERRAIN CAPABILITY
The Mini Goat's compact chassis is paired with:
-
3.50" × 16" front motocross tire
-
4.0" × 16" rear motocross tire
-
TRAMA inverted motorcycle fork
-
FASTACE dual coil-and-oil rear shocks
-
4-piston hydraulic brakes
-
180mm front rotor
-
203mm rear rotor
-
Aluminum frame
This hardware is suited to pavement and appropriate recreational mixed-surface/off-road riding.
The Mini Goat should not be represented as a competition dirt bike or motorcycle.
🆚 MINI GOAT VS. COMPETITORS
Compact & High-Performance E-Bike Comparison
| Specification | Mini Goat | Ride1Up Revv1 FS | SUPER73-Z Adventure LE |
|---|---|---|---|
| Motor | High-output electric motor | Bafang geared hub | Rear hub |
| Motor count | 1 | 1 | 1 |
| Current published peak power | 5,300W | Not published | Not published |
| Published rated/nominal power | Not published on current page | 1,000W | 600W nominal |
| Older Mini Goat rated power | 3,000W | — | — |
| Older Mini Goat peak | 4,500W | — | — |
| Torque | 175Nm | 100Nm | Not published |
| Controller | 60A | 52V 35A boost / 18 MOSFET | Not published |
| Battery options | 72V 30Ah / 40Ah / 50Ah | 52V 20Ah | 48V 15Ah |
| Battery energy | 2,160 / 2,880 / 3,600Wh | 1,040Wh | 720Wh |
| Battery cells | Not specified on current product page | Samsung 50E 21700 | UL2271-compliant |
| Top speed | 55–60 MPH | 28+ MPH | 20 MPH |
| Factory speed | 20 MPH | Class 2 / 20 MPH | 20 MPH |
| PAS range | 50 / 70 / 90 miles | 30–60 miles | 35–45 miles |
| Throttle-only range | 30 / 40 / 50 miles | 30–60 miles depending configuration | 35+ miles at 20 MPH |
| Charge time | Not officially specified | 6–7 hours | 7–8 hours |
| Front suspension | TRAMA inverted motorcycle fork | 120mm double-crown | Front only / rear rigid |
| Rear suspension | FASTACE dual coil/oil | DNM air or SR Suntour Raidon Air | Rigid |
| Rear suspension rating | 350 lb equivalent | Not published | Not applicable |
| Brakes | KARASAWA 4-piston hydraulic | LBN 4-piston hydraulic | Hydraulic |
| Front rotor | 180mm | 203mm | Not specified |
| Rear rotor | 203mm | 203mm | Not specified |
| Front tire | 3.50" × 16" | 20 × 4.0" | 4.5" |
| Rear tire | 4.0" × 16" | 20 × 4.0" | 5" |
| Frame | Aluminum | Durable alloy | Aluminum |
| Weight | 130 lbs | 93 lbs | 75 lbs |
| Rider/load limit | 400 lbs | 350 lbs | 325 lbs |
| Length | 69" | 72" | 68" |
| Width | 28.5" | Not specified in cited source | 28.5" |
| Height | 41.5" | 41" handlebar height | 43.5" |
| Seat height | 29.5" | 33" | 31" |
| Rider height | 5'0"–6'3" | 5'2"–6'4" | 5'1"–6'8" |
| Inseam | 24–34" | Size-dependent | Not specified |
| Pedal gearing | Shimano single-speed | Shimano/42T drivetrain | 8-speed |
| Throttle | Full twist | Right-hand twist | Thumb |
| Headlight | 400LM low / 370LM high | 120 LUX high/low | LED |
| Turn signals | Yes | Front/rear depending frame | Not specified |
| Horn | Yes | Yes | Yes |
| Full suspension | Yes | Yes | No |
Ride1Up's Revv1 FS is currently listed with a 1,000W Bafang motor, 100Nm torque, 52V 20Ah Samsung 50E battery, 28+ MPH capability, 30–60-mile range, 350 lb capacity, 93 lb weight, 120mm front fork, DNM/SR Suntour rear suspension, 4-piston 203mm hydraulic brakes and 20 × 4.0 tires.
SUPER73's Z Adventure LE is listed with a 600W nominal motor, 48V 15Ah / 720Wh battery, 20 MPH top speed, 35–45-mile range, 7–8-hour charge time, 75 lb weight, 325 lb rider limit, 31" seat height, aluminum frame, front suspension/rear rigid configuration and hydraulic brakes with 4.5"/5" tires.
Where the Mini Goat stands out
The Mini Goat occupies a very different performance category.
Its current published figures include:
5,300W peak
175Nm torque
72V battery system
Up to 50Ah / 3,600Wh
55–60 MPH published top speed
Up to 90 miles pedal assist
400 lb rider limit
That combination is substantially more performance-focused than conventional 600W–1,000W commuter/moped-style e-bikes.
🛡️ TRUST-BUILDING OWNERSHIP
🔐 Secure Checkout
Goat Power Bikes offers secure online checkout and financing through Affirm where eligible.
🚚 Free U.S. Shipping
Goat Power Bikes currently advertises free shipping to the contiguous United States.
🇺🇸 Customer Support
Goat provides human customer support by phone/text at (760) 908-2940.
Published support hours are Monday–Friday, 8:00 AM–4:00 PM PST, excluding statutory holidays.
🔧 Assembly
The Mini Goat requires assembly.
Goat Power Bikes provides a dedicated Mini Goat assembly video, bike manual, display manual and suspension manual.
Professional assembly is recommended if you are not comfortable working on high-power electrical and mechanical components.
🔍 Quality & Delivery Inspection
Inspect the bike immediately after delivery and before riding.
Check:
-
Frame
-
Fork
-
Wheels
-
Tires
-
Axles
-
Brake operation
-
Suspension hardware
-
Battery connection
-
Throttle
-
Display
-
Headlight
-
Turn signals
-
Horn
-
Pedals
-
Drivetrain
If shipping damage occurs, Goat asks customers to provide photographs within 48 hours of delivery so replacement parts can be arranged when applicable.
🧾 1-Year Limited Warranty
Goat Power Bikes provides a 1-year limited warranty covering manufacturer defects on non-wear parts.
Wear parts such as:
-
Brakes
-
Tires
-
Tubes
-
Chains
-
Grips
are excluded.
The warranty also excludes self-inflicted damage, misuse, neglect, accidents, normal wear and tear, aftermarket modifications and unauthorized repairs.
Warranty claims require video documentation of the issue, and labor costs are not covered.
🛡️ Goat Promise
If a confirmed qualifying manufacturer defect cannot be resolved after up to three warranty-part shipments, Goat states that it will replace the bike with the same or a comparable model under the Goat Promise terms.
❓ FREQUENTLY ASKED QUESTIONS
1. How long does the Mini Goat take to charge?
The current Mini Goat product page does not publish an exact official charge time.
Goat has separately published approximately 4 hours for a 50Ah Mini Goat in its battery guidance, but actual charge time depends on charger output, battery state, temperature and charging taper.
2. What battery options are available?
The Mini Goat is published with:
72V 30Ah
72V 40Ah
72V 50Ah
The corresponding nominal energy is approximately:
2,160Wh / 2,880Wh / 3,600Wh
3. How far can the Mini Goat travel?
Published range:
30Ah: 30 miles throttle / 50 miles pedal assist
40Ah: 40 miles throttle / 70 miles pedal assist
50Ah: 50 miles throttle / 90 miles pedal assist
Actual range varies with speed, rider weight, terrain, incline, temperature and riding style.
4. How fast is the Mini Goat?
The current product page lists 55–60 MPH, with the fastest performance associated with the 30Ah battery.
The published top-speed figure is based on a 125 lb rider.
The bike ships from the factory at 20 MPH.
5. How powerful is the motor?
The current product page lists 72V 5,300W peak and 175Nm torque.
An older Goat assembly article listed 3,000W rated / 4,500W peak, so customers should use the current product-page 5,300W peak figure as the current advertised specification.
6. Is the Mini Goat single or dual motor?
It uses one motor.
7. What suspension does it have?
It uses:
Front: TRAMA inverted motorcycle front fork
Rear: FASTACE dual coil-and-oil shocks
The rear suspension is listed as 350 lb equivalent rated.
8. What brakes does it have?
The Mini Goat uses KARASAWA 4-piston hydraulic disc brakes.
Rotor sizes:
Front: 180mm
Rear: 203mm
Brake controls:
Left = rear
Right = front
9. What is the maximum rider weight?
The published maximum rider weight is 400 lbs.
10. What rider height does it fit?
The Mini Goat has a 29.5-inch seat height.
It is designed for approximately:
24–34-inch inseam
5'0"–6'3" rider height
A compatible Motor Goat Seat Extension can raise the seat height for riders who prefer a higher riding position.
11. Can it ride off-road?
The Mini Goat uses 16-inch motocross-style tires, full suspension and hydraulic brakes, making it suited to appropriate recreational mixed-surface and off-road riding.
It should not be marketed as a competition dirt bike.
12. Is the Mini Goat waterproof?
The manufacturer does not publish an IP waterproof rating for the Mini Goat.
Do not represent the bike as waterproof or submersible. Avoid deep water and prolonged exposure to heavy rain or standing water.
13. Is it street legal?
Legal classification depends on location and operating configuration.
The Mini Goat ships configured at 20 MPH, while its higher-speed capability can reach 55–60 MPH.
Higher-speed operation may place the vehicle outside ordinary e-bike classifications.
Always check local requirements for:
-
E-bike classification
-
Speed limits
-
Registration
-
Licensing
-
Insurance
-
Helmet requirements
-
Public-road operation
14. Does it have pedals?
The product is offered in a Pedals configuration.
The pedal drivetrain uses a Shimano single-speed setup.
15. Does it have turn signals?
Yes. The Mini Goat includes LED turning signals.
16. Does it have a horn?
Yes. A horn is included.
17. Can I add another battery?
Yes. Goat sells a dedicated 72V 20Ah second battery kit for the Mini Goat that mounts in the top gas-tank-style position in front of the seat.
The kit includes a battery blender, charger, track mount and L-shaped cord.
18. Does it have high and low beam?
Yes.
Low beam: 400 lumens
High beam: 370 lumens
📦 WHAT'S IN THE BOX?
The Mini Goat is supplied with the factory components required for the selected configuration.
Standard Bike Components
-
🐐 Mini Goat electric bike
-
🔋 Selected 72V battery
-
⚡ Battery charging equipment
-
⚙️ High-output electric motor
-
🧠 60A controller
-
🌀 TRAMA inverted motorcycle front fork
-
🔧 FASTACE dual rear shocks
-
🛑 KARASAWA 4-piston hydraulic brakes
-
🛞 INNOVA motocross tires
-
🛞 Front 3.50" × 16" tire
-
🛞 Rear 4.0" × 16" tire
-
💡 LED high/low-beam headlight
-
↔️ LED turn signals
-
📯 Horn
-
📱 Display system
-
🪑 Mini Goat seat
-
⚙️ Shimano single-speed pedal drivetrain
-
🔧 Assembly hardware
-
📖 Owner/product documentation
Battery size depends on the configuration selected.
The optional second 72V 20Ah battery kit is sold separately.
🐐 THE MINI GOAT
SMALLER FRAME. SERIOUS POWER.
72V • 5,300W Peak • 175Nm • 55–60 MPH • Up to 3,600Wh • Up to 90-Mile PAS Range • 400 lb Capacity
The Mini Goat brings high-output electric performance into a more compact package.
With a 29.5-inch seat height, 400 lb rider limit, 5,300W peak published motor output, 175Nm torque, 60A controller, 72V battery platform, full motorcycle-style suspension, 4-piston hydraulic brakes, and 16-inch motocross tires, it is built for riders who want a smaller bike without settling for ordinary performance.
🐐 CHOOSE YOUR MINI GOAT
Compact dimensions. Serious performance. More accessible fit.
Choose your color and battery capacity, then select the configuration that matches how you actually ride.
