Ranger Fat Tire Electric Bike – All-Terrain Off-Road Ebike

Name: Ranger Fat Tire Electric Bike – All-Terrain Off-Road Ebike
Brand: velowavebikes
Price: 999.00 USD
Availability: InStock

Low stock: 1 left

$999.00 USD

Sale Sold out

Pay in 4 interest-free installments with Klarna

SKU:

Ranger

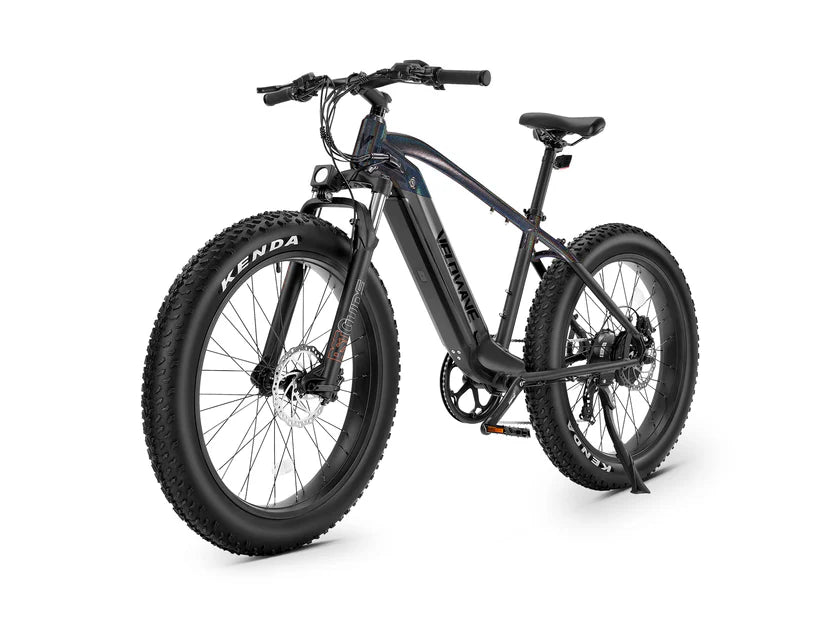

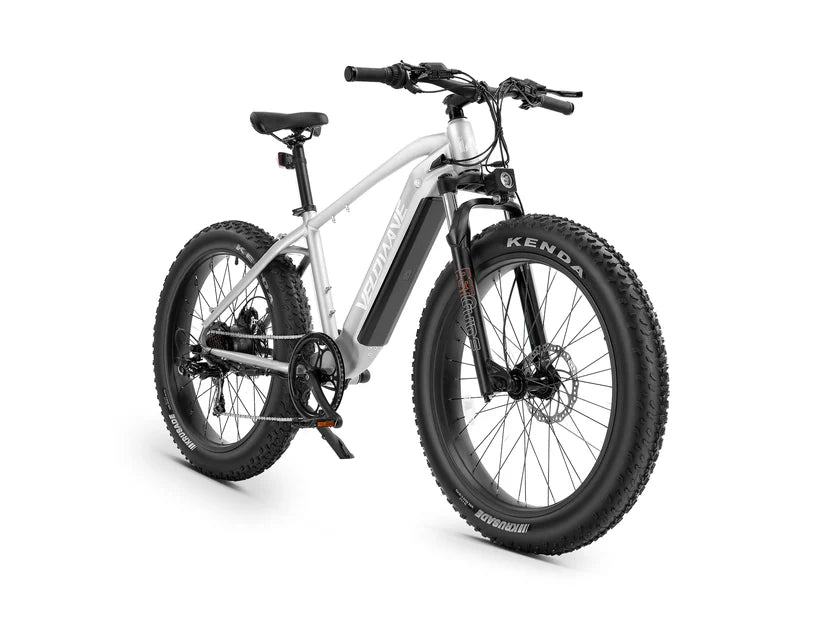

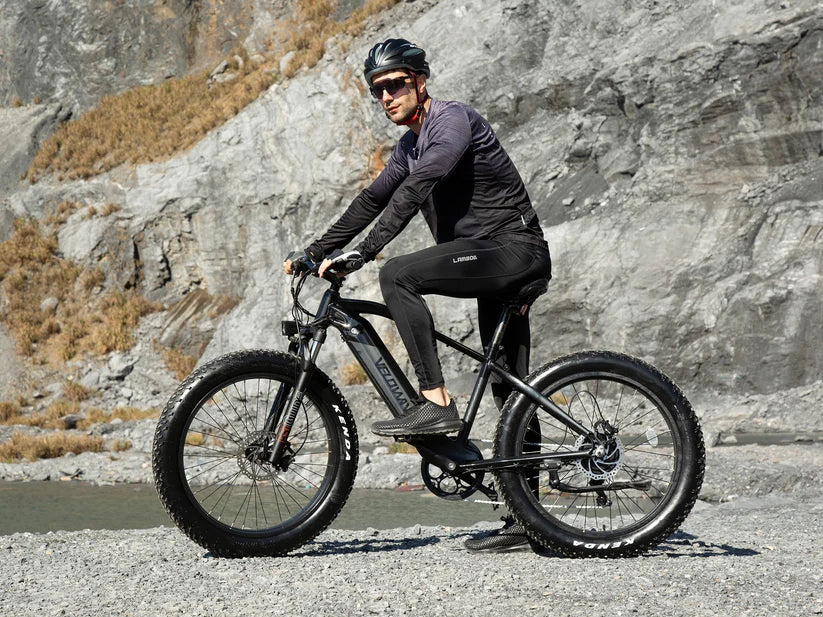

Discover the ultimate freedom with the Ranger, Velowave's flagship electric bike, expertly designed for thrilling adventures of up to 40 miles.
Equipped with a powerful 750W motor and 4" fat tires, it delivers exceptional performance on both bustling urban streets and challenging rugged trails, offers outstanding traction and stability.
The classic frame design optimizes your riding position, ensuring comfort and efficiency for long-distance travels.

Why settle for ordinary ? Experience the perfect fusion of versatility and range with the Ranger.

Key Features

Durable Aluminum Frame

Crafted from durable aluminum, this electric bicycle features a sleek design with advanced technology, ensuring longevity.

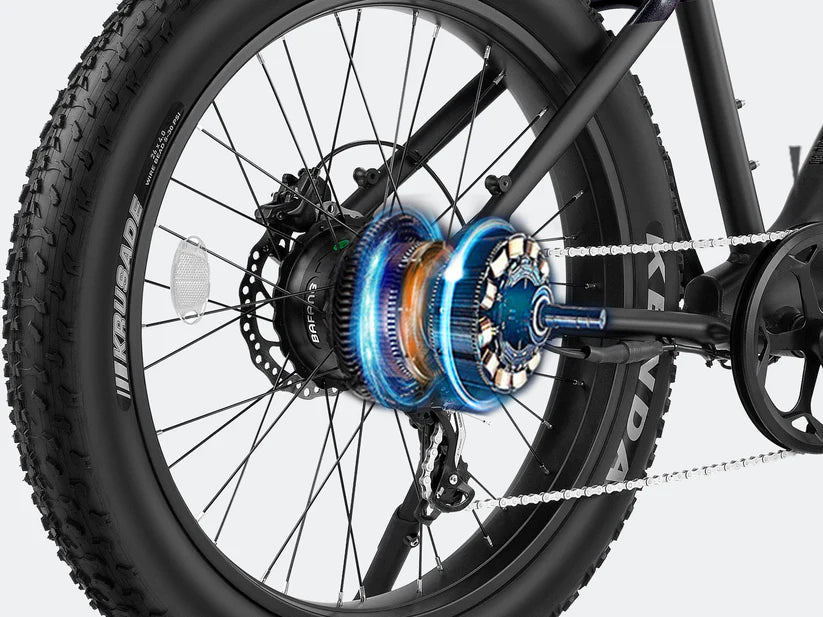

750W BAFANG Motor

Equipped with a high-performance 750W BAFANG geared hub motor, delivering strong power, low noise, and durability even in extreme conditions.

Front Suspension

Reduces frame vibrations on rough roads, providing a stable and comfortable ride for increased safety.

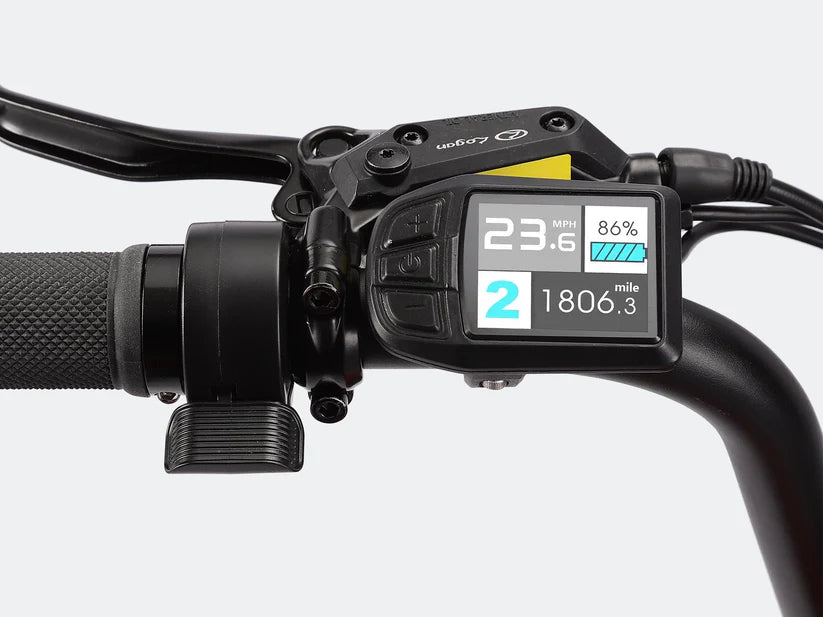

Smart Display

Versatile TFT color screen displays speed data, assist level, battery status, and mileage, ensuring easy readability day and night.

Convenient Control

Featuring multiple riding modes and a reliable hydraulic disc brake system for precise and efficient braking, ensuring a safe and enjoyable riding experience.

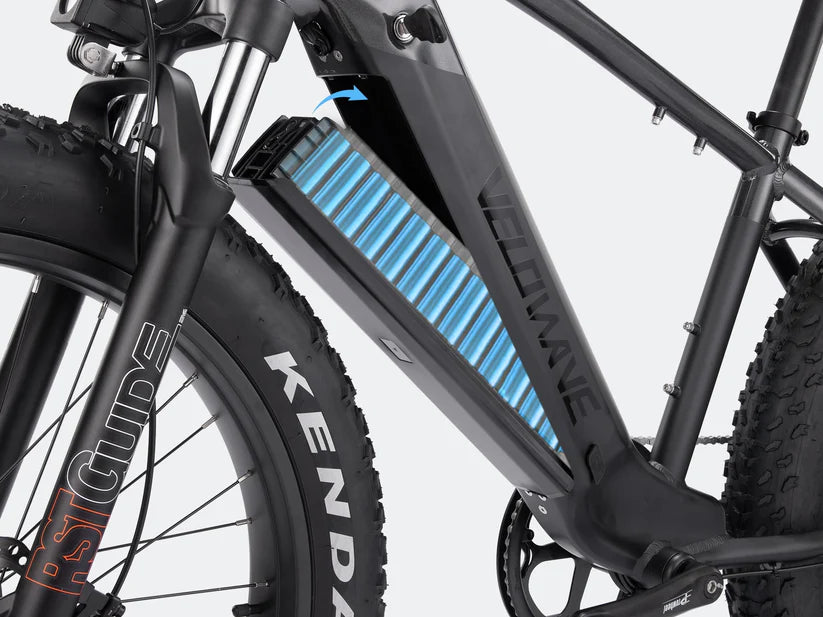

Long-lasting Battery

The high-quality 48V 15AH LG battery offers long-distance riding and fast charging, providing a maximum range of up to 40 miles on a single charge.

Fat Tire Design

Featuring 26"x4.0" anti-skid, wear-resistant fat tires, perfect for various terrains including snow and sand, offering a smooth riding experience on rugged landscapes.

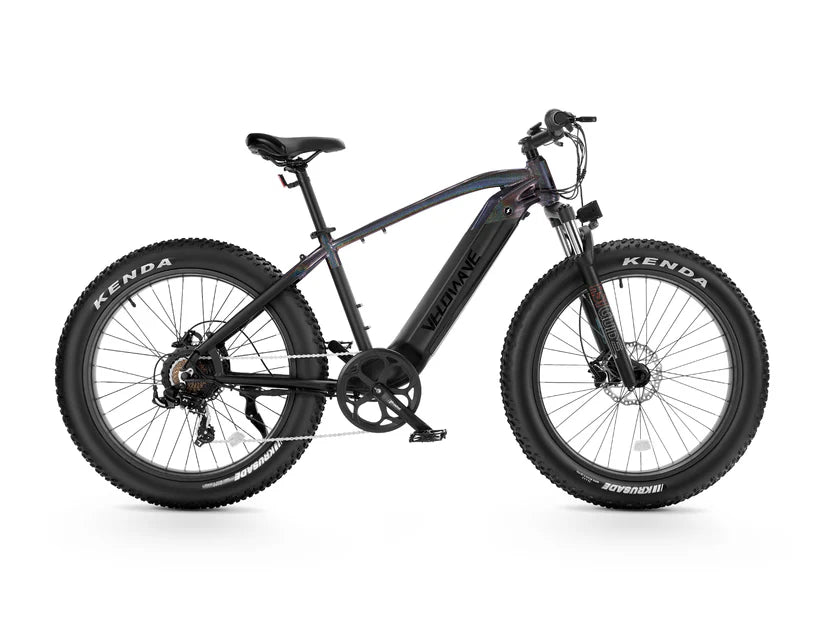

Ranger Fat Tire All-Terrain Electric Bike

Frame Size	Standard (mm)
Handlebar Height	1080mm
Reach	460mm
Head Tube Length	125mm
Seat Tube Length	457.2mm
Standover Height	768mm
Wheelbase	1188mm
Total Length	1940mm
Seat Height Min/Max	850mm/1084mm

General

Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
Max Speed:28MPH by pedal, 20MPH by throttle
Range:Avg. 40 Miles* on PAS, up to 40 Miles on Level 1, 35 Miles* on Throttle (Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)

Frameset

Frame:6061 Aluminium, Removable Battery, Internal Routing
Fork:Hydralic Suspension Fork

Wheels

Rim Material:Aluminum
Rim Size:26 x 3.0
Front Wheel Spokes:13K x 243
Rear Wheel Spokes:12K x 198
Tire:Kenda Fat Tires
Tire Size:26" x 4.0"

E-system

Battery:48V 15Ah, 720Wh, LG 21700 Cells
Charger:Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
Motor:BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 80NM
Controller:48V 25A Peak
Display:Multifunctional Color-Screen Display
Pedal Assist:Cadence Sensor
Throttle:Thumb Throttle
Front Light:48V 10W LED Light

Drivetrain

Shifter:Shimano, 7-Speed
Rear Derailleur:Shimano, Long Cage
Crank & Chainring:52T, 170mm Alloy Crank
Freewheel:7-Speed
Pedal:Alloy Platform Pedals

Components

Saddle:Comfortable Wide Saddle
Handlebar:Alloy, 705mm width
Grips:Nylon Lock-on
Brake:Front & Rear Hydralic Disc Brakes
Brake rotor:180mm, 1.9mm thick
Kickstand:Side Kickstand
Seatpost:Forged Alloy, Ø31.6*350mm
Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 100mm, RISE: ±6°
Handlebar:Aluminum Ø31.8mm, Width 680mm

Weight

Net Weight:32kg(70.5lb)
Gross Weight:43kg(94.8lb)
Battery Weight:3.85kg(8.5lb)
Weight limit:136kg (300lb) Payload Capacity

Size

Product Size:1946x1120x705mm
Packing Size:1570x350x825mm
