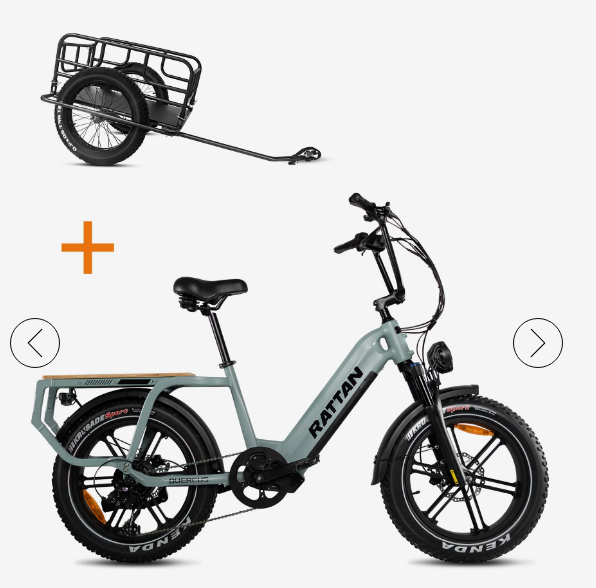

⚡ Rattan Quercus Premium Long-Range Utility E-Bike
Ride Farther. Carry More. Conquer Every Road.
The Rattan Quercus is a premium utility fat tire e-bike designed for riders who want serious power, exceptional range, and everyday versatility. With a 750W rear hub motor, 1500W peak output, 80Nm torque, and a massive 48V 20Ah Samsung battery, it's built for commuting, cargo hauling, weekend adventures, and everything in between.
Whether you're replacing car trips, exploring trails, or carrying groceries and gear, the Quercus delivers a smooth, confident ride with premium comfort and dependable performance.
🚴 Why Riders Love The Quercus
⚡ Powerful Acceleration
The 750W brushless rear hub motor delivers smooth power for everyday riding, while the 1500W peak output provides extra punch for quick starts and hill climbing.
🔋 Ride Longer Between Charges
Powered by a premium 48V 20Ah Samsung battery (960Wh), the Quercus offers up to 80 miles of range on a single battery and over 100 miles with the optional dual-battery setup.
⛰️ Conquer Hills With Confidence
With 80Nm of torque and a responsive torque sensor, the motor adjusts naturally to your pedaling effort for smooth climbing and efficient power delivery.
🛞 Go Beyond Pavement
The 20" x 4.0" Kenda fat tires provide stability and grip on pavement, gravel, dirt paths, grass, and light off-road terrain.
🛒 Built For Real Life
Whether you're commuting, carrying groceries, transporting gear, or riding with cargo, the impressive 450 lb payload capacity makes the Quercus exceptionally versatile.
🛡️ Ride Comfortably
The hydraulic suspension fork absorbs bumps and rough surfaces, helping reduce rider fatigue on longer rides.
✨ Key Features
⚡ 750W Motor | 1500W Peak Performance
-
750W Shengyi brushless geared rear hub motor
-
1500W peak power output
-
80Nm maximum torque
-
Top speed up to 30 MPH
-
Responsive torque sensor system
More power when you need it while maintaining smooth, predictable handling.
🔋 48V 20Ah Samsung Battery
-
48V battery system
-
20Ah capacity
-
960Wh total energy
-
Samsung 21700 battery cells
-
Up to 80 miles per charge
-
Optional dual-battery capability for 100+ mile range
Designed for long commutes, adventures, and fewer charging stops.
🛞 20" x 4" Fat Tire Stability
-
Kenda all-terrain tires
-
20-inch diameter
-
4-inch width
-
Magnesium alloy wheels
Confident handling across multiple riding surfaces.
🛑 Hydraulic Disc Braking System
-
Front 180mm hydraulic disc brake
-
Rear 180mm hydraulic disc brake
Strong stopping power with improved control in various weather conditions.
🔧 Shimano 8-Speed Drivetrain
-
Shimano 8-speed gear system
-
Smooth shifting performance
-
Better climbing and pedaling efficiency
Perfect for city streets and mixed terrain riding.
💡 Integrated Safety Features
-
Integrated front headlight
-
Rear brake light
-
Turn signal indicators
-
LCD color display
-
Mobile app connectivity
-
Wireless smartphone integration
Stay visible and informed on every ride.
📊 Full Technical Specifications
| Specification | Details |
|---|---|
| Model | Rattan Quercus |
| E-Bike Class | Class 3 |
| Motor Type | Brushless Geared Rear Hub Motor |
| Nominal Motor Power | 750W |
| Peak Motor Power | 1500W |
| Motor Voltage | 48V |
| Torque | 80Nm |
| Drive System | Rear Hub |
| Sensor | Torque Sensor |
| Battery | Samsung Lithium Battery |
| Battery Voltage | 48V |
| Battery Capacity | 20Ah |
| Battery Energy | 960Wh |
| Battery Cells | Samsung 21700 Cells |
| Optional Dual Battery | Yes |
| Maximum Range (Single Battery) | Up to 80 Miles |
| Maximum Range (Dual Battery) | 100+ Miles |
| Top Speed | 30 MPH |
| Charger | 4.5A Fast Charger |
| Charging Time | 4–5 Hours |
| Throttle | Thumb Throttle |
| Pedal Assist | 3 Modes / 5 Levels |
| Transmission | Shimano 8-Speed |
| Display | LCD Color Display |
| App Connectivity | Yes |
| Wheel Size | 20 Inch |
| Tire Size | 20" x 4.0" Kenda Fat Tires |
| Wheel Material | Magnesium Alloy |
| Suspension | Hydraulic Front Suspension Fork |
| Brake Type | Hydraulic Disc Brakes |
| Brake Rotor Size | 180mm Front / 180mm Rear |
| Frame Style | Step-Through Utility Frame |
| Frame Material | Aluminum Alloy Frame |
| Payload Capacity | 450 lbs |
| Rider Height | 5'3" – 6'5" |
| Bike Weight | 71 lbs |
| Battery Weight | 11 lbs |
| Total Weight | 82 lbs |
| Lighting | Integrated Front & Rear Lights |
| Turn Signals | Yes |
| Certification | UL 2849 Certified |
🚀 Performance Overview
The Rattan Quercus is engineered for riders who demand both power and practicality.
⚡ Motor Performance
-
750W continuous motor output
-
1500W peak power
-
80Nm torque
-
Rear hub drive system
🔋 Battery Performance
-
48V 20Ah Samsung battery
-
960Wh capacity
-
Up to 80 miles per charge
-
Optional 100+ mile dual battery setup
🏔️ Hill Climbing
The combination of 80Nm torque, torque sensor technology, and 1500W peak power helps tackle steep inclines with greater confidence.
🌎 Terrain Capability
-
City streets
-
Bike paths
-
Gravel roads
-
Dirt trails
-
Grass
-
Light off-road riding
⚖️ Rattan Quercus vs Competitors
| Feature | Rattan Quercus | RadRunner 3 Plus | Aventon Abound |
|---|---|---|---|
| Motor Power | 750W | ||
| Peak Power | 1500W | Lower Peak Output | Lower Peak Output |
| Torque | 80Nm | Lower | Lower |
| Battery | 48V 20Ah (960Wh) | Smaller Capacity | Smaller Capacity |
| Top Speed | 30 MPH | 20 MPH | 20 MPH |
| Tire Size | 20" x 4" Fat Tires | 20" Tires | 20" Tires |
| Suspension | Hydraulic Fork | Basic Suspension | Basic Suspension |
| Brakes | Hydraulic Disc | Hydraulic Disc | Hydraulic Disc |
| Payload Capacity | 450 lbs | Lower | Lower |
| Range | Up to 80 Miles | Lower | Lower |
| Dual Battery Option | Yes | No | No |
🛡️ Shop With Confidence
🔒 Secure Checkout
Your payment information is protected through secure encrypted checkout systems.
🚚 Fast Shipping
Orders are processed quickly and shipped directly from the warehouse.
💬 Dedicated Customer Support
Friendly support is available to help before and after your purchase.
🔍 Quality Inspection
Every bike undergoes inspection before shipment to help ensure quality and reliability.
🏆 Warranty Coverage
Includes manufacturer warranty coverage for added peace of mind.
📦 What's Included In The Box
-
Rattan Quercus E-Bike
-
48V 20Ah Samsung Battery
-
4.5A Fast Charger
-
Integrated Rear Rack
-
Front Headlight
-
Rear Taillight
-
Pedals
-
User Manual
-
Assembly Tools
-
Keys for Battery
❓ Frequently Asked Questions
How long does charging take?
The included 4.5A fast charger fully charges the battery in approximately 4–5 hours.
What is the top speed?
The Quercus can reach speeds of up to 30 MPH.
How far can I ride on one charge?
Up to 80 miles with the standard battery depending on rider weight, terrain, weather, and assist level.
Can I increase the range?
Yes. An optional second battery can extend total range to 100+ miles.
Does the bike arrive assembled?
The bike arrives partially assembled and requires basic final assembly.
What rider height fits this bike?
Recommended rider height is approximately 5'3" to 6'5".
Can it handle hills?
Yes. The 80Nm torque motor and torque sensor provide strong hill-climbing capability.
Is a license required?
Requirements vary by location. Check local regulations regarding Class 3 e-bikes.
Is it waterproof?
The bike is designed to handle normal outdoor riding conditions, but should not be submerged in water or pressure washed.
Ready For Every Ride
Whether you're commuting to work, hauling cargo, exploring trails, or simply enjoying the freedom of electric biking, the Rattan Quercus delivers the power, range, comfort, and reliability serious riders demand.
🚴 Experience Long Range. Premium Comfort. Real Utility.
Order your Rattan Quercus today and discover a smarter way to ride.
