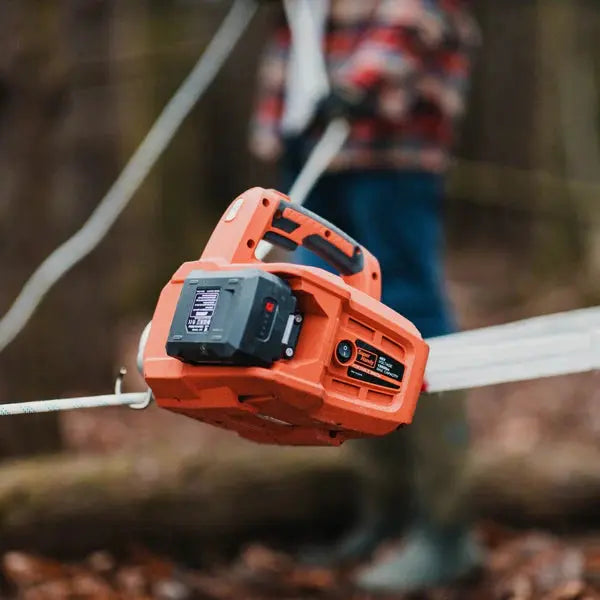

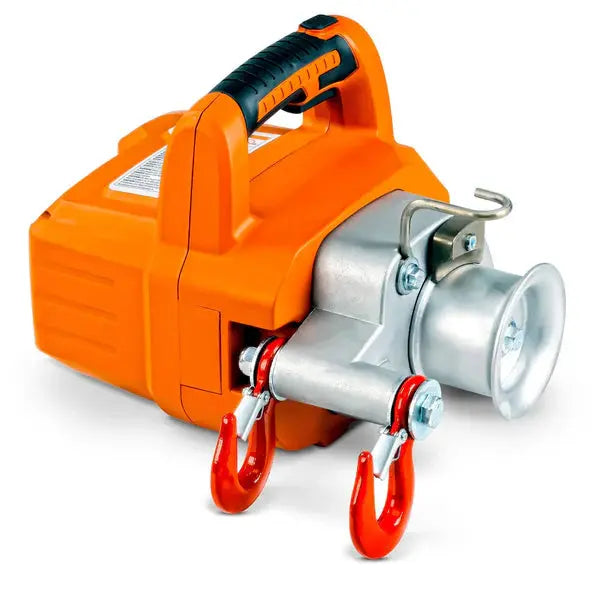

⚡ SuperHandy Electric Capstan Winch GUO076
Portable 48V Pulling Power Built For Serious Outdoor Work
Take on demanding pulling, hauling, recovery, and forestry jobs with the SuperHandy Electric Capstan Winch GUO076. Powered by a high-performance 48V 1296W brushless motor, this portable cordless winch delivers up to 1,000 lbs single-line pulling force and 2,000 lbs double-line pulling force while maintaining smooth, controlled operation.
Designed for forestry professionals, landowners, off-road enthusiasts, hunters, contractors, and outdoor workers who need powerful portable winching without fuel, cords, or excessive maintenance.
🌲 Powerful Pulling Without The Bulk
Traditional winches can be heavy, restrictive, and difficult to transport.
The SuperHandy Electric Capstan Winch combines cordless convenience, high pulling capacity, and a lightweight portable design that lets you work virtually anywhere. Whether you're pulling logs, recovering equipment, moving materials, or handling tough outdoor projects, this winch delivers dependable performance with minimal setup.
✅ Real-World Benefits
💪 Pull Heavy Loads With Confidence
Generate up to 1,000 lbs of pulling force on a single line or 2,000 lbs with a double-line setup.
🔋 True Cordless Freedom
Powered by a removable 48V 2Ah lithium-ion battery for portable operation without generators or extension cords.

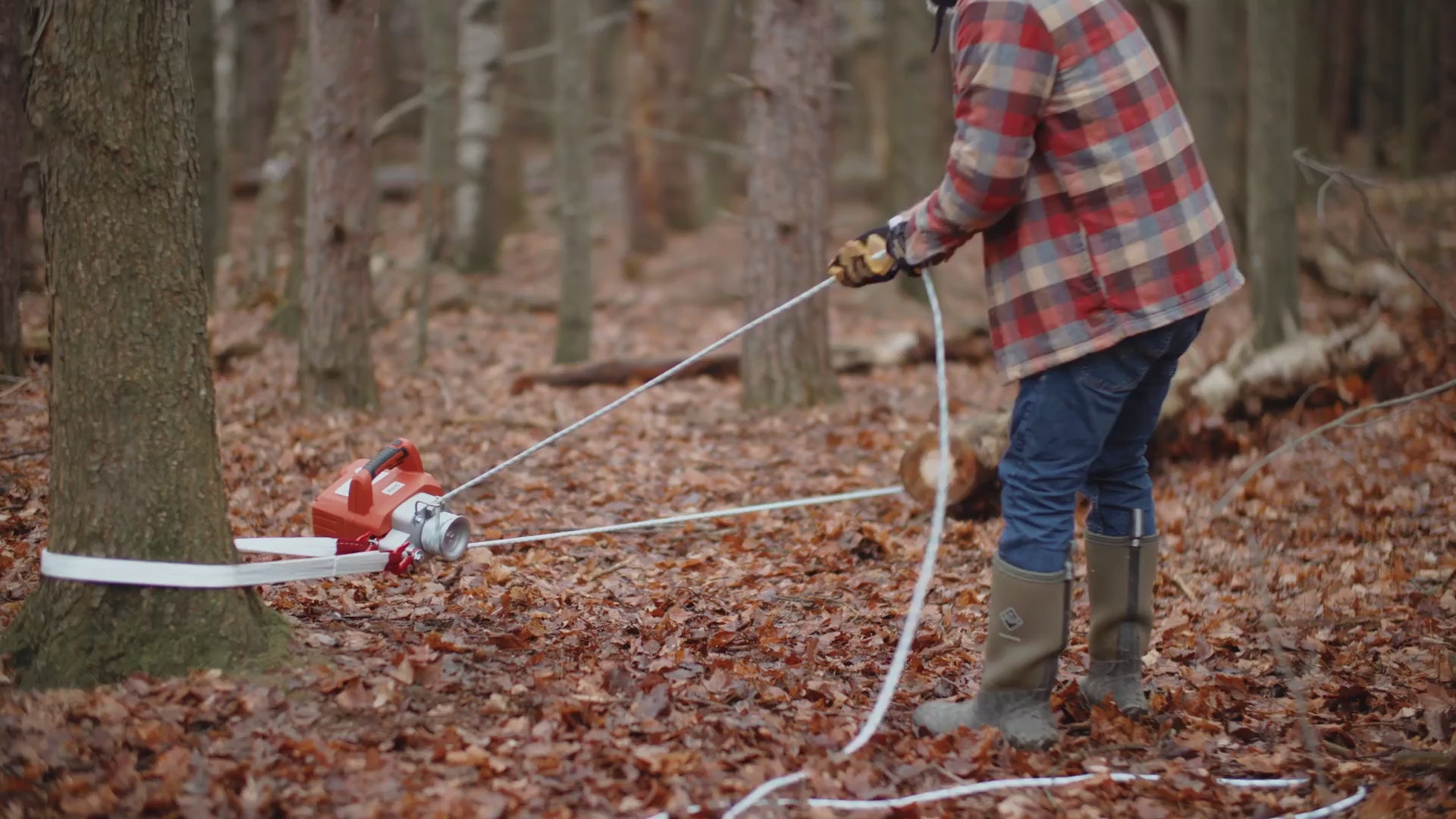

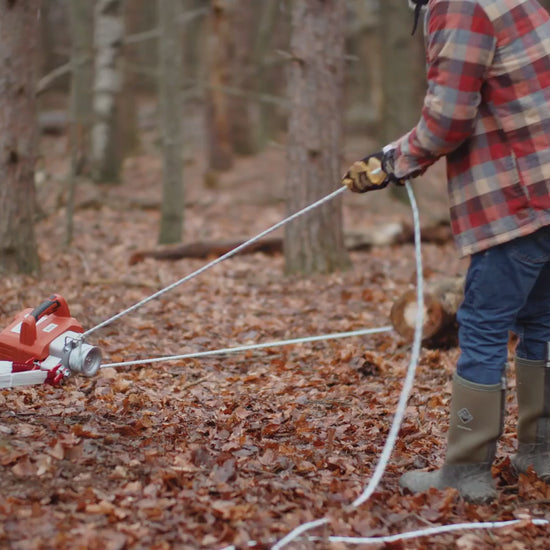

🌲 Ideal For Forestry & Land Management
Perfect for pulling logs, clearing trails, moving brush, and handling outdoor property maintenance.
🚙 Excellent For Off-Road Recovery
Provides reliable pulling power for vehicle recovery, equipment movement, and rugged outdoor applications.
⚡ Fast Setup & Instant Start
Electric instant-start system eliminates fuel mixing, pull cords, and engine maintenance.
🔥 Key Features
⚙️ 1296W High-Performance Brushless Motor
Features a powerful 48V brushless electric motor producing up to 1296 watts of peak power.
Why it matters: Delivers strong pulling force while remaining efficient and maintenance-free.

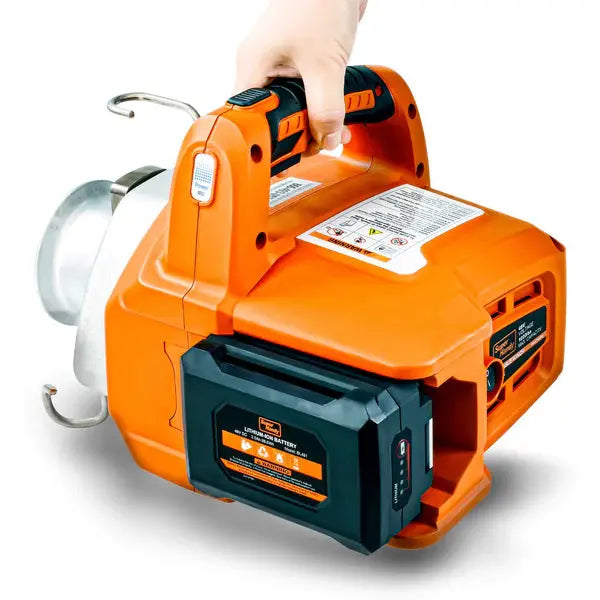

🔋 48V 2Ah Lithium-Ion Battery System
Runs on a removable 48V 2Ah Li-Ion battery pack.
Why it matters: Lightweight cordless power with fast battery swapping for extended jobs.

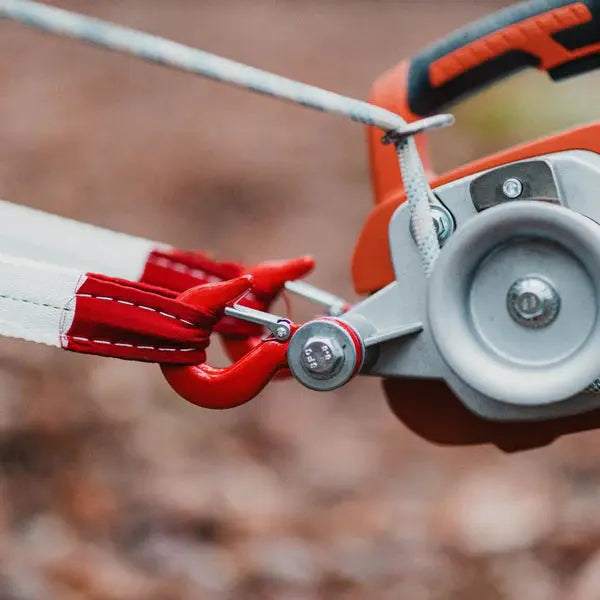

🪢 100-Foot Low-Stretch Rope Included
Comes equipped with a 100-foot low-stretch rope designed for controlled pulling performance.
Why it matters: Improves safety, precision, and pulling efficiency under load.
🚀 26 Feet Per Minute Pulling Speed
Provides approximately 26 ft/min line speed.
Why it matters: Faster job completion while maintaining controlled operation.
🛠️ Steel Planetary Gear Drive
Built with heavy-duty steel gearing.
Why it matters: Increased durability and long-term reliability under demanding workloads.
❄️ Extreme Weather Capability
Operates in temperatures as low as -30°C (-22°F).
Why it matters: Dependable performance in harsh outdoor environments.
🎒 Lightweight Portable Design
Weighs approximately 25–27 lbs depending on configuration.
Why it matters: Easy transportation between worksites, trails, vehicles, and remote locations.
📊 Full Technical Specifications
| Specification | Details |
|---|---|
| Product Name | SuperHandy Electric Capstan Winch |
| Model | GUO076 |
| Winch Type | Portable Electric Capstan Winch |
| Motor Type | Brushless Electric Motor |
| Motor Configuration | Single Motor |
| Motor Voltage | 48V |
| Peak Motor Power | 1296W |
| Battery Voltage | 48V |
| Battery Type | Lithium-Ion |
| Battery Capacity | 2Ah |
| Pulling Force (Single Line) | 1,000 lbs |
| Pulling Force (Double Line) | 2,000 lbs |
| Maximum Pulling Force With Block & Tackle Setup | Up to 4,000 lbs |
| Pulling Speed | 26 ft/min |
| Rope Length Included | 100 ft |
| Rope Diameter | 3/8" (10mm–12mm) |
| Rope Type | Low-Stretch Rope |
| Gear System | Steel Planetary Gears |
| Operating Temperature | Down to -30°C |
| Start System | Instant Electric Start |
| Power Source | Battery Powered |
| Charger Included | Yes |
| Battery Included | Yes |
| Frame Material | Alloy Steel |
| Product Weight | Approximately 25–27.2 lbs |
| Product Dimensions | Approx. 14.5" × 14.2" × 10.3" |
| Color | Orange / Black |
| Warranty | 1-Year Limited Warranty |
🚀 Performance Breakdown
⚡ Motor Performance
-
1296W Peak Brushless Motor
-
48V Electric Drive System
-
Single motor configuration
-
Maintenance-free brushless technology
🔋 Battery System
-
48V Lithium-Ion Battery
-
2Ah Capacity
-
Removable battery design
-
Quick battery replacement capability
🪢 Pulling Power
-
1,000 lbs Single-Line Pulling Force
-
2,000 lbs Double-Line Pulling Force
-
Up to 4,000 lbs with proper block & tackle setup
🚀 Pulling Speed
-
Up to 26 feet per minute
🌎 Terrain & Environment Capability
Ideal for:
-
Forestry operations
-
Off-road recovery
-
Hunting properties
-
Ranches
-
Farms
-
Construction sites
-
Landscaping projects
-
Remote outdoor environments
❄️ Extreme Conditions
Designed to perform in temperatures down to -30°C.
🏆 Comparison Table
| Feature | SuperHandy GUO076 | Traditional Gas Capstan Winch | Basic Electric Winch |
|---|---|---|---|
| Motor Power | 1296W Brushless | Gas Engine | 500–800W |
| Battery System | 48V 2Ah Li-Ion | None | 12V–24V |
| Pulling Force | 1,000–2,000 lbs | Similar | Lower |
| Max Pulling Setup | Up to 4,000 lbs | Varies | Limited |
| Rope Included | 100 ft | Often Separate | Shorter Length |
| Pulling Speed | 26 ft/min | Varies | Slower |
| Instant Start | ✅ Yes | ❌ Pull Start | |
| Maintenance Required | Minimal | High | Moderate |
| Extreme Weather Operation | ✅ Down to -30°C | Varies | Limited |
📦 What's Included In The Box
-
SuperHandy Electric Capstan Winch GUO076
-
48V 2Ah Lithium-Ion Battery
-
Battery Charger
-
100-Foot Low-Stretch Rope
-
Tree Strap
-
User Manual
🛡️ Shop With Confidence
🔒 Secure Checkout
Protected payment processing helps keep your information secure.
🚚 Reliable Shipping
Carefully packaged and inspected before dispatch.
💬 Dedicated Customer Support
Responsive support team available for setup and product assistance.
🔍 Quality-Control Inspection
Every unit undergoes inspection before shipment.
🛠️ Warranty Coverage
Includes a 1-Year Limited Manufacturer Warranty against defects in workmanship and materials.
❓ Frequently Asked Questions
1. How much weight can this winch pull?
The winch delivers 1,000 lbs single-line pulling force and 2,000 lbs double-line pulling force.
2. What battery does it use?
It uses a removable 48V 2Ah lithium-ion battery.
3. Is a battery and charger included?
Yes. Both the battery and charger are included in the package.
4. How fast does it pull?
The line speed is approximately 26 feet per minute.
5. Can it be used for forestry work?
Yes. It's designed for forestry, hunting, landscaping, construction, and off-road recovery applications.
6. Is assembly required?
Minimal setup is required before first use.
7. Is it waterproof?
The winch is designed for outdoor use, but should not be submerged in water or exposed to excessive moisture for prolonged periods.
8. Can I use longer rope?
Yes. The capstan design allows for extended rope usage beyond the included 100-foot rope when properly configured.
🌲 Portable Power For Serious Pulling Jobs
The SuperHandy Electric Capstan Winch GUO076 combines a 48V lithium battery platform, 1296W brushless motor, 1,000–2,000 lb pulling force, and lightweight portability into a professional-grade winching solution built for real-world outdoor work.
Whether you're working deep in the woods, managing property, handling recovery operations, or moving heavy materials, this winch delivers reliable cordless pulling power wherever the job takes you.
⚡ Pull Harder. Work Smarter. Go Anywhere.
