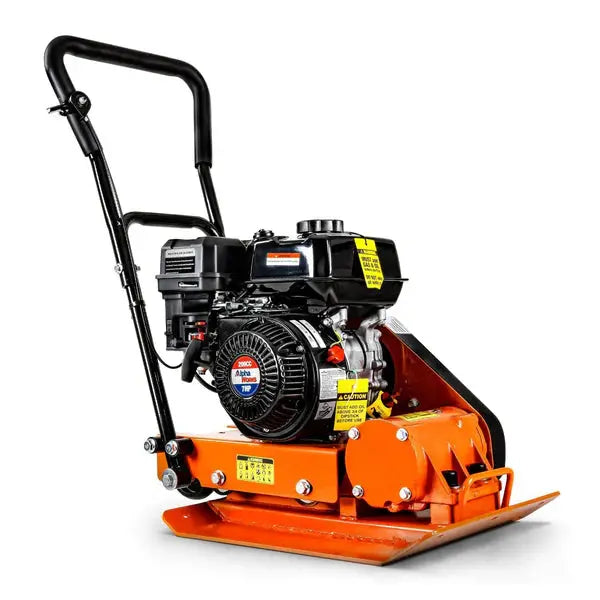

SuperHandy Plate Compactor - 7HP 209CC, 12" Max Tamper Depth
Professional-Grade 4200 lb Compaction Force for Foundations, Driveways & Heavy-Duty Ground Preparation
Built for contractors, landscapers, and serious property owners, the SuperHandy Plate Compactor GUO039 delivers powerful ground compaction with a 7HP 209CC 4-Stroke OHV Gas Engine, an impressive 4200 lb centrifugal compaction force, and up to 12 inches of tamping depth.
Whether you're preparing foundations, compacting gravel, leveling soil, installing pavers, or working on asphalt projects, this heavy-duty plate compactor provides reliable performance, excellent maneuverability, and contractor-grade durability.
⚡ Stronger Compaction. Better Foundations. Faster Results.
A weak foundation leads to shifting, cracking, and costly repairs. The SuperHandy Plate Compactor is engineered to create dense, stable surfaces that improve long-term project durability.
✅ Powerful 4200 lb Compaction Force
Delivers deep, effective compaction across multiple surface types.
✅ 12-Inch Tamping Depth
Creates stronger base layers for patios, sidewalks, foundations, and landscaping projects.
✅ High-Speed Performance
Operates at 5500 vibrations per minute (VPM) for efficient material compression.
✅ Reduced Operator Fatigue
Integrated shock-absorption system minimizes vibration transfer during operation.
✅ Built for Demanding Job Sites
Heavy-duty steel construction stands up to daily professional use.
🔥 Key Features
⛽ 7HP 209CC 4-Stroke OHV Gas Engine
At the heart of the machine is a powerful 209CC single-cylinder OHV engine producing 7 horsepower (5kW) and operating at 3600 RPM.
Why It Matters:
-
Consistent compaction power
-
Excellent reliability
-
Smooth operation under load
-
Ideal for construction and landscaping applications
💥 Massive 4200 lb Centrifugal Force
Designed to compact tough materials quickly and efficiently.
Perfect For:
-
Gravel
-
Soil
-
Crushed stone
-
Asphalt preparation
-
Paver base installation
-
Trench backfill
📏 12-Inch Maximum Compaction Depth
Compacts deeper than many entry-level compactors.
Benefits:
-
Better load-bearing foundations
-
Reduced future settling
-
Improved structural stability
-
Professional-grade results
🏗️ Heavy-Duty 20" x 15" Steel Plate
The oversized 20-inch by 15-inch steel base plate provides excellent surface coverage while maintaining strong compaction pressure.
Advantages:
-
Faster project completion
-
Better compaction consistency
-
Increased productivity
🛡️ Advanced Shock Absorption System
Specially engineered vibration isolation system helps improve comfort during operation.
Benefits:
-
Reduced hand fatigue
-
Better machine control
-
Increased operator comfort
-
Longer working sessions
🛞 Built-In Transport Wheels
Integrated wheel kit makes moving the machine around the job site much easier.
Ideal For:
-
Contractors
-
Landscaping crews
-
Residential projects
-
Commercial construction
📊 Full Technical Specifications
| Specification | Details |
|---|---|
| Brand | SuperHandy |
| Model | GUO039 |
| Product Type | Plate Compactor |
| Engine Type | 4-Stroke OHV Single Cylinder Gas Engine |
| Engine Displacement | 209CC |
| Engine Power | 7 HP |
| Maximum Power Output | 5kW |
| Engine Speed | 3600 RPM |
| Fuel Type | Gasoline |
| Starting System | Recoil Pull Start |
| Compaction Force | 4200 lbs |
| Centrifugal Force | 4200 lbf |
| Maximum Tamping Depth | 12 Inches |
| Vibrations Per Minute (VPM) | 5500 VPM |
| Exciter Speed | 5500 VPM |
| Plate Size | 20" × 15" |
| Plate Material | Heavy-Duty Steel |
| Frame Material | Alloy Steel |
| Machine Weight | 134 lbs |
| Transport Wheels | Yes |
| Shock Absorption System | Yes |
| Handle Type | Folding Handle |
| Soil Compatibility | Soil, Gravel, Sand, Asphalt Base |
| Overall Footprint | Approx. 26" × 18.5" |
| Power Source | Gas Engine |
| Electric Motor | None |
| Battery Required | No |
| Charging Time | Not Required |
| Suspension | None |
| Brake System | None |
| Waterproof Rating | Not Specified |
| Warranty | 1-Year Limited Warranty |
🚀 Performance Overview
🔥 Engine Performance
The powerful 7HP 209CC OHV engine delivers dependable performance across demanding construction and landscaping projects.
Engine Specifications:
-
7 Horsepower
-
209CC displacement
-
5kW maximum output
-
3600 RPM operating speed
💥 Compaction Performance
Built for serious ground preparation.
Performance Numbers:
-
4200 lbs compaction force
-
5500 vibrations per minute
-
12-inch compaction depth
-
20" × 15" steel plate
🌎 Terrain Capability
Ideal for:
-
Gravel driveways
-
Foundation preparation
-
Sidewalk installation
-
Landscaping projects
-
Asphalt base preparation
-
Paver installation
-
Soil stabilization
-
Trench compaction
⚠️ Important Product Note
This product is a gas-powered plate compactor, not an electric vehicle or mobility device.
The following specifications do not apply and are intentionally excluded for accuracy:
-
Battery voltage
-
Battery Ah rating
-
Motor wattage
-
Top speed
-
Riding range
-
Charging time
-
Suspension type
-
Torque ratings
-
Brake systems
All listed specifications reflect the actual manufacturer-provided product data.
📈 SuperHandy vs Competitors
| Feature | SuperHandy GUO039 | WEN 56035T | Tomahawk JXPC50H |
|---|---|---|---|
| Engine Size | 209CC | 196CC | 163CC |
| Horsepower | 7 HP | 6.5 HP | 5.5 HP |
| Compaction Force | 4200 lbs | 4500 lbs | 3000 lbs |
| Tamping Depth | 12" | 18" | 10" |
| Plate Size | 20" × 15" | 20.5" × 14.5" | 20" × 14" |
| Vibration Isolation | ✅ | ⚠️ Basic | ⚠️ |
| Transport Wheels | ✅ | ❌ | ⚠️ Optional |
| Steel Frame Construction | ✅ | ✅ | ✅ |
| Contractor Grade | ✅ | ⚠️ | ⚠️ |
| Value for Money | ✅ Excellent | Good | Moderate |
🛡️ Shop With Confidence
🔒 Secure Checkout
Protected checkout with encrypted payment processing.
🚚 Fast & Reliable Shipping
Carefully packaged and inspected before shipment.
🏗️ Quality-Control Inspected
Each machine undergoes inspection before leaving the warehouse.
📞 Responsive Customer Support
Dedicated support team available to assist with setup and operation questions.
🛠️ Warranty Protection
Backed by a 1-Year Limited Warranty for added peace of mind.
📦 What's Included In The Box?
-
1 × SuperHandy Plate Compactor Chassis
-
7HP 209CC Gas Engine Assembly
-
Folding Handle
-
Handle Bracket
-
Wheel Kit Assembly
-
Assembly Hardware
-
Operator Manual
❓ Frequently Asked Questions
Does this require electricity?
No. The compactor is powered by a 209CC 7HP gasoline engine.
How deep can it compact?
The machine provides up to 12 inches of compaction depth depending on material conditions.
What materials can it compact?
It is suitable for:
-
Soil
-
Gravel
-
Sand
-
Crushed stone
-
Asphalt base layers
Does it include transport wheels?
Yes. Built-in wheels make transportation around the job site easier.
Is assembly required?
Minimal assembly is required before operation.
How much compaction force does it generate?
The machine delivers 4200 lbs of centrifugal compaction force.
Is it suitable for driveway preparation?
Absolutely. It's ideal for:
-
Driveways
-
Walkways
-
Patios
-
Paver installations
-
Foundation work
Does it require a special license?
No. Standard operation does not typically require licensing, though users should always follow local safety regulations.
Can it be used on asphalt?
Yes. It can be used for asphalt preparation and related compaction work.
🏆 Professional Compaction Performance Without Compromise
From foundation preparation and paver installations to gravel driveways and landscaping projects, the SuperHandy GUO039 Plate Compactor delivers the force, durability, and efficiency professionals demand.
Powered by a 7HP 209CC engine, producing 4200 lbs of compaction force, operating at 5500 VPM, and compacting up to 12 inches deep, it's engineered to help you build stronger surfaces with confidence.
Compact deeper. Work faster. Build stronger.
