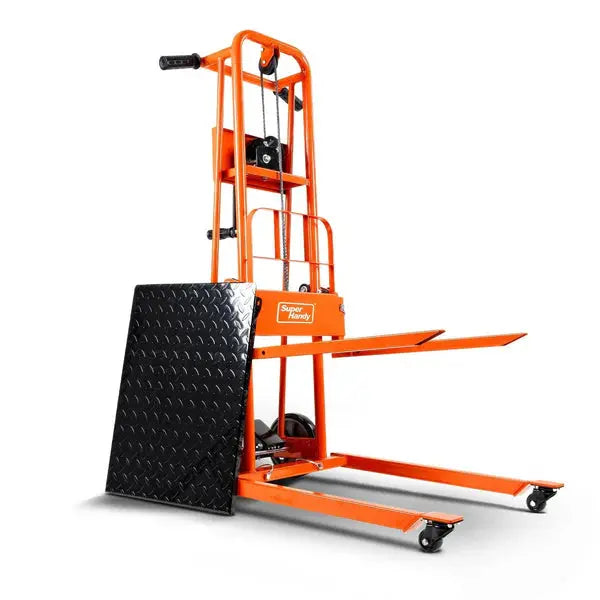

SuperHandy Material Lift Stacker & Pallet Dolly - 330Lb Max Weight, 40" Lift Height
Built for warehouses, workshops, delivery operations, and material handling professionals who need reliable lifting power without the size and cost of a forklift.
The SuperHandy GUO097 Material Lift Stacker combines a 330 lb lifting capacity, 40-inch maximum lift height, and a compact maneuverable design to help you safely lift, transport, load, and position heavy materials with less physical strain. Designed with a durable steel frame, manual winch system, and dual-function stacker/hand truck capability, it's the ideal solution for efficient material handling.
💪 Why Professionals Choose the GUO097
🏗️ Lift Up To 330 lbs With Confidence
Move equipment, boxes, appliances, inventory, tools, and materials safely using the heavy-duty lifting platform.
📦 2-In-1 Stacker & Hand Truck Design
Use it as a vertical lift stacker or convert it into a transport dolly for greater versatility.
⚙️ Labor-Saving Manual Winch System
Lift loads up to 40 inches (1000mm) with controlled operation and reduced physical effort.
🚚 Excellent Mobility In Tight Spaces
Compact dimensions and swivel caster wheels make warehouse navigation easier.
🛡️ Stable & Secure Handling
Integrated wheel locking system helps improve stability during loading and unloading.
🏭 Built For Daily Commercial Use
Heavy-duty steel construction delivers durability for demanding warehouse and workshop environments.
✨ Key Features
⚙️ 330 lb Heavy-Duty Load Capacity
Engineered to safely handle materials weighing up to 330 lbs (150 kg).
Why It Matters:
Move heavy inventory and equipment without relying on oversized lifting machinery.
📏 40" Maximum Lift Height
Raises loads from 3.14" to 39.37" (80mm–1000mm).
Why It Matters:
Makes loading, positioning, stacking, and workstation transfers easier.
🔄 Dual Working Modes
Functions as both:
✔ Material Lift Stacker
✔ Hand Truck / Transport Dolly
Why It Matters:
One machine handles multiple warehouse tasks.
🛞 8" Polyurethane Wheels
Equipped with durable 8-inch solid polyurethane wheels and swivel caster wheels.
Why It Matters:
Improves maneuverability while maintaining stability under load.
🛡️ Locking Wheel System
Includes wheel locks for safer loading and stationary operation.
Why It Matters:
Helps reduce unwanted movement during lifting tasks.
🏗️ Heavy-Duty Steel Frame
Constructed using reinforced industrial-grade steel.
Why It Matters:
Designed for long-term reliability in commercial environments.
📦 Removable Steel Platform
Includes both fork lifting and flatbed loading options.
Why It Matters:
Greater flexibility for handling different load types.
📋 Full Technical Specifications
| Specification | Details |
|---|---|
| Model | GUO097-FBA |
| Product Type | Material Lift Stacker & Pallet Dolly |
| Operation Type | Manual Winch Lift |
| Maximum Load Capacity | 330 lbs (150 kg) |
| Maximum Lift Height | 40" (1000 mm) |
| Minimum Lift Height | 3.14" (80 mm) |
| Lift Range | 3.14" – 39.37" (80–1000 mm) |
| Load Modes | Fork Lift / Flatbed Platform |
| Fork Size | 23.62" × 17.71" (600 × 450 mm) |
| Platform Size | 23.42" × 17.79" (595 × 452 mm) |
| Rear Wheel Size | 8" |
| Wheel Type | Solid Polyurethane Wheels |
| Front Wheels | Swivel Caster Wheels |
| Locking Wheels | Yes |
| Brake System | Manual Wheel Lock Brake |
| Frame Material | Heavy-Duty Steel |
| Removable Platform | Yes |
| Product Weight | 79 lbs (36 kg) |
| Shipping Weight | 95 lbs |
| Product Dimensions | 38.2" × 23.6" × 51.2" |
| Packaging Dimensions | 52.7" × 19.3" × 11" |
| Color | Orange |
| Working Modes | Stacker / Hand Truck |
| Lift Mechanism | Manual Winch |
| Assembly Required | Yes |
🚀 Performance Overview
⚙️ Lifting Performance
The labor-saving manual winch system allows operators to raise loads weighing up to 330 lbs to a maximum height of 40 inches with controlled lifting action.
📦 Material Handling Capability
Ideal for:
✔ Warehouse inventory
✔ Appliances
✔ Boxes and cartons
✔ Industrial supplies
✔ Workshop equipment
✔ Delivery operations
🛞 Maneuverability
The combination of:
-
Swivel front caster wheels
-
8" polyurethane rear wheels
-
Compact frame design
allows smooth movement through narrow aisles and workspaces.
🏭 Terrain Capability
Best suited for:
✔ Concrete floors
✔ Warehouse environments
✔ Loading docks
✔ Workshops
✔ Commercial facilities
✔ Smooth industrial surfaces
⚠️ Power System Information
This model is a manual winch-operated material lift and does not use an electric motor, battery, charging system, top speed rating, range specification, suspension system, or torque output.
No motor or battery specifications are provided because the GUO097 is a mechanical lifting device rather than a powered vehicle.
📊 Comparison Table
| Feature | SuperHandy GUO097 | Vestil Manual Stacker | Standard Hand Truck |
|---|---|---|---|
| Maximum Load Capacity | 330 lbs | 220–330 lbs | 150–250 lbs |
| Maximum Lift Height | 40" | Typically 35–40" | None |
| Dual Function Design | Yes | Usually No | No |
| Flatbed Platform Included | Yes | Optional | No |
| Fork Loading Mode | Yes | Yes | No |
| 8" Polyurethane Wheels | Yes | Varies | Varies |
| Wheel Locks | Yes | Limited | No |
| Steel Frame Construction | Yes | Yes | Limited |
| Warehouse Mobility | Excellent | Good | Moderate |
🛡️ Shop With Confidence
🔒 Secure Checkout
Encrypted payment processing for safe and secure transactions.
📦 Fast & Reliable Shipping
Carefully packaged and inspected before shipment.
🏗️ Quality Inspection
Every unit is checked for quality and performance before leaving the warehouse.
💬 Dedicated Customer Support
Professional assistance available before and after your purchase.
🛠️ Warranty Support
Manufacturer warranty coverage available where applicable.
📦 What's Included
-
SuperHandy GUO097 Material Lift Stacker
-
Removable Steel Platform
-
Fork Attachment Set
-
Manual Winch Assembly
-
Handlebar
-
Wheel Assembly Kit
-
Swivel Caster Wheels
-
8" Polyurethane Wheels
-
Hardware Pack
-
User Manual
❓ Frequently Asked Questions
Does the GUO097 use a motor?
No. This model operates using a labor-saving manual winch system and does not use an electric motor.
What is the maximum lifting capacity?
The maximum rated lifting capacity is 330 lbs (150 kg).
How high can it lift?
The lift range is 3.14" to 39.37", with a maximum lift height of 40 inches.
Does it require electricity?
No. The unit is fully manual and does not require batteries or charging.
Can it be used as a transport cart?
Yes. It functions as both a stacker lift and a hand truck.
Are the wheels lockable?
Yes. The unit includes a locking wheel system for added stability.
Does assembly require special tools?
Basic assembly is required before first use.
What surfaces work best?
Concrete floors, warehouses, loading docks, workshops, and smooth commercial surfaces.
Is it suitable for pallet handling?
Yes. The fork attachment allows lifting and positioning of compatible palletized loads within weight limits.
🏗️ Upgrade Your Material Handling Workflow
The SuperHandy GUO097 Material Lift Stacker delivers professional lifting capability with a 330 lb load capacity, 40-inch lift height, durable steel frame, 8-inch polyurethane wheels, and versatile 2-in-1 stacker and transport functionality.
Designed for warehouses, workshops, service teams, and commercial operations, it's the smarter solution for lifting and moving heavy materials efficiently.
Lift safer. Move easier. Work smarter.
