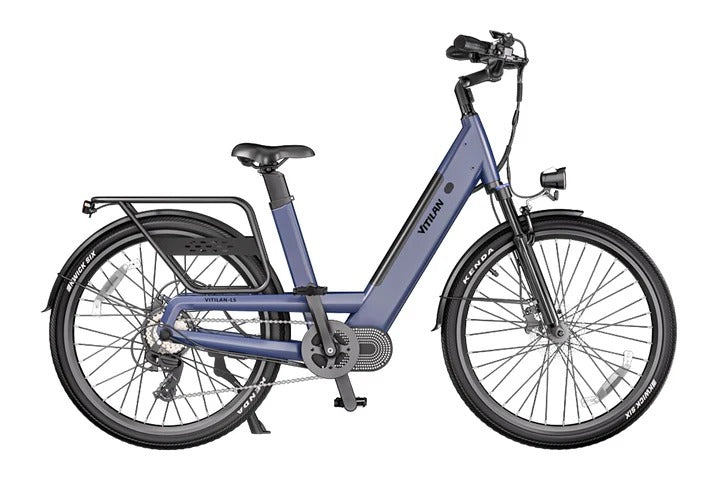

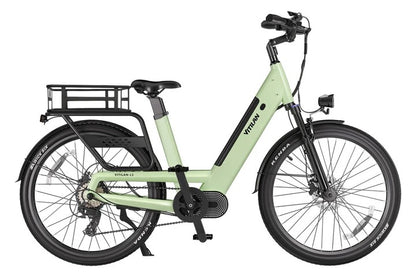

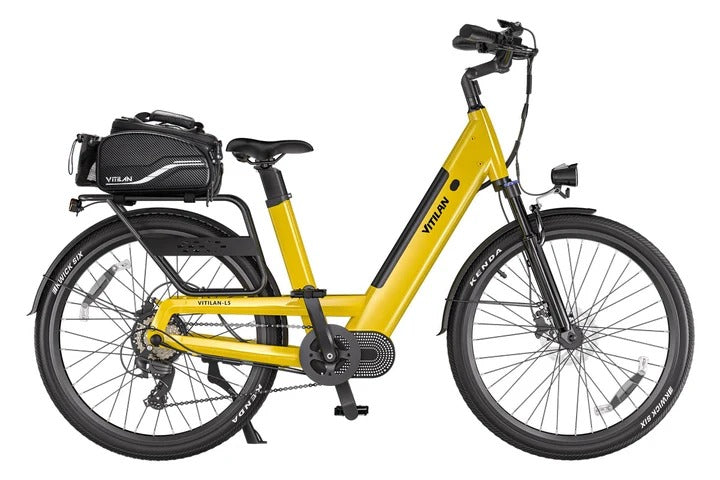

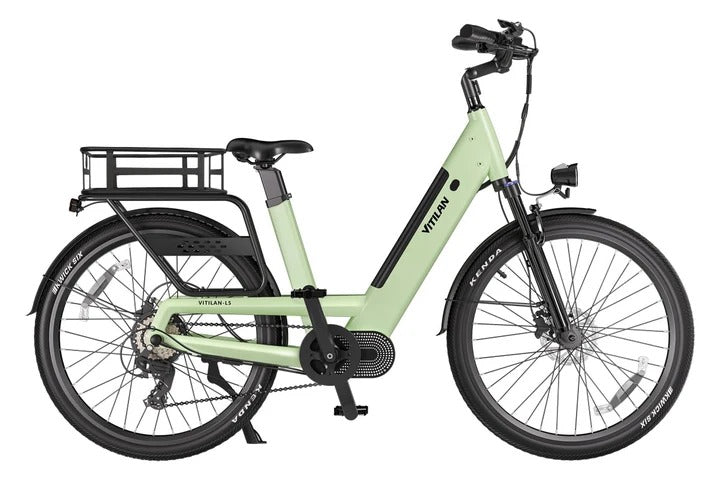

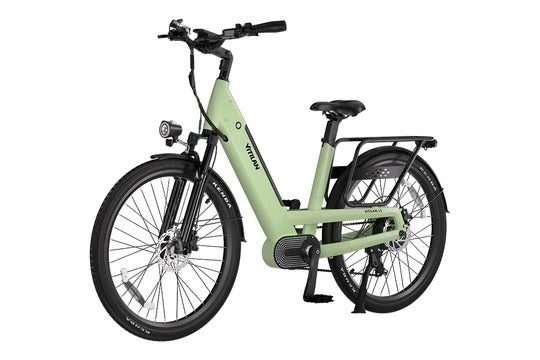

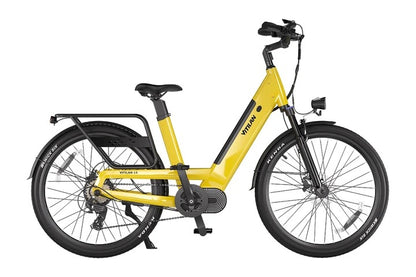

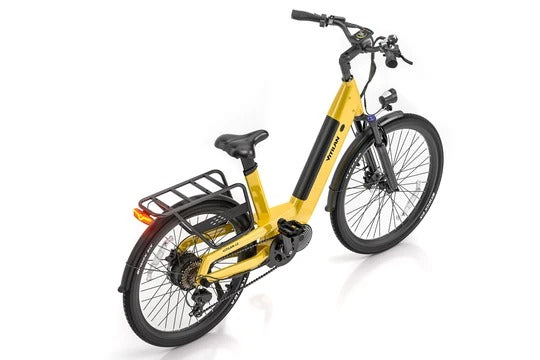

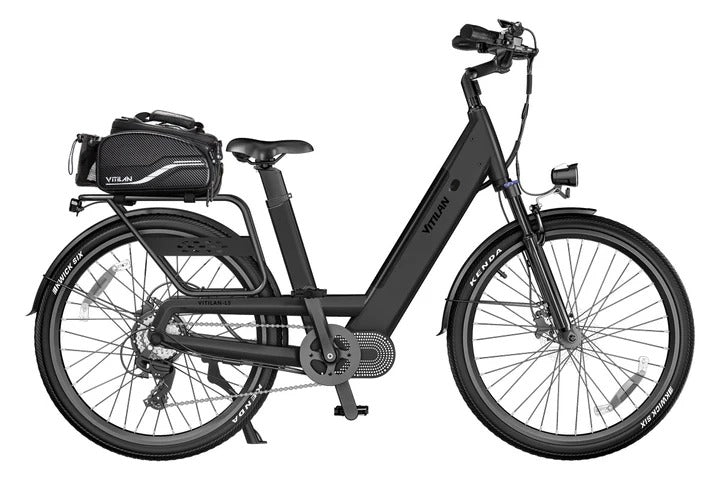

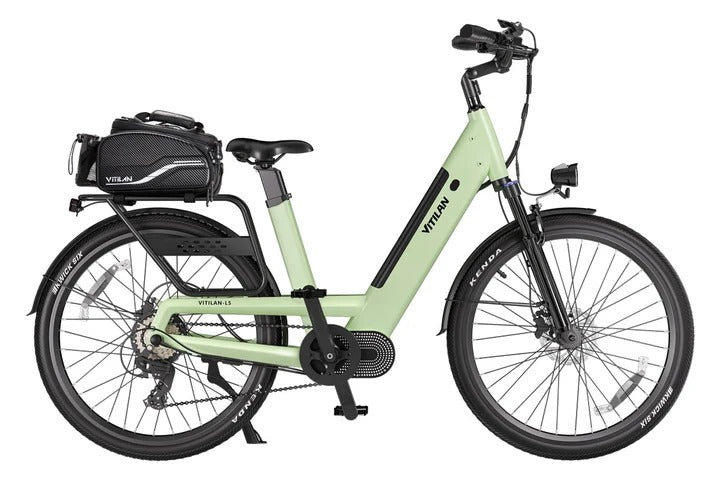

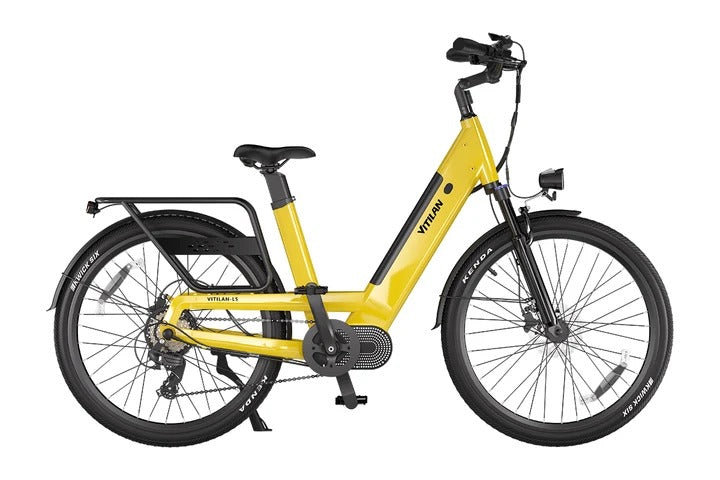

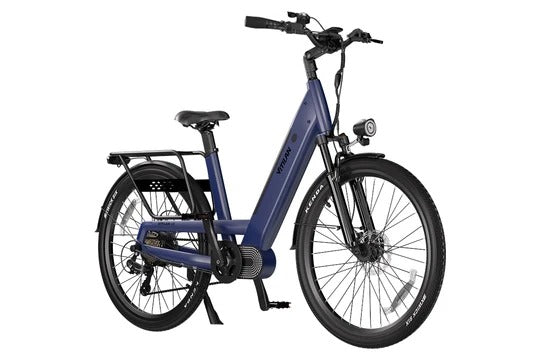

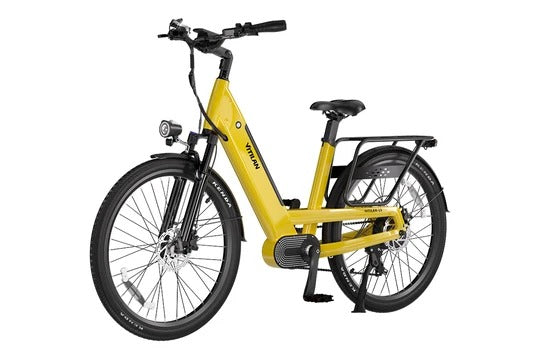

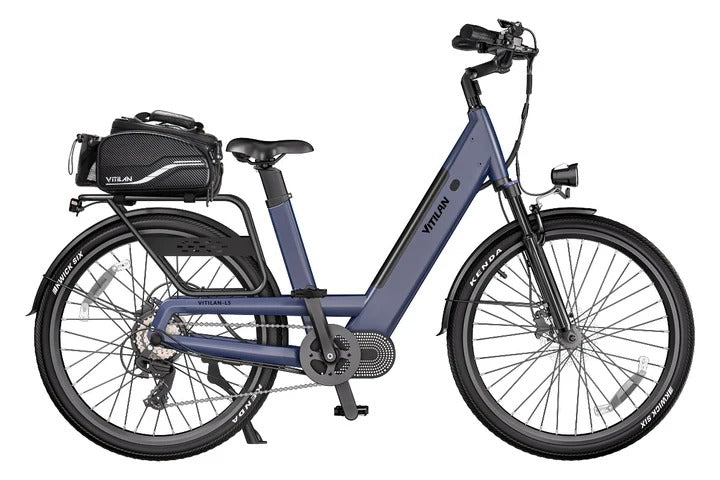

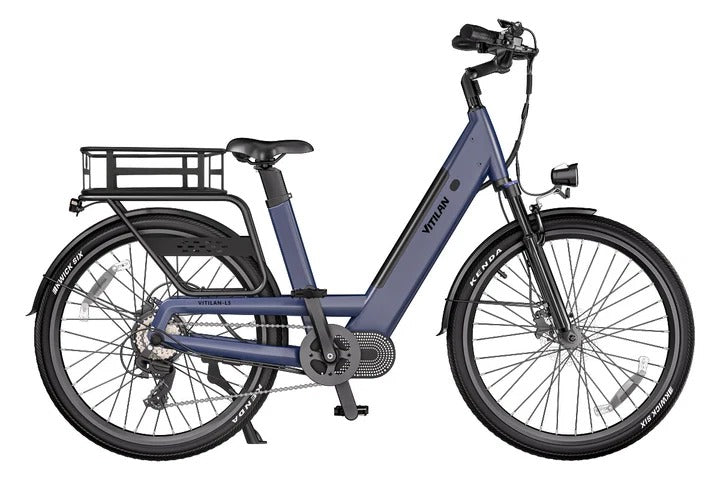

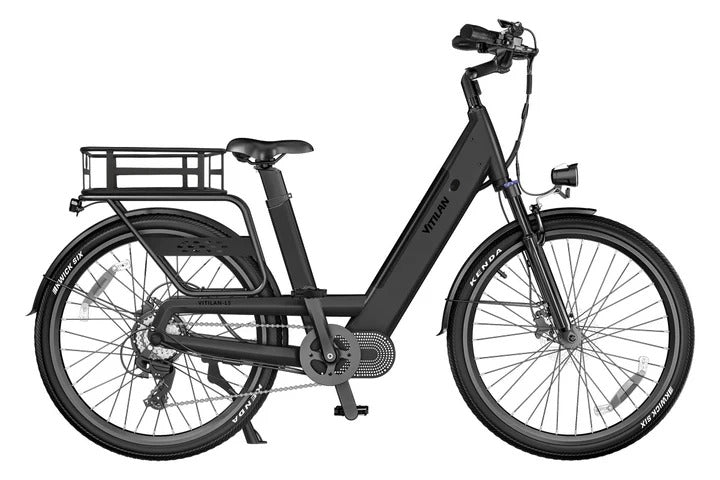

Vitilan L5 Electric Bike – 500W, 48V 15Ah, 25 MPH | 65Nm

Vitilan L5 Electric Bike – 500W, 48V 15Ah, 25 MPH | 65Nm

Low stock: 1 left

$699.00 USD
$999.00 USD $699.00 USD
Sale Sold out
SAVE $300.00

Pay in 4 interest-free installments with Klarna

🚲 VITILAN L5 ELECTRIC BIKE

Premium Urban Performance. Smarter Everyday Riding.

Meet the Vitilan L5 Urban Commuter Electric Bike — a refined step-through e-bike designed for daily commuting, errands, neighborhood rides, and longer weekend journeys.

With a 48V 15Ah Samsung lithium-ion battery, 500W sustained / 960W peak brushless hub motor, 65Nm of torque, 25 MPH top speed, torque-sensing pedal assist, 26 × 2.4-inch puncture-resistant tires, adjustable suspension, and hydraulic disc brakes, the L5 combines practical performance with a comfortable, modern riding experience.

⚡ POWER THAT FEELS NATURAL

The L5 uses a 48V 500W brushless hub motor capable of reaching 960W peak output and producing up to 65Nm of torque.

That combination gives the L5 responsive acceleration and useful low-speed pulling power for everyday inclines, starts from intersections, and changing urban terrain.

Performance at a glance

  • ⚙️ Rated motor: 500W

  • ⚡ Peak motor output: 960W

  • 🔥 Maximum torque: 65Nm

  • 🔋 Battery: 48V 15Ah Samsung lithium-ion

  • 🔌 Battery capacity: 720Wh

  • 🚀 Top speed: 25 MPH

  • 🛞 Tires: Kenda 26 × 2.4"

  • 👤 Maximum payload: 330 lbs

  • ⚖️ Bike weight: 69.4 lbs

These specifications are taken from the manufacturer's current L5 technical specification.

🔋 720Wh SAMSUNG BATTERY

The L5 is equipped with a 48V 15Ah Samsung lithium-ion battery, providing 720Wh of energy capacity.

The battery is removable, making it more convenient to charge away from the bike when needed.

Claimed riding range

  • 🦵 Pedal-assist range: up to 60 miles

  • 👍 Throttle range: up to 45 miles

  • 📊 Manufacturer marketing range: approximately 40–65 miles, depending on riding conditions and configuration

Actual range varies with rider weight, terrain, temperature, speed, assist level, tire pressure, and riding conditions.

🧠 TORQUE SENSOR = A MORE RESPONSIVE RIDE

Unlike a basic cadence-only system, the L5 uses a torque sensor.

The system detects your pedaling input and adjusts motor assistance accordingly, helping the bike feel more natural when accelerating, climbing, or changing pace.

Why it matters

  • 🦵 More responsive pedal assistance

  • 🎯 Better control over motor output

  • 🚦 Smooth assistance when starting and stopping

  • 🛣️ Natural-feeling support during everyday riding

The manufacturer describes the torque sensor as providing virtually instantaneous assistance.

🛞 26 × 2.4" KENDA TIRES

The L5 rides on Kenda 26 × 2.4-inch tires with a puncture-resistant liner.

The relatively wide tire profile provides a stable contact patch for city streets, bike paths, gravel sections, and everyday mixed surfaces.

The manufacturer specifically positions the anti-puncture tires for city, gravel, and longer-distance riding.

🪶 ADJUSTABLE SPRING SUSPENSION

The front fork uses an adjustable spring suspension system designed to absorb impacts from uneven pavement and common road obstacles.

That makes the L5 better suited to real-world streets than a rigid commuter setup.

Suspension benefits

  • 🛣️ Helps smooth rough pavement

  • 🚧 Absorbs smaller bumps and obstacles

  • 🪶 Improves front-end comfort

  • 🎯 Helps maintain control on uneven surfaces

The manufacturer specifies an adjustable spring suspension fork.

🛑 180MM HYDRAULIC DISC BRAKES

The L5 features 180mm hydraulic disc brakes on both the front and rear.

Hydraulic braking provides strong, controlled braking performance while reducing the hand effort required compared with many basic mechanical systems.

Brake specification

180mm front + rear hydraulic disc brakes

This is the brake specification listed in the detailed technical specifications.

🎛️ SHIMANO 7-SPEED DRIVETRAIN

The L5 gives you 7 speeds through a Shimano drivetrain.

That lets you select an easier gear for slower climbs or a more efficient gear when cruising on flatter roads.

Drivetrain

  • ⚙️ 7-speed cassette: 14–28T

  • 🔧 Rear derailleur: Shimano RD-TY300

  • 🎚️ Shift lever: Shimano SL-TX50-7R

  • ⛓️ Chain: KMC C8

  • 🔩 Crankset: 38T × 170mm

  • 🪶 Crank material: Sand-black aluminum alloy

📱 SMART COLOR DISPLAY + APP CONTROL

The L5 includes a 48V multifunction intelligent display with a TFT-style color screen.

The display uses laminated tempered glass and includes an automatic light sensor.

The manufacturer also specifies:

  • 📱 Vitilan smart-app connectivity

  • 🍎 Apple AirTag location functionality

  • 💡 Automatic light sensing

  • 📊 Ride information and settings

  • 🎛️ Personalized bike controls through the app

The AirTag functionality is particularly useful for riders who want an additional location-tracking option.

💡 INTEGRATED LIGHTING

The L5 includes integrated front and rear lighting.

Front

High-output integrated LED headlight — IPX6

Rear

Signal turn light / 48V LED rear light

The integrated lighting setup is designed for visibility during everyday commuting and lower-light riding.

🪜 STEP-THROUGH FRAME DESIGN

The L5 uses a fully integrated aluminum-alloy step-through frame.

The lower step-over area makes mounting and dismounting more convenient, particularly during frequent stops around town.

The frame also keeps the battery and electrical system integrated into the overall design for a cleaner appearance.

Frame

Fully integrated aluminum alloy

🏙️ BUILT FOR EVERYDAY TERRAIN

The L5 is primarily an urban commuter e-bike, but its combination of:

  • 500W rated / 960W peak motor

  • 65Nm torque

  • 26 × 2.4" tires

  • adjustable spring suspension

  • hydraulic disc brakes

  • 7-speed gearing

  • torque sensor

gives it useful versatility beyond smooth pavement.

It's well suited to city streets, bike paths, neighborhood roads, gravel sections, and moderate everyday inclines.

Hill climbing

The manufacturer states that the 65Nm motor provides useful performance on slopes, but does not publish a specific maximum hill grade percentage. Therefore, no unsupported hill-climbing percentage is claimed here.

📊 FULL TECHNICAL SPECIFICATIONS

Specification Vitilan L5
Motor type Brushless hub motor
Motor voltage 48V
Rated motor power 500W
Peak motor power 960W
Maximum torque 65Nm
Motor configuration Single hub motor
Battery Samsung lithium-ion
Battery voltage 48V
Battery capacity 15Ah
Battery energy 720Wh
Battery Removable
Charger 54.6V 2.0A
Charger input 110–240V AC
Charger frequency 50–60Hz
Exact manufacturer charging time Not specified
Controller 48V / 20A
Sensor Torque sensor
Throttle Thumb throttle
Top speed 25 MPH
Pedal-assist range Up to 60 miles
Throttle range Up to 45 miles
Advertised range Approximately 40–65 miles
Frame Fully integrated aluminum alloy
Frame style Step-through
Front fork Adjustable spring suspension fork
Brakes 180mm hydraulic disc, front and rear
Tires Kenda 26 × 2.4"
Tire protection Puncture-resistant liner
Wheel diameter 26"
Gearing 7-speed
Cassette 14–28T
Rear derailleur Shimano RD-TY300
Shift lever Shimano SL-TX50-7R
Chain KMC C8
Crankset 38T × 170mm
Crank material Sand-black aluminum alloy
Pedals All-aluminum pedal forging
Headlight High-output integrated LED
Headlight rating IPX6
Rear light Signal turn light / 48V LED
Display 48V multifunction intelligent display
Maximum payload 330 lbs
Bike weight 69.4 lbs
IP rating IPX6
Total length 72.44"
Handlebar height 45.67"
Wheelbase 47.28"
Minimum seat height 32.28"
Maximum seat height 37.4"
Chainstay length 29.69"
Standover height 17.72"
Top tube length 21.65"
Wheel diameter 26"
Handlebar length 25.98"
Head tube length 5.9"

All figures above are taken from the manufacturer's published technical specifications and sizing information.

🆚 HOW THE L5 COMPARES

For a useful apples-to-apples comparison, here are two established commuter/utility e-bike alternatives with published specifications.

Specification Vitilan L5 Ride1Up Turris Lectric XP4
Motor 500W hub 750W sustained hub 500W hub
Peak motor 960W Not specified on current overview 1,092W
Torque 65Nm 90Nm 55Nm
Battery 48V 15Ah 48V 14Ah 48V 10.4Ah
Battery energy 720Wh 672Wh 500Wh
Top speed 25 MPH 28 MPH PAS / 20 MPH throttle Up to 28 MPH depending mode
Range 40–65 miles advertised 30–50 miles Up to 50 miles
Sensor Torque Current-based cadence Not specified in cited specification
Tires Kenda 26 × 2.4" Kenda 27.5 × 2.4" Not included in cited source
Brakes 180mm hydraulic 180mm hydraulic Not included in cited source
Suspension Adjustable spring fork 100mm hydraulic-lockout fork Not included in cited source
Gears Shimano 7-speed Shimano 7-speed 8-speed on XP4
Payload 330 lbs Not specified in cited overview 330 lbs
Frame Aluminum alloy step-through Lightweight alloy Folding frame
Bike weight 69.4 lbs Not specified in cited overview Not specified in cited source

The Turris specifications come from Ride1Up's current product information, while the XP4 specifications come from Lectric's current product page.

Where the L5 stands out

The L5's 720Wh battery, 65Nm torque, torque sensor, 330-lb payload, 26 × 2.4" tires, step-through aluminum frame, and 180mm hydraulic brakes make it particularly attractive for riders prioritizing commuting comfort and battery capacity rather than simply chasing the highest top-speed figure.

🛡️ BUILT WITH PRACTICAL PROTECTION

The L5 carries an IPX6 rating, and the integrated front light is also specified as IPX6.

That means the bike has a level of water resistance designed for wet conditions and water exposure, but IPX6 does not mean waterproof under every circumstance.

Important

Avoid prolonged exposure to severe weather, submersion, flooding, or improper water cleaning.

The manufacturer specifically describes the L5 as IPX6 and recommends avoiding extreme weather conditions.

🔒 TRUST & WARRANTY

Secure checkout

Choose from the payment methods available at checkout, including installment options where offered.

Customer support

Vitilan provides customer support for product and after-sales questions.

Manufacturer warranty

The L5 is covered by an 18-month manufacturer's all-inclusive warranty against manufacturing defects for the original owner, subject to the manufacturer's warranty terms.

The warranty covers numerous major components including the frame, fork, handlebars, brakes, lights, wheel components, drivetrain components, motor, throttle, controller, wiring harness, and LCD display, subject to exclusions.

Wear items and damage resulting from misuse, improper assembly, accidents, modifications, abnormal liquid exposure, and other excluded conditions are not covered.

Quality

The manufacturer states that its electric bikes are tested/programmed before leaving the factory.

Shipping

Shipping availability and delivery terms should be determined by the destination and the selling store's current shipping policy.

❓ FREQUENTLY ASKED QUESTIONS

🔋 How long does the L5 take to charge?

The L5 uses a 54.6V 2.0A charger with a 48V 15Ah / 720Wh battery. The manufacturer does not publish a precise full-charge time, so an exact number should not be promised. Charging time can vary depending on battery state and charging conditions.

🚀 How fast does the Vitilan L5 go?

The manufacturer's listed maximum speed is 25 MPH.

🔋 How far can it travel on one charge?

The published specifications list up to 60 miles using pedal assist and up to 45 miles using throttle-only operation. The product marketing also describes approximately 40–65 miles of range.

Real-world range depends heavily on rider weight, terrain, speed, temperature, assist level, and riding conditions.

🧍 What rider height is the L5 suitable for?

The manufacturer does not publish a specific rider-height range. The L5 has a 32.28-inch minimum seat height and 37.4-inch maximum seat height, allowing the saddle position to be adjusted to the rider.

🛠️ Does the L5 require assembly?

The manufacturer provides dedicated L5 installation and use materials. The bike should be assembled and checked according to the manufacturer's instructions before riding.

🏔️ Can I ride the L5 off-road?

The L5 is designed primarily as an urban commuter e-bike. Its 26 × 2.4" tires, adjustable spring suspension, 65Nm torque, and 7-speed drivetrain make it capable of handling gravel and uneven everyday surfaces.

It is not presented as a dedicated extreme off-road or mountain bike.

⚖️ Does the L5 require a license?

E-bike classification and licensing requirements vary by location. Because the L5 has a listed 25 MPH maximum speed, customers should check their state and local e-bike regulations before riding on public roads or paths.

🌧️ Is the L5 waterproof?

The L5 has an IPX6 rating, which provides significant protection against water jets and rain exposure. It should not be treated as fully waterproof or suitable for submersion. Avoid flooding, deep water, pressure washing, and prolonged extreme-weather exposure.

📦 What comes in the box?

The manufacturer product page confirms the L5 bike and offers accessory configurations such as a front basket, back basket, and waterproof bike rack bag. However, the published page does not provide a complete itemized box-content list, so individual accessories should be confirmed according to the selected configuration/order.

🧾 KEY REASONS TO CHOOSE THE L5

⚡ 500W / 960W Motor

500W sustained output with up to 960W peak power and 65Nm torque.

🔋 720Wh Samsung Battery

A removable 48V 15Ah Samsung lithium-ion battery gives the L5 substantial energy capacity for everyday riding.

🧠 Torque Sensor

Responsive assistance that reacts to how you pedal instead of simply detecting crank rotation.

🛑 Hydraulic Braking

180mm hydraulic disc brakes front and rear provide controlled stopping performance.

🛞 Comfortable 26 × 2.4" Tires

Kenda puncture-resistant tires offer a stable, comfortable footprint for everyday streets and mixed surfaces.

🪶 Adjustable Suspension

An adjustable spring suspension fork helps smooth rough pavement and small obstacles.

📱 Smart Technology

TFT-style intelligent display, app connectivity, automatic light sensing, and Apple AirTag location functionality.

🪜 Easy Step-Through Access

The step-through aluminum-alloy frame makes frequent mounting and dismounting easier.

🏁 RIDE SMARTER. COMMUTE BETTER.

The Vitilan L5 is designed around the things that matter on everyday rides: responsive power, useful battery capacity, comfortable geometry, dependable braking, practical gearing, and smart technology.

With a 500W rated / 960W peak motor, 65Nm torque, 48V 15Ah Samsung 720Wh battery, 25 MPH top speed, up to 60 miles of pedal-assist range, 26 × 2.4" tires, adjustable suspension, 180mm hydraulic disc brakes, and a 330-lb maximum payload, the L5 brings a well-equipped commuter package to your daily routine.

🚲 Make the L5 part of your everyday ride.

Choose your color and configuration, select the accessories you need, and enjoy a more capable way to get around town.

View full details

🚲 VITILAN L5 ELECTRIC BIKE

Premium Urban Performance. Smarter Everyday Riding.

Meet the Vitilan L5 Urban Commuter Electric Bike — a refined step-through e-bike designed for daily commuting, errands, neighborhood rides, and longer weekend journeys.

With a 48V 15Ah Samsung lithium-ion battery, 500W sustained / 960W peak brushless hub motor, 65Nm of torque, 25 MPH top speed, torque-sensing pedal assist, 26 × 2.4-inch puncture-resistant tires, adjustable suspension, and hydraulic disc brakes, the L5 combines practical performance with a comfortable, modern riding experience.

⚡ POWER THAT FEELS NATURAL

The L5 uses a 48V 500W brushless hub motor capable of reaching 960W peak output and producing up to 65Nm of torque.

That combination gives the L5 responsive acceleration and useful low-speed pulling power for everyday inclines, starts from intersections, and changing urban terrain.

Performance at a glance

  • ⚙️ Rated motor: 500W

  • ⚡ Peak motor output: 960W

  • 🔥 Maximum torque: 65Nm

  • 🔋 Battery: 48V 15Ah Samsung lithium-ion

  • 🔌 Battery capacity: 720Wh

  • 🚀 Top speed: 25 MPH

  • 🛞 Tires: Kenda 26 × 2.4"

  • 👤 Maximum payload: 330 lbs

  • ⚖️ Bike weight: 69.4 lbs

These specifications are taken from the manufacturer's current L5 technical specification.

🔋 720Wh SAMSUNG BATTERY

The L5 is equipped with a 48V 15Ah Samsung lithium-ion battery, providing 720Wh of energy capacity.

The battery is removable, making it more convenient to charge away from the bike when needed.

Claimed riding range

  • 🦵 Pedal-assist range: up to 60 miles

  • 👍 Throttle range: up to 45 miles

  • 📊 Manufacturer marketing range: approximately 40–65 miles, depending on riding conditions and configuration

Actual range varies with rider weight, terrain, temperature, speed, assist level, tire pressure, and riding conditions.

🧠 TORQUE SENSOR = A MORE RESPONSIVE RIDE

Unlike a basic cadence-only system, the L5 uses a torque sensor.

The system detects your pedaling input and adjusts motor assistance accordingly, helping the bike feel more natural when accelerating, climbing, or changing pace.

Why it matters

  • 🦵 More responsive pedal assistance

  • 🎯 Better control over motor output

  • 🚦 Smooth assistance when starting and stopping

  • 🛣️ Natural-feeling support during everyday riding

The manufacturer describes the torque sensor as providing virtually instantaneous assistance.

🛞 26 × 2.4" KENDA TIRES

The L5 rides on Kenda 26 × 2.4-inch tires with a puncture-resistant liner.

The relatively wide tire profile provides a stable contact patch for city streets, bike paths, gravel sections, and everyday mixed surfaces.

The manufacturer specifically positions the anti-puncture tires for city, gravel, and longer-distance riding.

🪶 ADJUSTABLE SPRING SUSPENSION

The front fork uses an adjustable spring suspension system designed to absorb impacts from uneven pavement and common road obstacles.

That makes the L5 better suited to real-world streets than a rigid commuter setup.

Suspension benefits

  • 🛣️ Helps smooth rough pavement

  • 🚧 Absorbs smaller bumps and obstacles

  • 🪶 Improves front-end comfort

  • 🎯 Helps maintain control on uneven surfaces

The manufacturer specifies an adjustable spring suspension fork.

🛑 180MM HYDRAULIC DISC BRAKES

The L5 features 180mm hydraulic disc brakes on both the front and rear.

Hydraulic braking provides strong, controlled braking performance while reducing the hand effort required compared with many basic mechanical systems.

Brake specification

180mm front + rear hydraulic disc brakes

This is the brake specification listed in the detailed technical specifications.

🎛️ SHIMANO 7-SPEED DRIVETRAIN

The L5 gives you 7 speeds through a Shimano drivetrain.

That lets you select an easier gear for slower climbs or a more efficient gear when cruising on flatter roads.

Drivetrain

  • ⚙️ 7-speed cassette: 14–28T

  • 🔧 Rear derailleur: Shimano RD-TY300

  • 🎚️ Shift lever: Shimano SL-TX50-7R

  • ⛓️ Chain: KMC C8

  • 🔩 Crankset: 38T × 170mm

  • 🪶 Crank material: Sand-black aluminum alloy

📱 SMART COLOR DISPLAY + APP CONTROL

The L5 includes a 48V multifunction intelligent display with a TFT-style color screen.

The display uses laminated tempered glass and includes an automatic light sensor.

The manufacturer also specifies:

  • 📱 Vitilan smart-app connectivity

  • 🍎 Apple AirTag location functionality

  • 💡 Automatic light sensing

  • 📊 Ride information and settings

  • 🎛️ Personalized bike controls through the app

The AirTag functionality is particularly useful for riders who want an additional location-tracking option.

💡 INTEGRATED LIGHTING

The L5 includes integrated front and rear lighting.

Front

High-output integrated LED headlight — IPX6

Rear

Signal turn light / 48V LED rear light

The integrated lighting setup is designed for visibility during everyday commuting and lower-light riding.

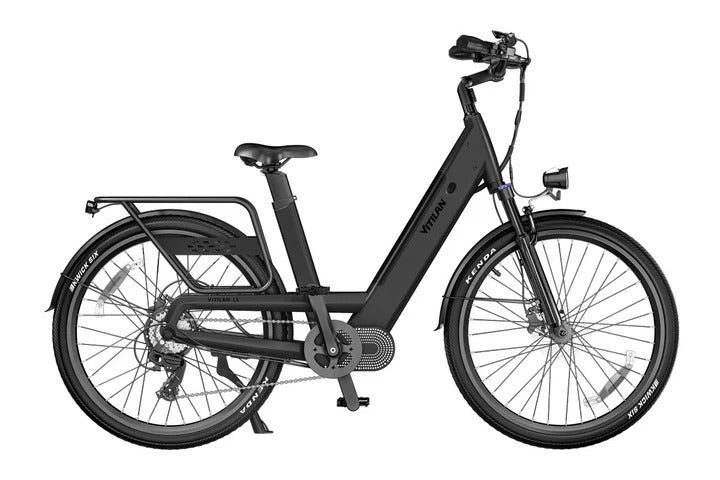

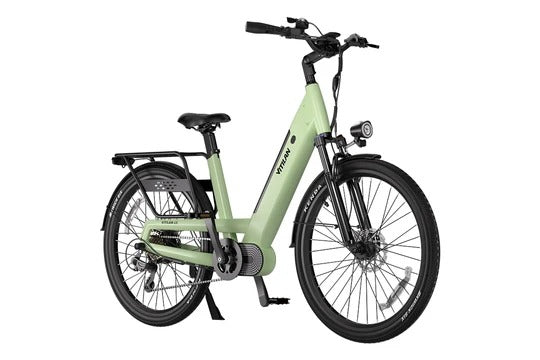

🪜 STEP-THROUGH FRAME DESIGN

The L5 uses a fully integrated aluminum-alloy step-through frame.

The lower step-over area makes mounting and dismounting more convenient, particularly during frequent stops around town.

The frame also keeps the battery and electrical system integrated into the overall design for a cleaner appearance.

Frame

Fully integrated aluminum alloy

🏙️ BUILT FOR EVERYDAY TERRAIN

The L5 is primarily an urban commuter e-bike, but its combination of:

  • 500W rated / 960W peak motor

  • 65Nm torque

  • 26 × 2.4" tires

  • adjustable spring suspension

  • hydraulic disc brakes

  • 7-speed gearing

  • torque sensor

gives it useful versatility beyond smooth pavement.

It's well suited to city streets, bike paths, neighborhood roads, gravel sections, and moderate everyday inclines.

Hill climbing

The manufacturer states that the 65Nm motor provides useful performance on slopes, but does not publish a specific maximum hill grade percentage. Therefore, no unsupported hill-climbing percentage is claimed here.

📊 FULL TECHNICAL SPECIFICATIONS

Specification Vitilan L5
Motor type Brushless hub motor
Motor voltage 48V
Rated motor power 500W
Peak motor power 960W
Maximum torque 65Nm
Motor configuration Single hub motor
Battery Samsung lithium-ion
Battery voltage 48V
Battery capacity 15Ah
Battery energy 720Wh
Battery Removable
Charger 54.6V 2.0A
Charger input 110–240V AC
Charger frequency 50–60Hz
Exact manufacturer charging time Not specified
Controller 48V / 20A
Sensor Torque sensor
Throttle Thumb throttle
Top speed 25 MPH
Pedal-assist range Up to 60 miles
Throttle range Up to 45 miles
Advertised range Approximately 40–65 miles
Frame Fully integrated aluminum alloy
Frame style Step-through
Front fork Adjustable spring suspension fork
Brakes 180mm hydraulic disc, front and rear
Tires Kenda 26 × 2.4"
Tire protection Puncture-resistant liner
Wheel diameter 26"
Gearing 7-speed
Cassette 14–28T
Rear derailleur Shimano RD-TY300
Shift lever Shimano SL-TX50-7R
Chain KMC C8
Crankset 38T × 170mm
Crank material Sand-black aluminum alloy
Pedals All-aluminum pedal forging
Headlight High-output integrated LED
Headlight rating IPX6
Rear light Signal turn light / 48V LED
Display 48V multifunction intelligent display
Maximum payload 330 lbs
Bike weight 69.4 lbs
IP rating IPX6
Total length 72.44"
Handlebar height 45.67"
Wheelbase 47.28"
Minimum seat height 32.28"
Maximum seat height 37.4"
Chainstay length 29.69"
Standover height 17.72"
Top tube length 21.65"
Wheel diameter 26"
Handlebar length 25.98"
Head tube length 5.9"

All figures above are taken from the manufacturer's published technical specifications and sizing information.

🆚 HOW THE L5 COMPARES

For a useful apples-to-apples comparison, here are two established commuter/utility e-bike alternatives with published specifications.

Specification Vitilan L5 Ride1Up Turris Lectric XP4
Motor 500W hub 750W sustained hub 500W hub
Peak motor 960W Not specified on current overview 1,092W
Torque 65Nm 90Nm 55Nm
Battery 48V 15Ah 48V 14Ah 48V 10.4Ah
Battery energy 720Wh 672Wh 500Wh
Top speed 25 MPH 28 MPH PAS / 20 MPH throttle Up to 28 MPH depending mode
Range 40–65 miles advertised 30–50 miles Up to 50 miles
Sensor Torque Current-based cadence Not specified in cited specification
Tires Kenda 26 × 2.4" Kenda 27.5 × 2.4" Not included in cited source
Brakes 180mm hydraulic 180mm hydraulic Not included in cited source
Suspension Adjustable spring fork 100mm hydraulic-lockout fork Not included in cited source
Gears Shimano 7-speed Shimano 7-speed 8-speed on XP4
Payload 330 lbs Not specified in cited overview 330 lbs
Frame Aluminum alloy step-through Lightweight alloy Folding frame
Bike weight 69.4 lbs Not specified in cited overview Not specified in cited source

The Turris specifications come from Ride1Up's current product information, while the XP4 specifications come from Lectric's current product page.

Where the L5 stands out

The L5's 720Wh battery, 65Nm torque, torque sensor, 330-lb payload, 26 × 2.4" tires, step-through aluminum frame, and 180mm hydraulic brakes make it particularly attractive for riders prioritizing commuting comfort and battery capacity rather than simply chasing the highest top-speed figure.

🛡️ BUILT WITH PRACTICAL PROTECTION

The L5 carries an IPX6 rating, and the integrated front light is also specified as IPX6.

That means the bike has a level of water resistance designed for wet conditions and water exposure, but IPX6 does not mean waterproof under every circumstance.

Important

Avoid prolonged exposure to severe weather, submersion, flooding, or improper water cleaning.

The manufacturer specifically describes the L5 as IPX6 and recommends avoiding extreme weather conditions.

🔒 TRUST & WARRANTY

Secure checkout

Choose from the payment methods available at checkout, including installment options where offered.

Customer support

Vitilan provides customer support for product and after-sales questions.

Manufacturer warranty

The L5 is covered by an 18-month manufacturer's all-inclusive warranty against manufacturing defects for the original owner, subject to the manufacturer's warranty terms.

The warranty covers numerous major components including the frame, fork, handlebars, brakes, lights, wheel components, drivetrain components, motor, throttle, controller, wiring harness, and LCD display, subject to exclusions.

Wear items and damage resulting from misuse, improper assembly, accidents, modifications, abnormal liquid exposure, and other excluded conditions are not covered.

Quality

The manufacturer states that its electric bikes are tested/programmed before leaving the factory.

Shipping

Shipping availability and delivery terms should be determined by the destination and the selling store's current shipping policy.

❓ FREQUENTLY ASKED QUESTIONS

🔋 How long does the L5 take to charge?

The L5 uses a 54.6V 2.0A charger with a 48V 15Ah / 720Wh battery. The manufacturer does not publish a precise full-charge time, so an exact number should not be promised. Charging time can vary depending on battery state and charging conditions.

🚀 How fast does the Vitilan L5 go?

The manufacturer's listed maximum speed is 25 MPH.

🔋 How far can it travel on one charge?

The published specifications list up to 60 miles using pedal assist and up to 45 miles using throttle-only operation. The product marketing also describes approximately 40–65 miles of range.

Real-world range depends heavily on rider weight, terrain, speed, temperature, assist level, and riding conditions.

🧍 What rider height is the L5 suitable for?

The manufacturer does not publish a specific rider-height range. The L5 has a 32.28-inch minimum seat height and 37.4-inch maximum seat height, allowing the saddle position to be adjusted to the rider.

🛠️ Does the L5 require assembly?

The manufacturer provides dedicated L5 installation and use materials. The bike should be assembled and checked according to the manufacturer's instructions before riding.

🏔️ Can I ride the L5 off-road?

The L5 is designed primarily as an urban commuter e-bike. Its 26 × 2.4" tires, adjustable spring suspension, 65Nm torque, and 7-speed drivetrain make it capable of handling gravel and uneven everyday surfaces.

It is not presented as a dedicated extreme off-road or mountain bike.

⚖️ Does the L5 require a license?

E-bike classification and licensing requirements vary by location. Because the L5 has a listed 25 MPH maximum speed, customers should check their state and local e-bike regulations before riding on public roads or paths.

🌧️ Is the L5 waterproof?

The L5 has an IPX6 rating, which provides significant protection against water jets and rain exposure. It should not be treated as fully waterproof or suitable for submersion. Avoid flooding, deep water, pressure washing, and prolonged extreme-weather exposure.

📦 What comes in the box?

The manufacturer product page confirms the L5 bike and offers accessory configurations such as a front basket, back basket, and waterproof bike rack bag. However, the published page does not provide a complete itemized box-content list, so individual accessories should be confirmed according to the selected configuration/order.

🧾 KEY REASONS TO CHOOSE THE L5

⚡ 500W / 960W Motor

500W sustained output with up to 960W peak power and 65Nm torque.

🔋 720Wh Samsung Battery

A removable 48V 15Ah Samsung lithium-ion battery gives the L5 substantial energy capacity for everyday riding.

🧠 Torque Sensor

Responsive assistance that reacts to how you pedal instead of simply detecting crank rotation.

🛑 Hydraulic Braking

180mm hydraulic disc brakes front and rear provide controlled stopping performance.

🛞 Comfortable 26 × 2.4" Tires

Kenda puncture-resistant tires offer a stable, comfortable footprint for everyday streets and mixed surfaces.

🪶 Adjustable Suspension

An adjustable spring suspension fork helps smooth rough pavement and small obstacles.

📱 Smart Technology

TFT-style intelligent display, app connectivity, automatic light sensing, and Apple AirTag location functionality.

🪜 Easy Step-Through Access

The step-through aluminum-alloy frame makes frequent mounting and dismounting easier.

🏁 RIDE SMARTER. COMMUTE BETTER.

The Vitilan L5 is designed around the things that matter on everyday rides: responsive power, useful battery capacity, comfortable geometry, dependable braking, practical gearing, and smart technology.

With a 500W rated / 960W peak motor, 65Nm torque, 48V 15Ah Samsung 720Wh battery, 25 MPH top speed, up to 60 miles of pedal-assist range, 26 × 2.4" tires, adjustable suspension, 180mm hydraulic disc brakes, and a 330-lb maximum payload, the L5 brings a well-equipped commuter package to your daily routine.

🚲 Make the L5 part of your everyday ride.

Choose your color and configuration, select the accessories you need, and enjoy a more capable way to get around town.
