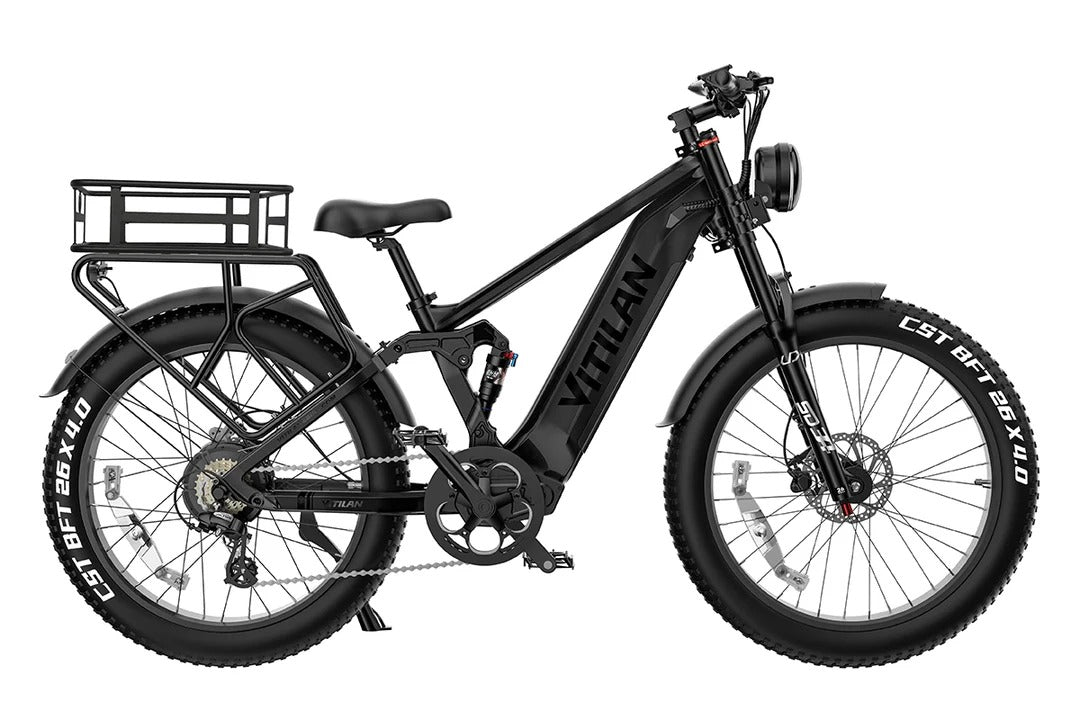

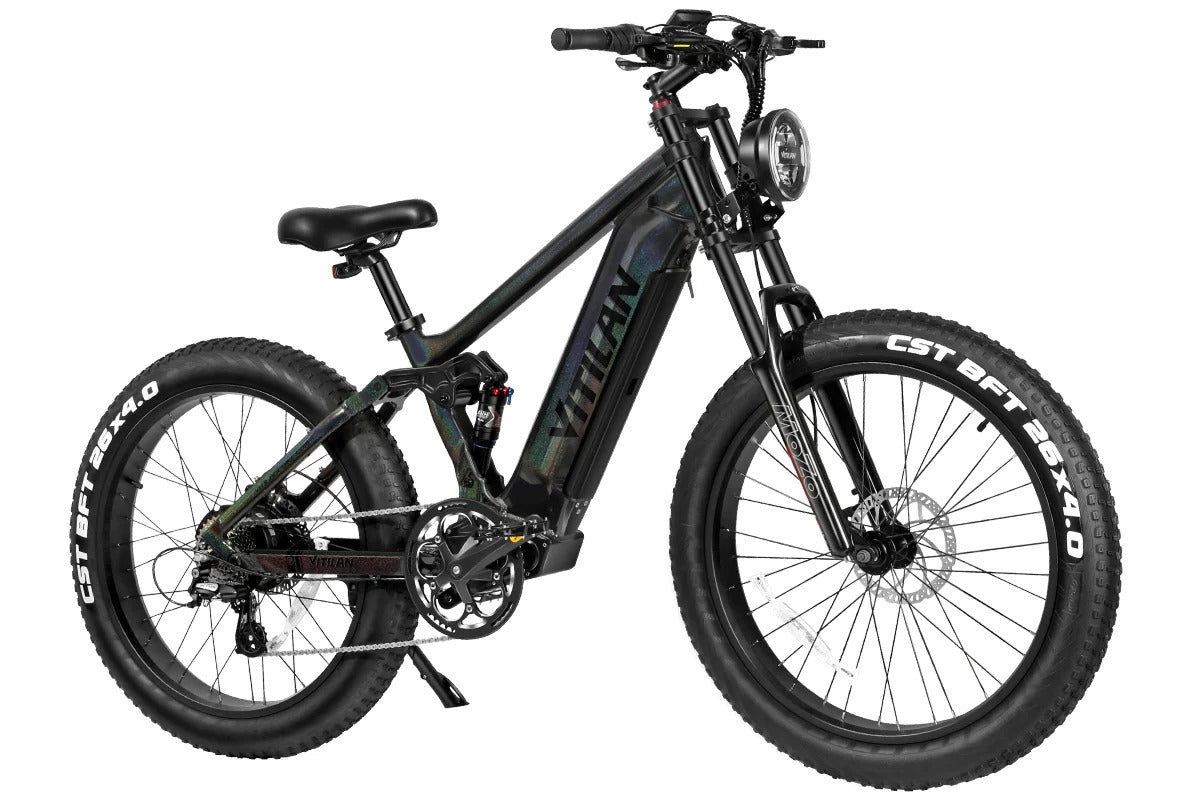

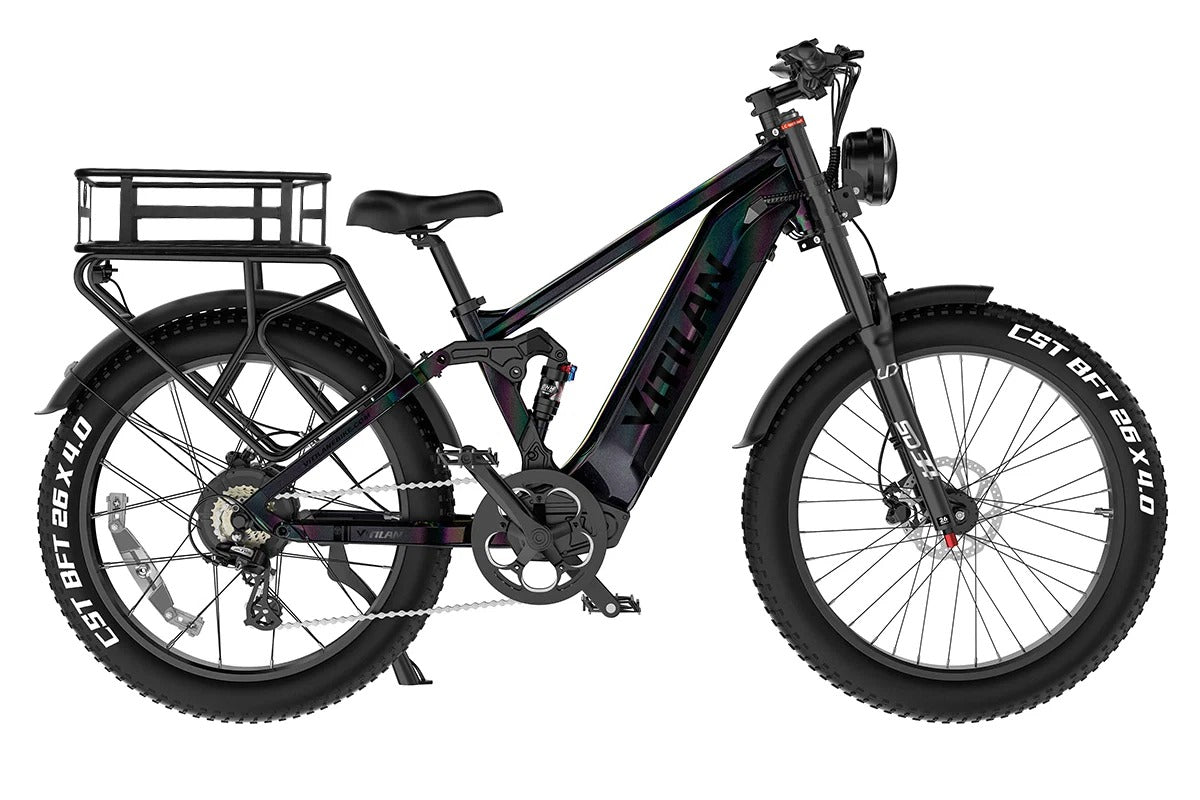

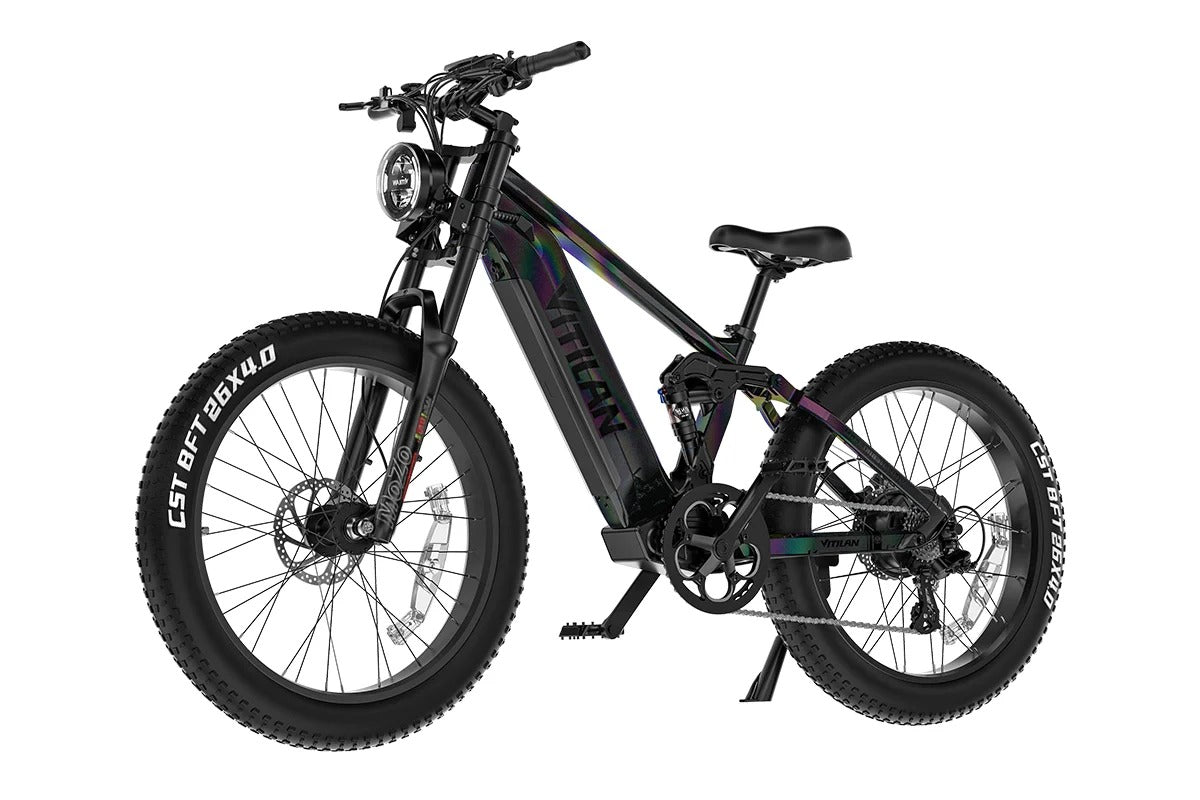

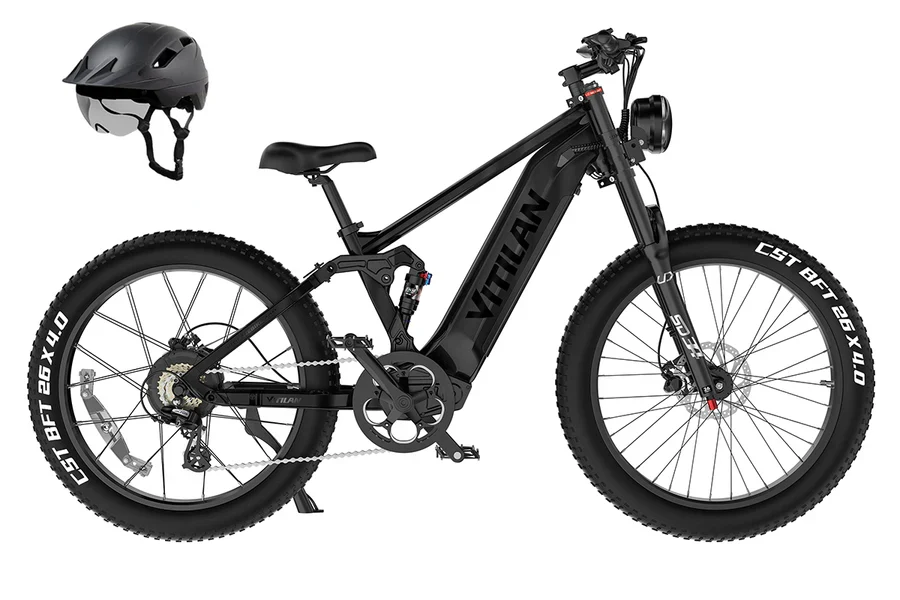

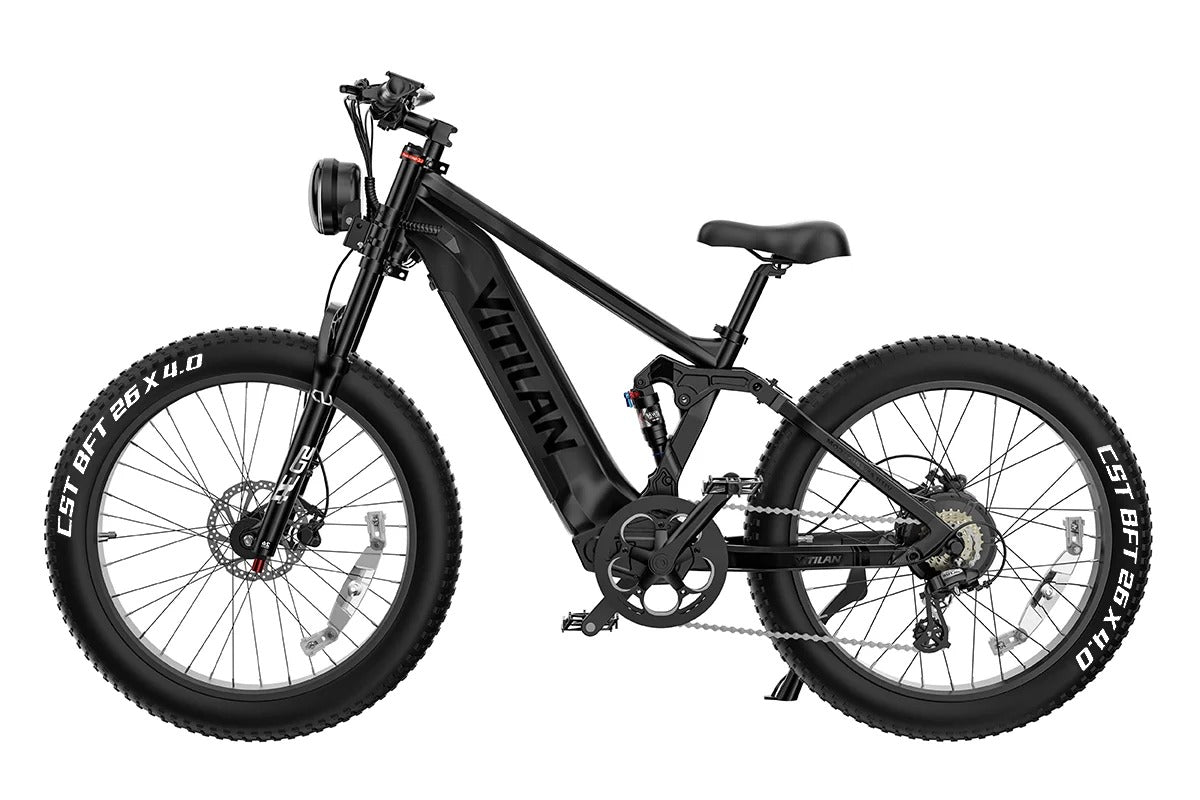

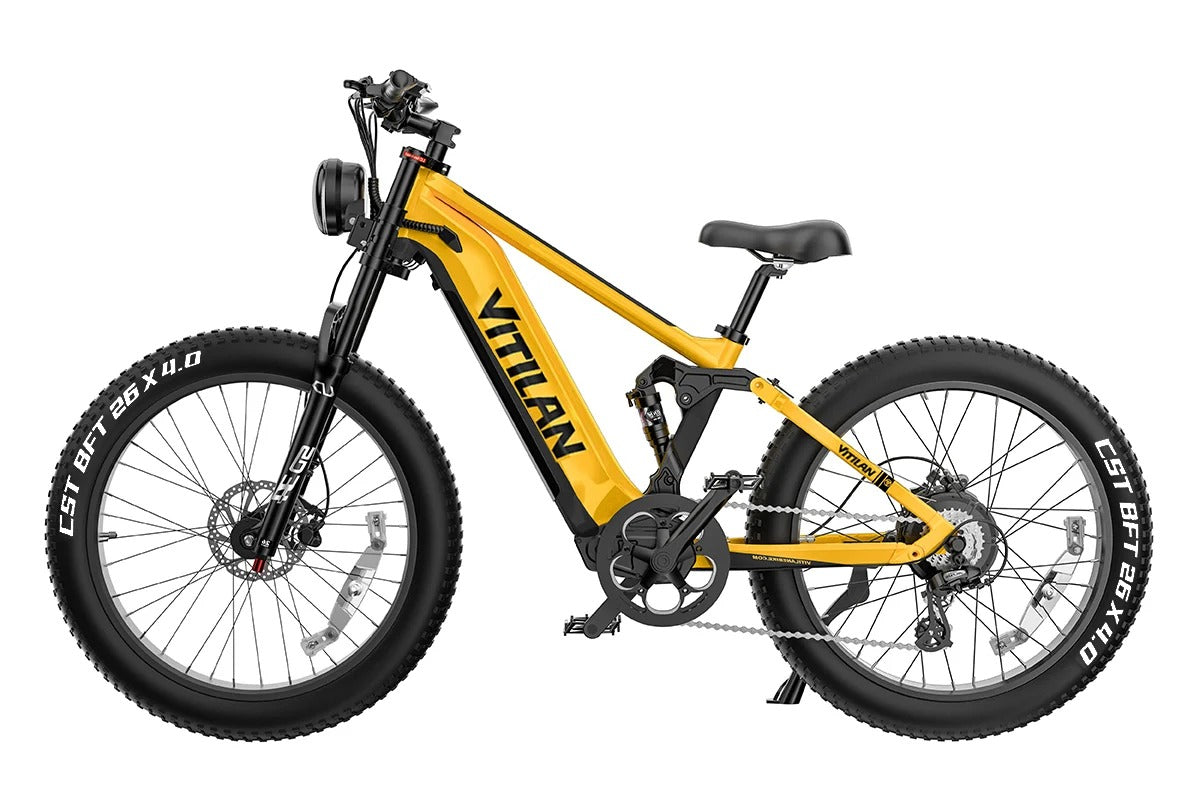

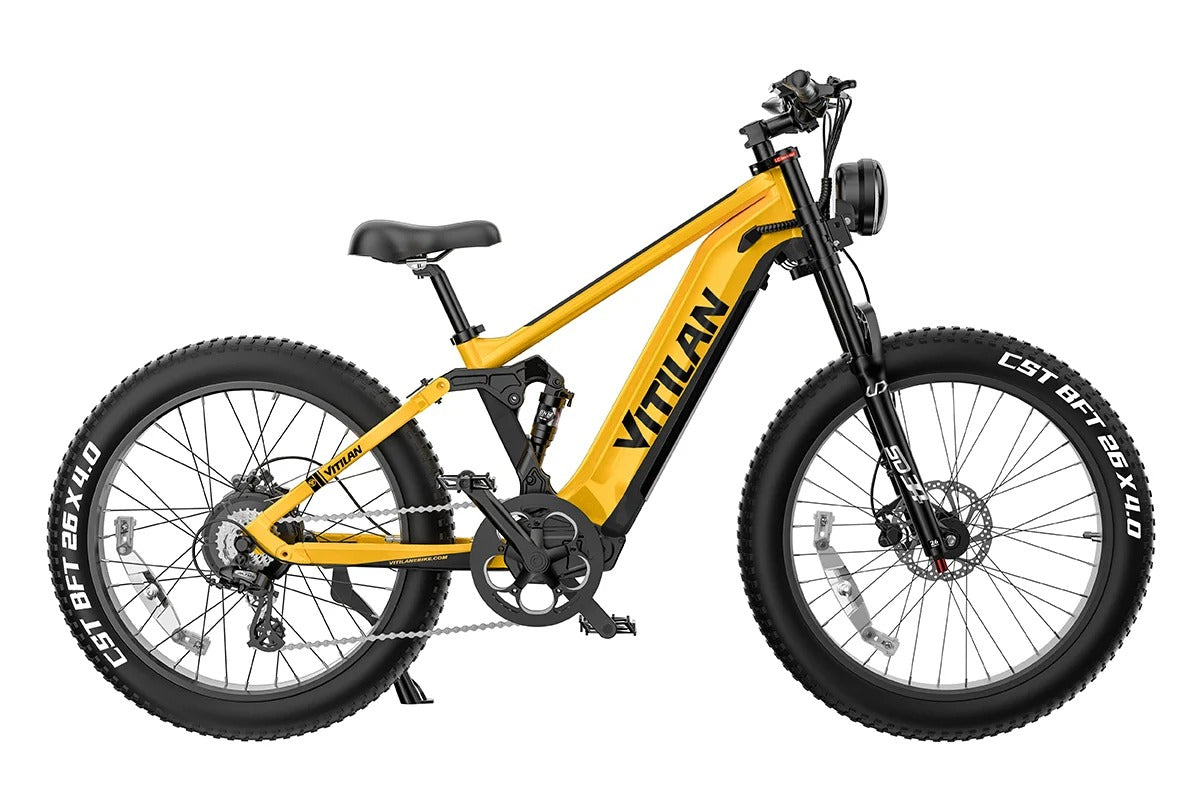

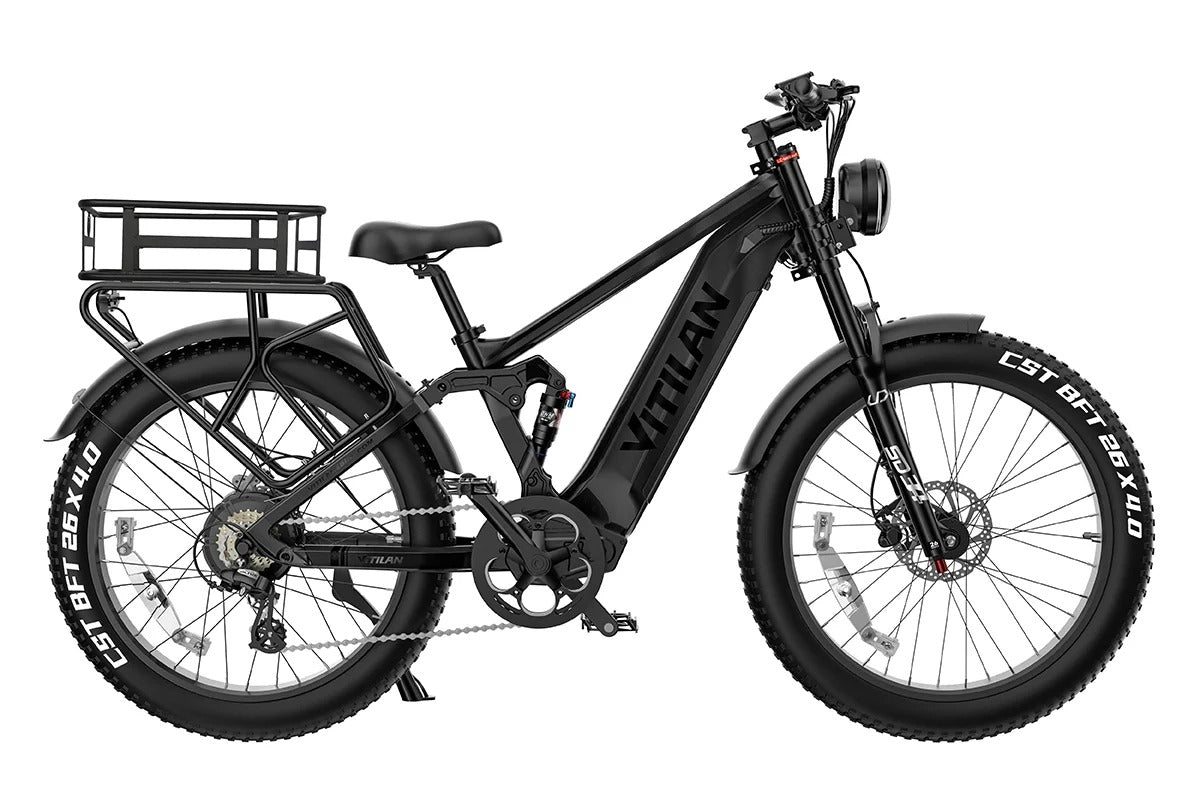

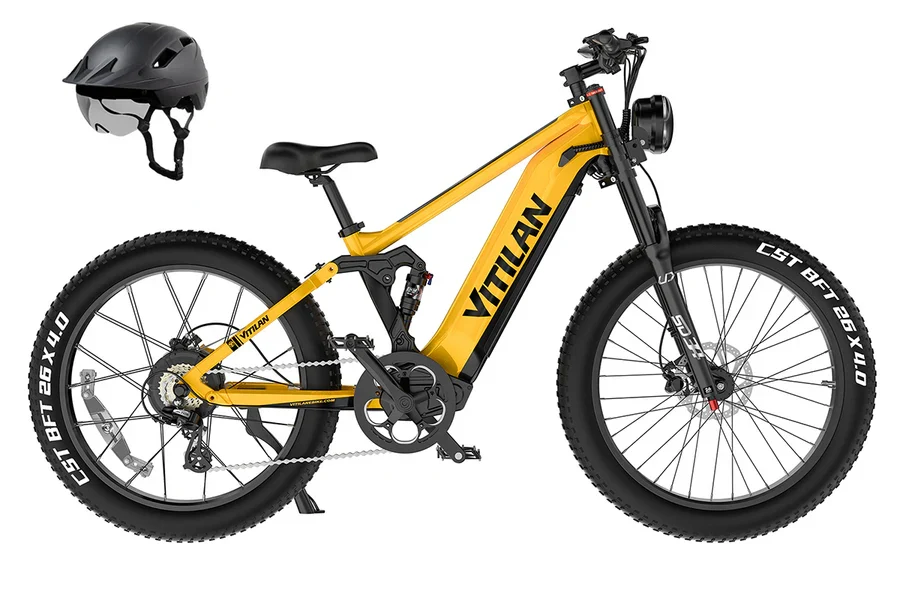

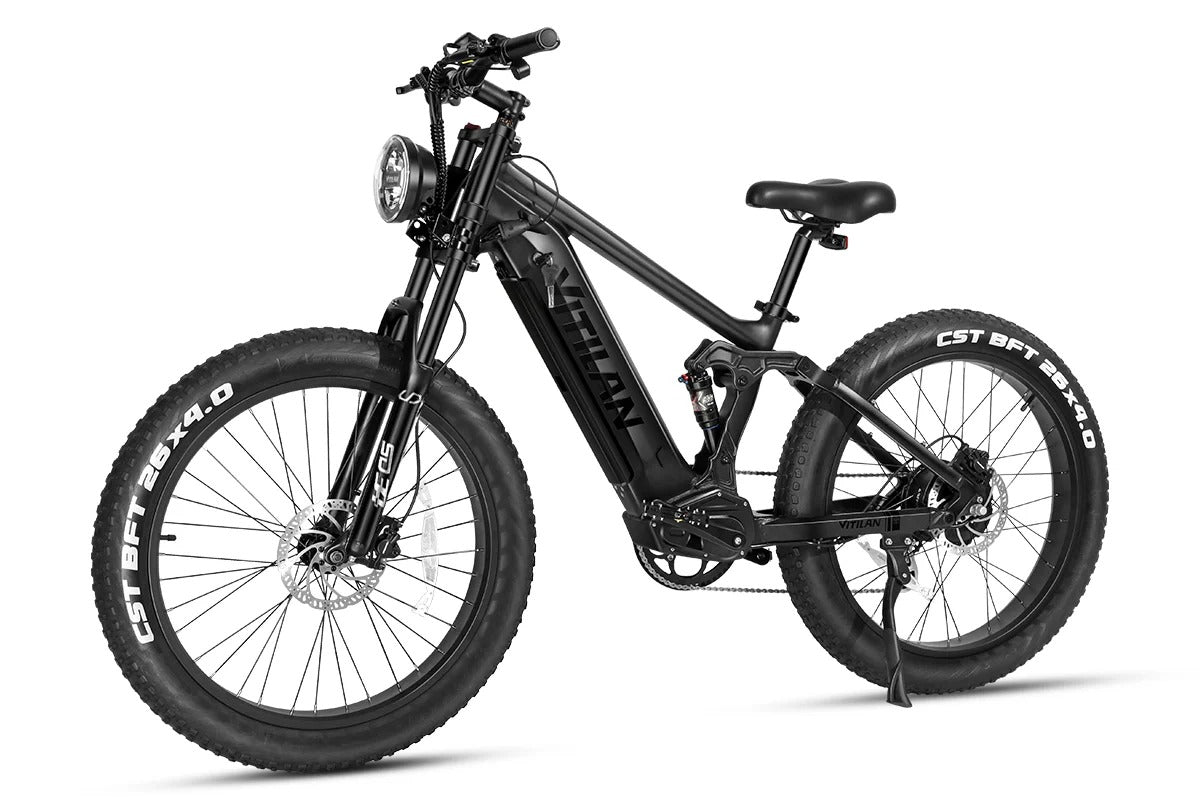

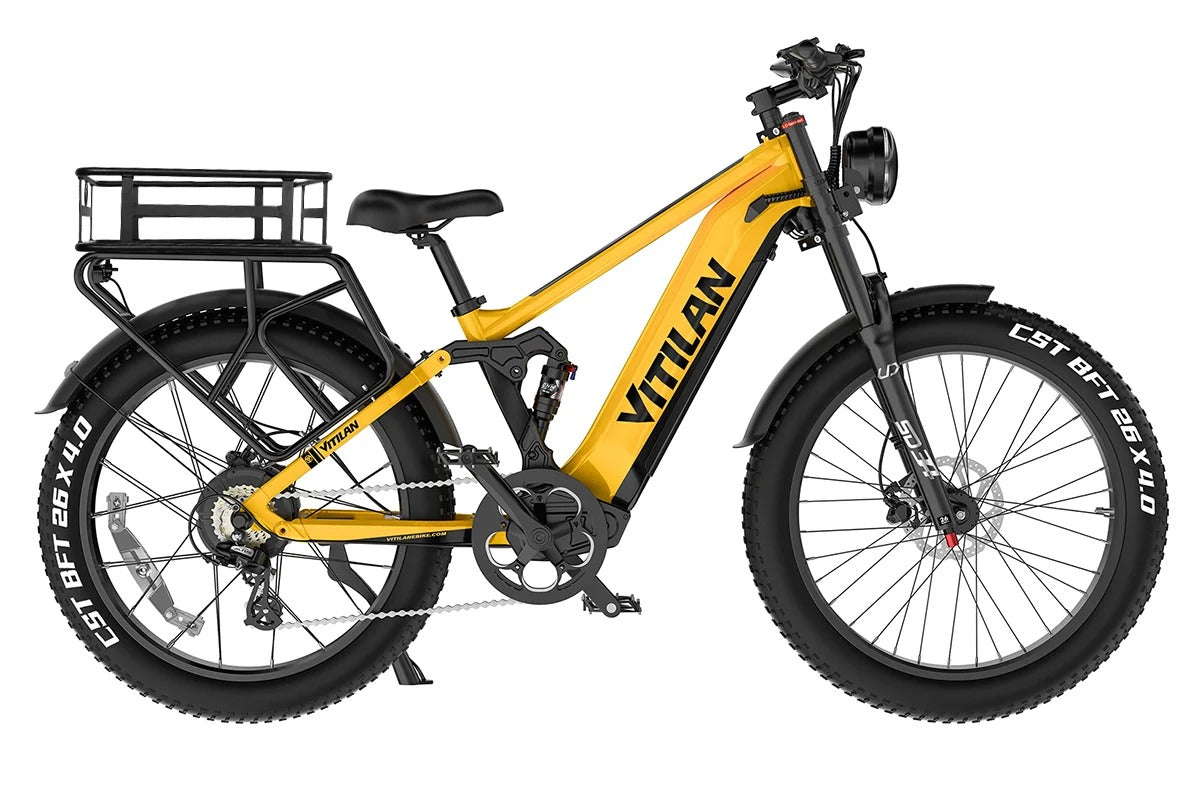

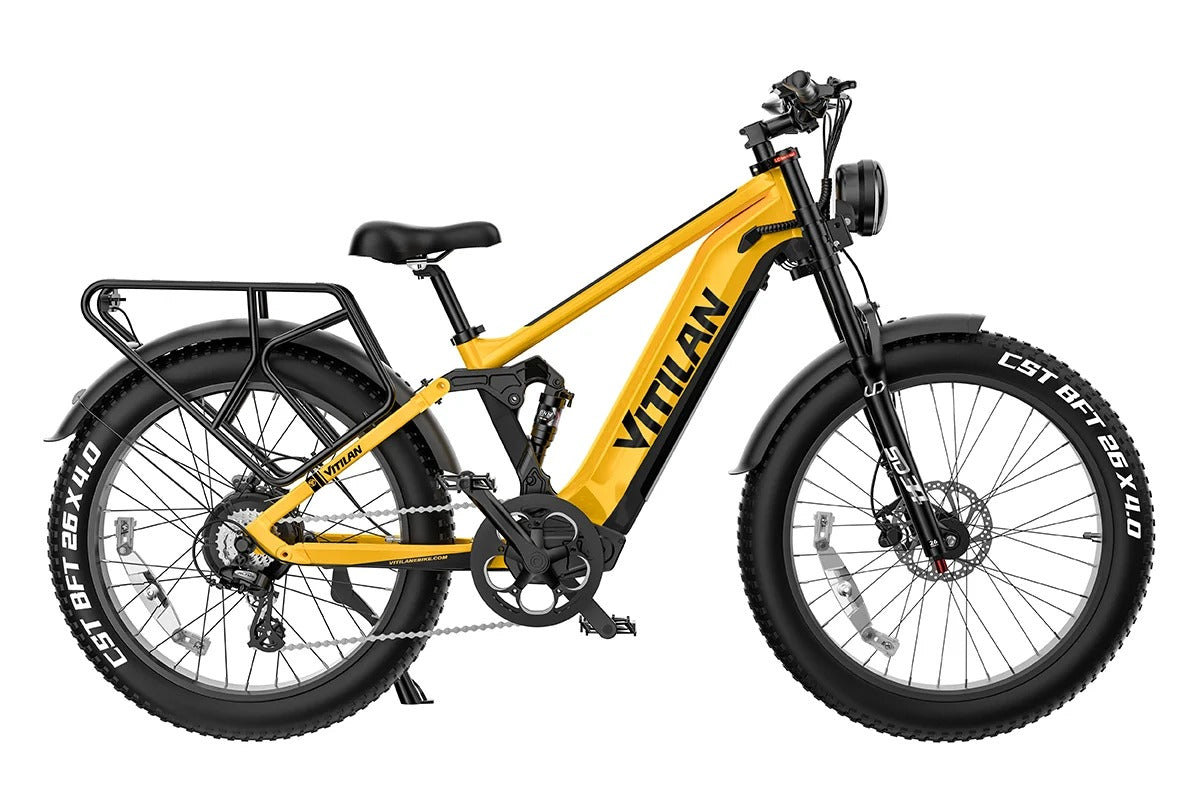

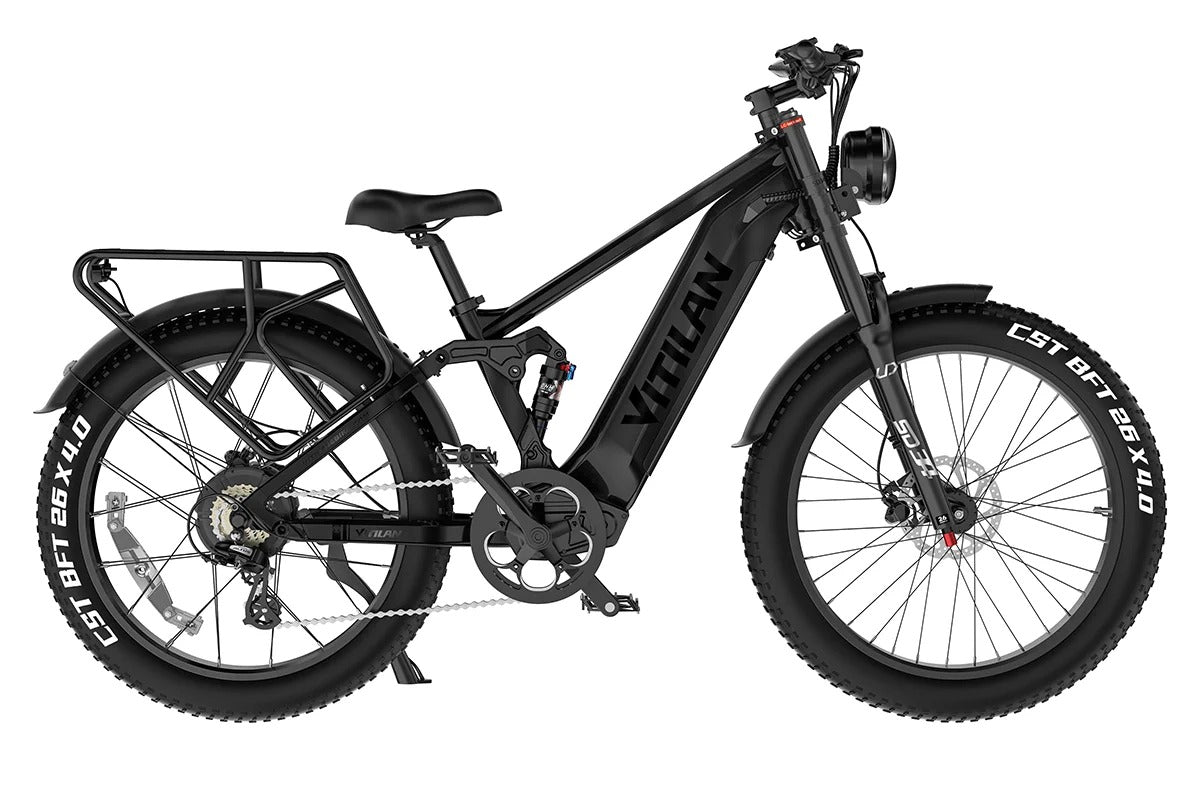

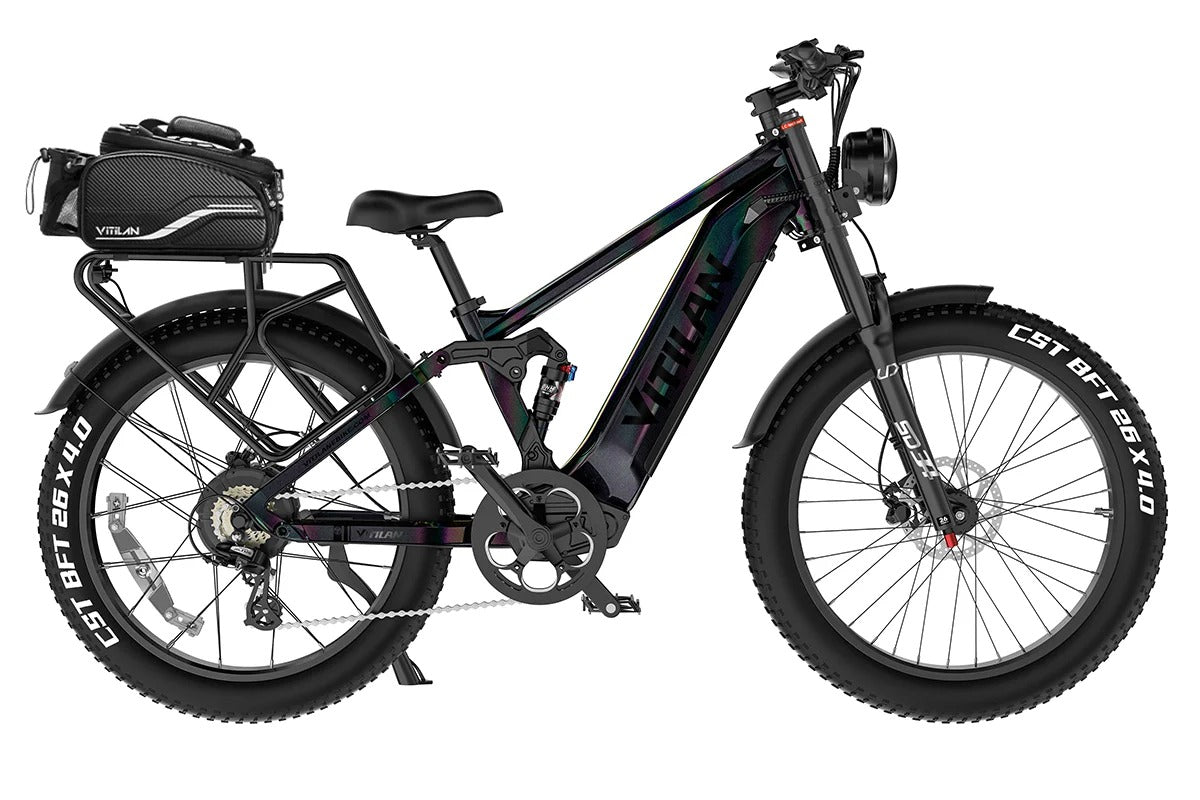

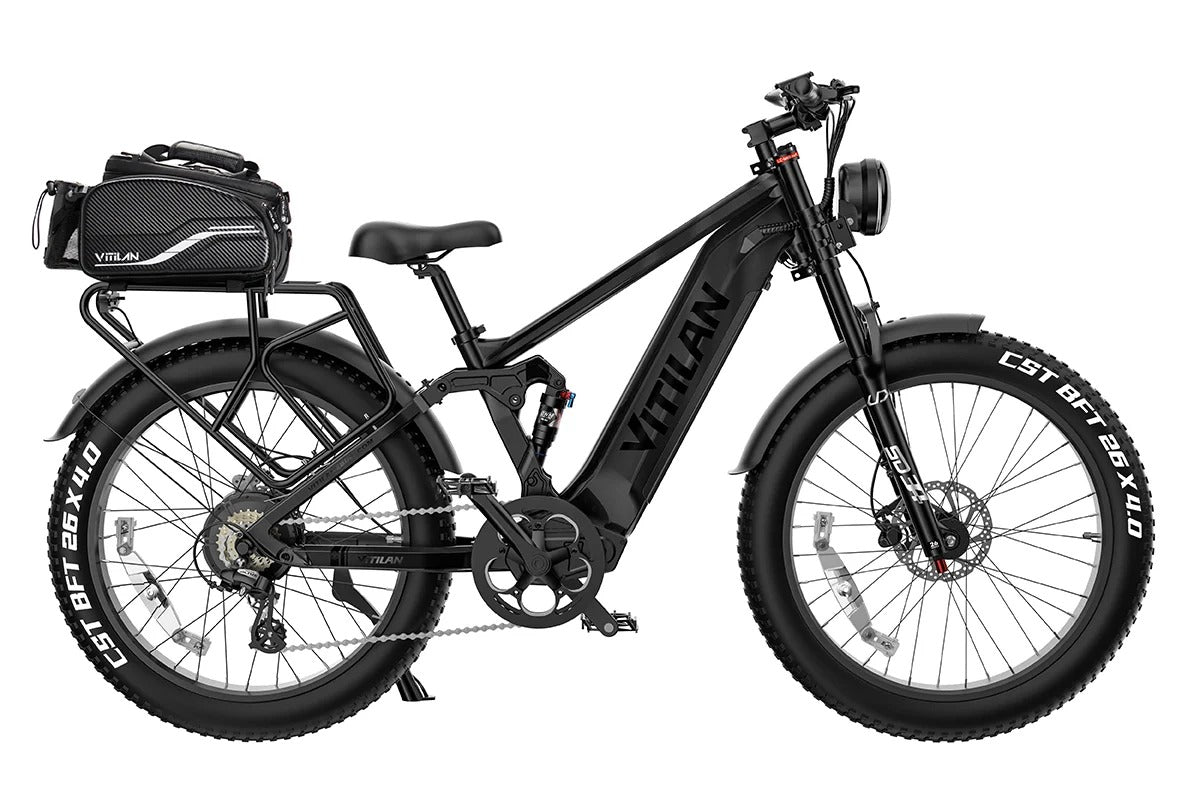

🚵 Vitilan T7 PRO Full Suspension Mountain E-Bike

Built for the Road. Ready for the Trail.

52V • 1000W Rated • 1600W Peak • 35 MPH • Full Suspension

The Vitilan T7 PRO is a powerful full-suspension fat-tire electric mountain bike designed for riders who want serious performance without giving up comfort. With a 52V 20Ah Samsung lithium-ion battery, 1000W Bafang motor, 1600W peak output, 26" × 4.0" tires, and a complete front-and-rear suspension system, the T7 PRO is built for commuting, gravel, trails, hills, and mixed terrain.

Its combination of high-capacity battery, hydraulic braking, wide puncture-resistant tires, Shimano 8-speed gearing, and adjustable suspension gives you a versatile platform for longer rides and more demanding terrain.

---

⚡ Why Riders Choose the T7 PRO

🔋 52V 20Ah Samsung Battery

The removable 52V 20Ah Samsung lithium-ion battery provides 1040Wh of capacity, giving the T7 PRO the energy reserve needed for longer rides.

🚀 1000W Rated / 1600W Peak Bafang Motor

The Bafang hub motor delivers 1000W rated power with up to 1600W peak output, providing strong acceleration and assistance when climbing hills.

🏔️ Full Suspension

A UDING 105mm air dual-suspension fork works with a DNM AO-8RC three-stage adjustable locking pneumatic rear shock and four-link rear suspension to absorb bumps across uneven terrain.

🛞 26" × 4.0" Fat Tires

The CST 26 × 4.0" puncture-resistant tires provide a wide contact patch for improved stability and traction on gravel, dirt, sand, snow, and rough pavement.

🛑 TEKTRO Hydraulic Disc Brakes

180mm front and rear TEKTRO hydraulic disc brakes provide controlled braking performance for everyday riding and off-road use.

🎛️ 5-Level Pedal Assist + Half-Twist Throttle

Choose between 5 levels of cadence-based pedal assist or use the half-twist throttle when you want motor assistance without pedaling.

---

🏆 Key Features

🔥 Bafang 1000W Motor

The T7 PRO uses a 52V 1000W Bafang hub motor with 1600W peak power.

That extra peak output is useful when accelerating, climbing inclines, or riding over rougher surfaces where maintaining momentum requires more motor assistance.

Motor specifications:

• Rated power: 1000W

• Peak power: 1600W

• Voltage: 52V

• Motor type: Hub motor

• Brand: Bafang

• Maximum torque: 80 Nm in the technical specifications

• Marketing section: 90 Nm claimed torque

• Maximum throttle speed: 35 MPH

Specification note: Vitilan's current product page lists 80 Nm maximum torque in its technical specification section, while another section advertises 90 Nm. We recommend treating the technical specification of 80 Nm as the conservative published specification.

---

🔋 52V 20Ah Samsung Battery

The T7 PRO uses a removable 52V 20Ah Samsung Li-ion battery with 1040Wh of energy capacity.

The battery is also listed with UL 2271 certification.

Battery at a glance:

• Voltage: 52V

• Capacity: 20Ah

• Energy: 1040Wh

• Battery chemistry: Samsung Li-ion

• Certification: UL 2271

• Removable: Yes

• Charger: 58.8V / 3.0A

• Charger input: 110–240V AC

• Frequency: 50–60Hz

---

🏔️ Complete Full-Suspension System

Unlike a basic hardtail e-bike, the T7 PRO uses suspension at both ends.

Front Suspension

UDING air dual-suspension fork

• 105mm fork

• Air suspension

• Adjustable design

Rear Suspension

DNM AO-8RC pneumatic rear shock

• Three-stage adjustable

• Locking function

• Pneumatic air shock

Four-Link Rear Suspension

The four-link suspension structure helps distribute forces through the rear suspension system, improving control and comfort over uneven surfaces.

---

🛞 26" × 4.0" All-Terrain Tires

The T7 PRO uses CST 26 × 4.0" tires with a puncture-resistant liner.

The wide 4.0-inch profile is designed for stability and traction across:

• 🏙️ Pavement

• 🪨 Gravel

• 🌲 Forest trails

• 🏖️ Beach terrain

• ❄️ Snow

• 🏔️ Mountain paths

Actual traction and handling depend on tire pressure, rider weight, terrain, weather, and riding technique.

---

🛑 TEKTRO 180mm Hydraulic Brakes

The bike is equipped with TEKTRO 180mm hydraulic disc brakes on the front and rear.

Hydraulic braking provides smooth lever control and strong stopping performance, particularly useful when riding a heavy fat-tire e-bike on descents or uneven terrain.

---

🎛️ 5-Level Pedal Assist + Half-Twist Throttle

The T7 PRO gives you two primary ways to use motor assistance:

Pedal Assist:
5 levels using a cadence sensor.

Throttle:
A half-twist throttle provides motor assistance without requiring continuous pedaling.

The manufacturer states that the throttle can also be used while pedal assist is active.

---

📊 Full Technical Specifications

Specification	Vitilan T7 PRO
Motor	Bafang hub motor
Motor Voltage	52V
Rated Motor Power	1000W
Peak Motor Power	1600W
Maximum Torque	80 Nm listed in technical specifications
Marketing Torque Claim	90 Nm
Motor Drive	Single hub motor
Battery	Samsung Li-ion
Battery Voltage	52V
Battery Capacity	20Ah
Battery Energy	1040Wh
Battery Certification	UL 2271
Battery Type	Removable
Charger	58.8V / 3.0A
Charger Input	110–240V AC
AC Frequency	50–60Hz
Pedal Assist	1–5 levels
Pedal Assist Sensor	Cadence sensor
Pedal Assist Range	Up to 80 miles
Throttle Range	Up to 60 miles
Advertised Range	60–80 miles
Maximum Speed	35 MPH
Throttle Speed	Up to 35 MPH
Charging 0–80%	Approximately 4 hours
Charging 0–100%	Approximately 6 hours
Frame	Aluminum alloy
Battery Integration	Fully integrated, lockable down-tube battery
Front Fork	UDING air dual suspension
Front Fork Travel	105mm
Rear Shock	DNM AO-8RC pneumatic
Rear Shock Adjustment	Three-stage adjustable locking
Rear Suspension	Four-link
Brakes	TEKTRO hydraulic disc
Brake Rotor Size	180mm front / 180mm rear
Tires	CST 26 × 4.0"
Tire Protection	Puncture-resistant liner
Rims	Aluminum alloy, 36H
Gearing	Shimano 8-speed
Shift Lever	Shimano SL-M315 thumb shifter
Chainring	53T
Chain	KMC X8 anti-rust chain
Crankset	Aluminum alloy, 170mm
Pedals	Full aluminum mountain-bike pedals with pegs
Seat Post	Aluminum alloy, 250mm × 33.9mm
Throttle	Half-twist
Display	TFT true-color display
Controller	Lishui
Display Functions	Speed, mileage, battery, PAS, lighting, USB charging
Headlight	High-output integrated LED
Headlight Rating	IPX6
Overall IP Rating	IPX6
Maximum Payload	330 lbs
Net Weight	84.5 lbs
Gross Weight	96.5 lbs
Package Weight	110 lbs
Package Dimensions	61.8" × 14.1" × 33.8"
Total Length	76.83"
Handlebar Height	45.7"
Minimum Seat Height	32.7"
Maximum Seat Height	36.84"
Top Tube Length	23.62"
Frame-to-Ground Height	9.84"
Handlebar Length	26.77"
Head Tube Length	3.74"
Wheelbase	47.24"
Recommended Rider Height	5'4"–6'8"
Gears	8-speed

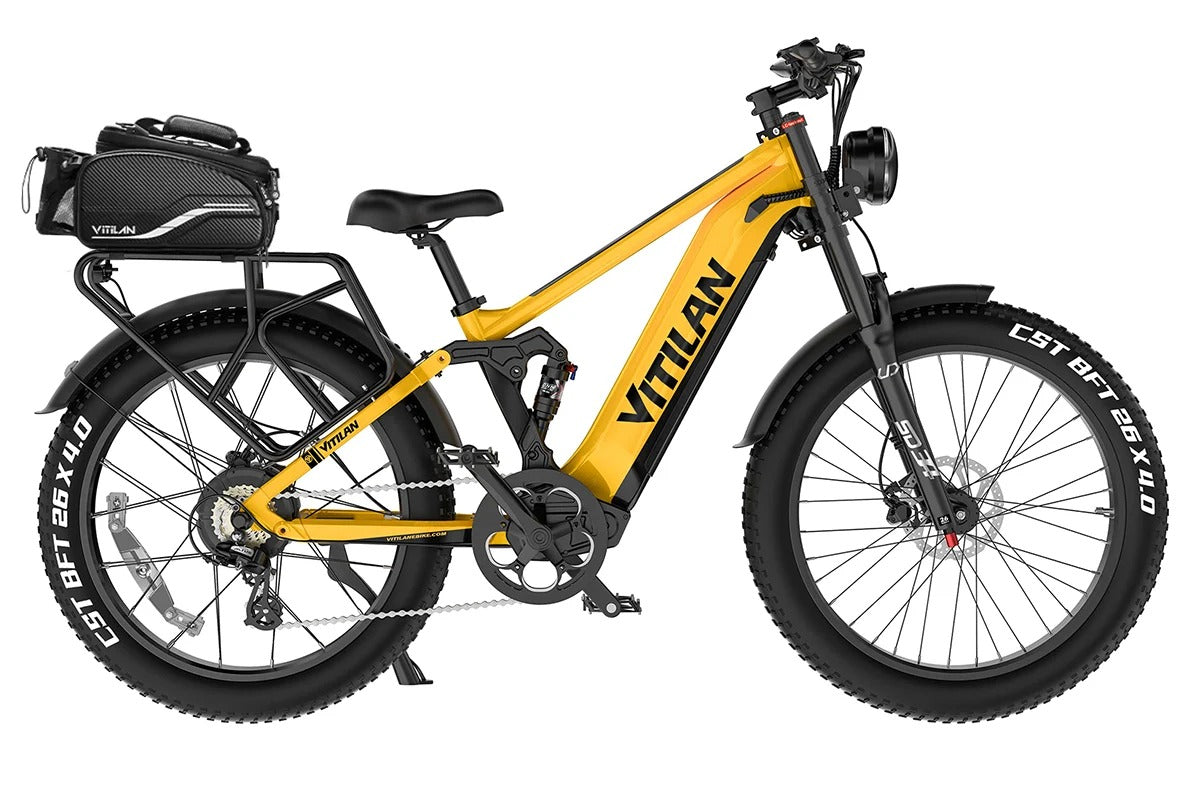

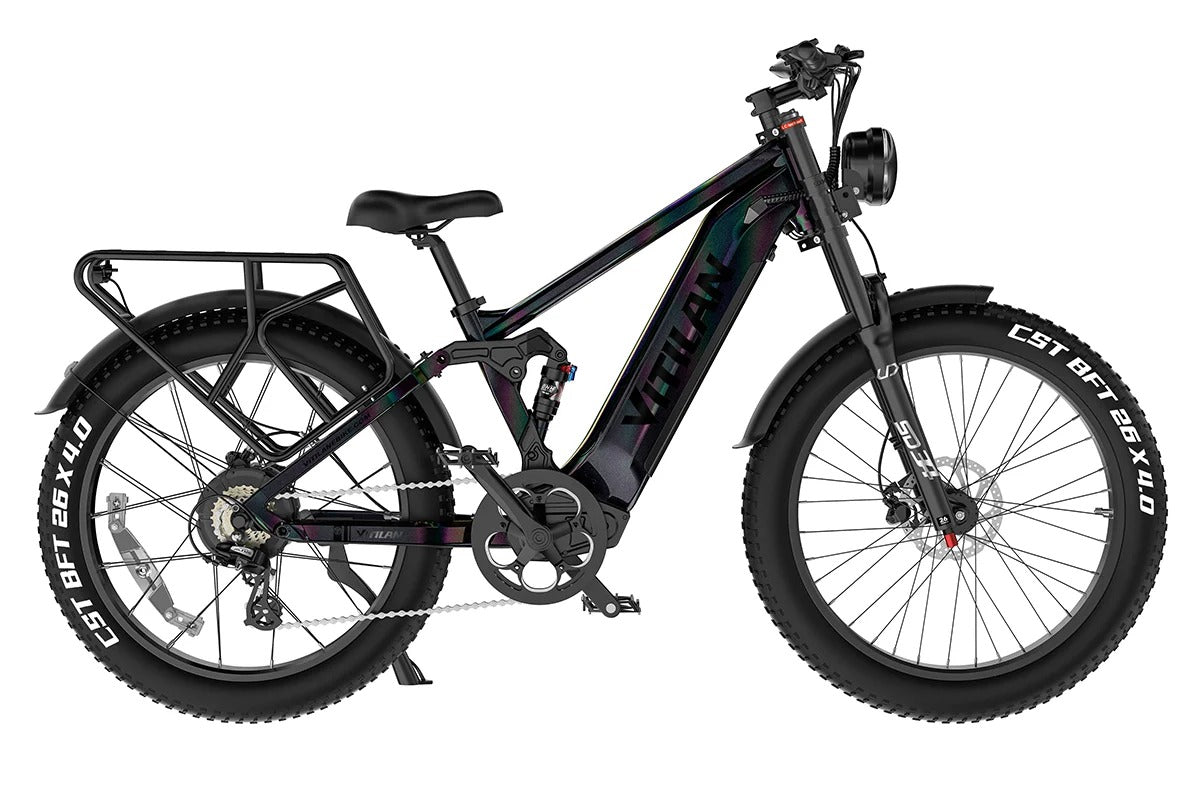

Colors Listed	Yellow, Black, Chameleon
Warranty Listed by Manufacturer	18 months

---

🚀 Performance

1000W Rated Power. 1600W Peak Output.

The T7 PRO combines a 52V electrical system with a 1000W rated Bafang hub motor and 1600W peak output.

That combination is designed to provide strong motor assistance during acceleration and climbing.

The manufacturer advertises 35 MPH maximum speed and states that the motor can assist on steep terrain, with one Vitilan page describing climbing capability up to approximately 30°.

Actual climbing ability depends heavily on rider weight, tire pressure, surface conditions, battery charge, temperature, gearing, and local speed settings.

---

🔋 60–80 Mile Advertised Range

Vitilan publishes:

• Up to 80 miles pedal-assist range

• Up to 60 miles throttle range

• 60–80 miles advertised range

These are estimates rather than guaranteed distances.

Range can vary significantly based on:

• Rider weight

• Terrain

• Speed

• Wind

• Tire pressure

• Temperature

• Pedal-assist level

• Throttle use

• Stop-and-go riding

• Battery condition

The T7 PRO's 52V 20Ah / 1040Wh battery gives it substantially more stored energy than many mainstream fat-tire e-bikes.

---

🏔️ Terrain Capability

The T7 PRO is designed around a combination of:

26" × 4.0" tires + 105mm front suspension + DNM rear air shock + four-link suspension + hydraulic brakes.

That setup makes it suitable for a broad range of recreational terrain, including:

🏙️ City Riding

Wide tires and suspension help smooth out potholes, uneven pavement, and rough streets.

🪨 Gravel

The 4.0-inch CST tires provide a wide footprint while the full-suspension platform helps absorb vibration.

🌲 Forest Trails

The combination of suspension travel, hydraulic brakes, 8-speed gearing, and motor assistance makes the bike suited to recreational trail riding.

🏖️ Beach / Soft Terrain

Fat tires can provide additional flotation compared with narrow bicycle tires, although tire pressure and surface conditions remain important.

❄️ Snow

The 26 × 4.0" fat tires are designed for all-terrain use, but traction varies significantly with snow depth and conditions.

---

🆚 How Does the T7 PRO Compare?

The following comparison uses manufacturer-published specifications for the T7 PRO, Aventon Aventure.2, and RadRover 6 Plus. Specifications can vary by model year, region, configuration, and software settings.

Specification	Vitilan T7 PRO	Aventon Aventure.2	RadRover 6 Plus
Motor Rated/Sustained	1000W	750W	750W
Peak Motor	1600W	1130W	750W
Motor Type	Hub motor	Rear hub	Geared hub
Battery	52V 20Ah	48V 15Ah	Approx. 48V, 12.3–14Ah depending battery version
Battery Energy	1040Wh	720Wh	589–672Wh
Torque	80 Nm technical spec / 90 Nm marketing claim	Not listed in source comparison	Not listed
Top Speed	35 MPH	Up to 28 MPH	20 MPH
Advertised Range	60–80 miles	Up to 60 miles	45+ miles
Tire Size	26 × 4.0"	26 × 4.0"	26 × 4.0"
Front Suspension	UDING air, 105mm	Suspension fork, 80mm	Suspension fork, 60mm
Rear Suspension	Yes — DNM + four-link	No	No
Brakes	TEKTRO 180mm hydraulic	Hydraulic disc	Hydraulic disc
Payload	330 lbs	400 lbs	275 lbs
Gears	Shimano 8-speed	Shimano 8-speed	7-speed
PAS	5 levels, cadence	4 levels, torque sensor	5 levels, cadence
Throttle	Half-twist	Thumb	Twist
Frame	Aluminum alloy	Aluminum alloy	Aluminum alloy
Display	TFT color display	Full-color display	Backlit LCD
Water Resistance	IPX6	Not directly comparable from cited source	Weather-resistant design
Weight	84.5 lbs net	Approx. 77 lbs	Approx. 73.4 lbs
Warranty	18 months	2 years	2 years

Where the T7 PRO stands out

The T7 PRO's biggest hardware advantages are its 1000W rated / 1600W peak motor, 52V 20Ah / 1040Wh battery, 35 MPH advertised top speed, 330-lb payload, and—most importantly—full front-and-rear suspension.

The Aventure.2 uses a 750W sustained / 1130W peak motor, 720Wh battery, 28 MPH maximum speed, 400-lb payload, and 80mm front suspension, but does not use a full rear-suspension system.

The RadRover 6 Plus uses a 750W motor, 45+ mile advertised range, 20 MPH top speed, 275-lb payload, 26 × 4" tires, and a 60mm suspension fork. (

---

🛡️ Buy With Confidence

🔒 Secure Checkout

Complete your purchase through a secure online checkout.

📦 Shipping

Vitilan lists free shipping on the product page and states an estimated delivery time of 2–9 business days. In-stock products are listed as shipping within 1 business day. Actual delivery timing can vary by destination and logistics conditions.

🔧 18-Month Warranty

Vitilan lists an 18-month warranty for the T7 PRO. Warranty coverage is subject to the manufacturer's warranty terms.

↩️ 30-Day Returns

The product page lists a 30-day return policy. Return eligibility and conditions should be confirmed under the applicable return policy.

💬 Customer Support

Vitilan advertises 24-hour fast response for customer support.

🔍 Quality & Inspection

The manufacturer provides detailed component specifications for the motor, battery, brakes, suspension, wheels, drivetrain, and electronics. For your protection, inspect the bike and packaging when it arrives and contact support promptly if any shipping damage or missing components are found.

---

📦 What's in the Box?

The manufacturer page confirms the bike is supplied with the major integrated components and lists the 58.8V 3.0A charger and full aluminum mountain-bike pedals as part of the specification.

The manufacturer also states that the T7 PRO arrives approximately 90% pre-assembled, with remaining installation including the wheel bolts, saddle, handlebars, front wheel, and other remaining parts.

Expected primary contents:

• 🚲 Vitilan T7 PRO electric bike

• 🔋 52V 20Ah Samsung battery

• 🔌 58.8V 3.0A charger

• 🦶 Full aluminum mountain-bike pedals with pegs

• 🛠️ Required assembly components

• 📘 Product/assembly documentation

Note: Accessories such as racks, baskets, helmets, and other add-ons depend on the configuration selected at purchase. The manufacturer page does not provide a definitive itemized packing-list for every accessory configuration.

---

❓ Frequently Asked Questions

🔋 How long does the T7 PRO take to charge?

The manufacturer lists approximately 4 hours for 0–80% and approximately 6 hours for 0–100% using the 58.8V 3.0A charger.

🚀 How fast does the T7 PRO go?

Vitilan lists a maximum speed of 35 MPH and a maximum throttle speed of 35 MPH. The bike may also have configurable speed settings depending on use and local requirements.

🔋 How far can the T7 PRO travel?

Vitilan lists up to 80 miles using pedal assist and up to 60 miles using throttle, with a general advertised range of 60–80 miles.

Actual range varies according to speed, rider weight, terrain, temperature, tire pressure, assist level, and riding conditions.

🧰 Does the T7 PRO require assembly?

Yes, but Vitilan states the bike arrives approximately 90% pre-assembled. Remaining assembly includes installing or tightening components such as the handlebars, saddle, front wheel, and wheel hardware.

📏 What rider height is recommended?

The manufacturer lists a recommended rider height of approximately 5'4" to 6'8".

The listed minimum seat height is 32.7", while maximum seat height is 36.84".

🏔️ Can I ride the T7 PRO off-road?

Yes. The T7 PRO is designed as an all-terrain mountain e-bike with 26 × 4.0" tires, 105mm front air suspension, DNM rear air suspension, a four-link rear system, hydraulic brakes, and an 8-speed drivetrain.

It is appropriate for recreational use across gravel, dirt, forest paths, rough pavement, and other mixed terrain. Always ride within your ability and local regulations.

💧 Is the T7 PRO waterproof?

The bike is rated IPX6. Vitilan describes this as protection against multi-directional water splashes and says light-to-moderate rain and wet roads are acceptable.

However, IPX6 does not mean the bike should be submerged. Vitilan advises avoiding prolonged exposure to heavy rain or extreme weather.

⚖️ How much weight can the T7 PRO carry?

The manufacturer's maximum load specification is 330 lbs.

This includes the rider and applicable carried load, so riders should account for any cargo or accessories.

🪪 Do I need a license to ride it?

This depends on your location and how the bike is configured or classified. Because the T7 PRO is advertised at 35 MPH, customers should check their state and local e-bike laws before riding on public roads or trails.

Do not assume that every jurisdiction treats a 35 MPH electric bike the same way as a conventional Class 1, Class 2, or Class 3 e-bike.

---

🧠 Built Around Real Specifications

The T7 PRO is not simply about a large motor number.

It combines:

52V electrical system

• 20Ah Samsung battery

• 1040Wh capacity

• 1000W rated Bafang motor

• 1600W peak output

• 80 Nm technical maximum torque / 90 Nm marketing claim

• 35 MPH advertised maximum speed

• 60-mile throttle range

• 80-mile pedal-assist range

• 26 × 4.0" CST tires

• 105mm UDING front suspension

• DNM rear air suspension

• four-link rear suspension

• TEKTRO 180mm hydraulic brakes

• Shimano 8-speed drivetrain

• 330-lb maximum payload

That combination gives the T7 PRO a distinctly performance-oriented setup for riders who want one e-bike capable of handling everyday roads and recreational off-road riding.

---

🏁 Ready for Your Next Ride?

Ride Further. Ride With More Control. Go Beyond the Ordinary.

If you're looking for a full-suspension fat-tire e-bike with a 52V 20Ah / 1040Wh Samsung battery, 1000W rated / 1600W peak Bafang motor, 35 MPH advertised top speed, hydraulic brakes, and true front-and-rear suspension, the Vitilan T7 PRO delivers a compelling performance-focused package.

Choose your configuration and make the T7 PRO your next all-terrain electric ride.
