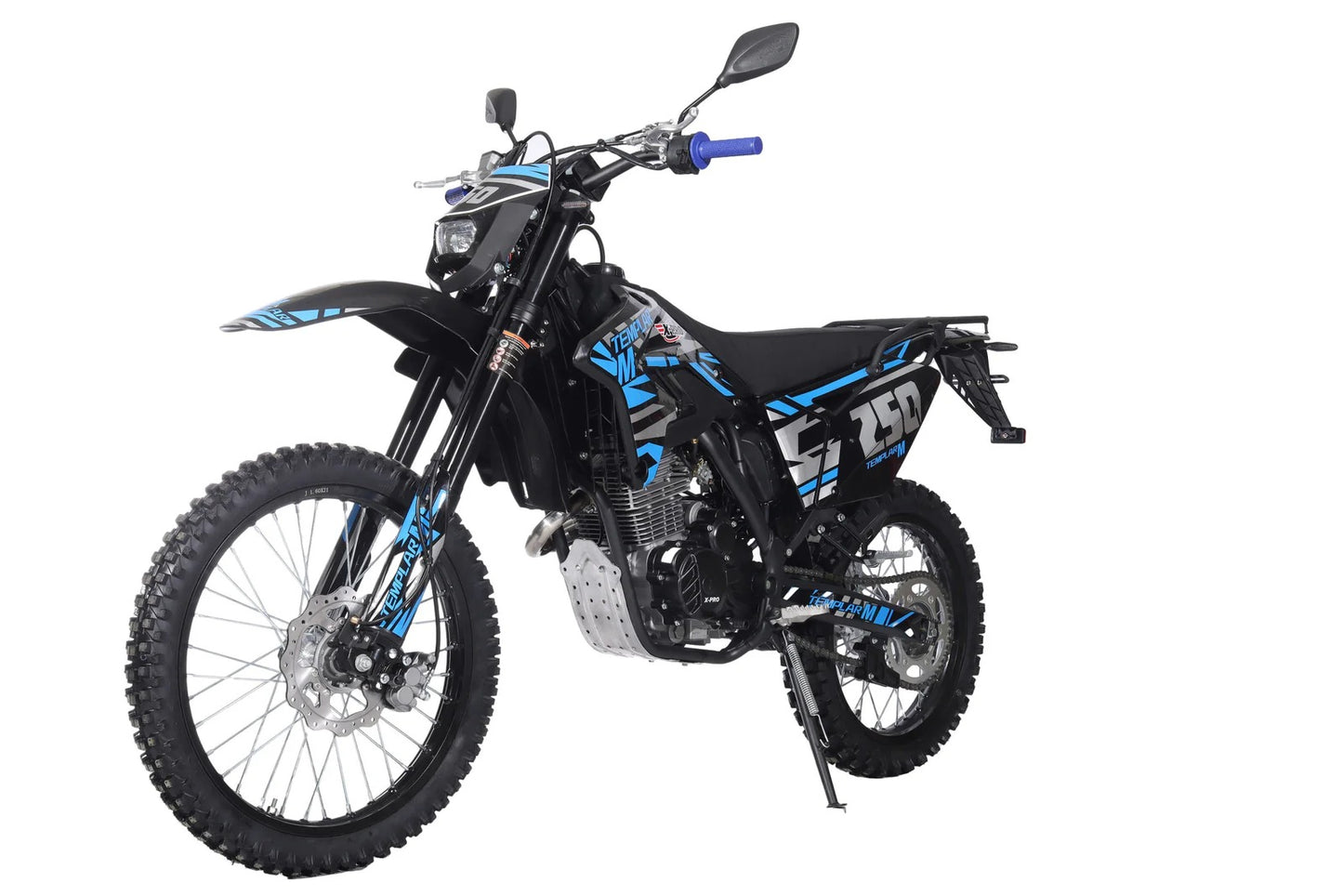

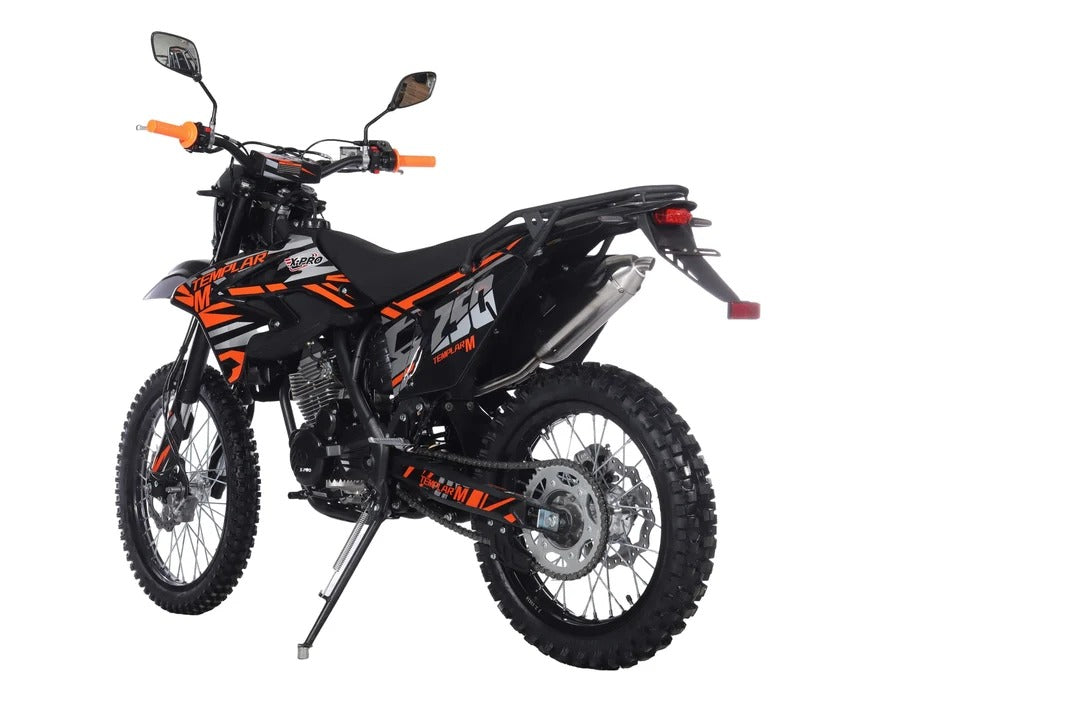

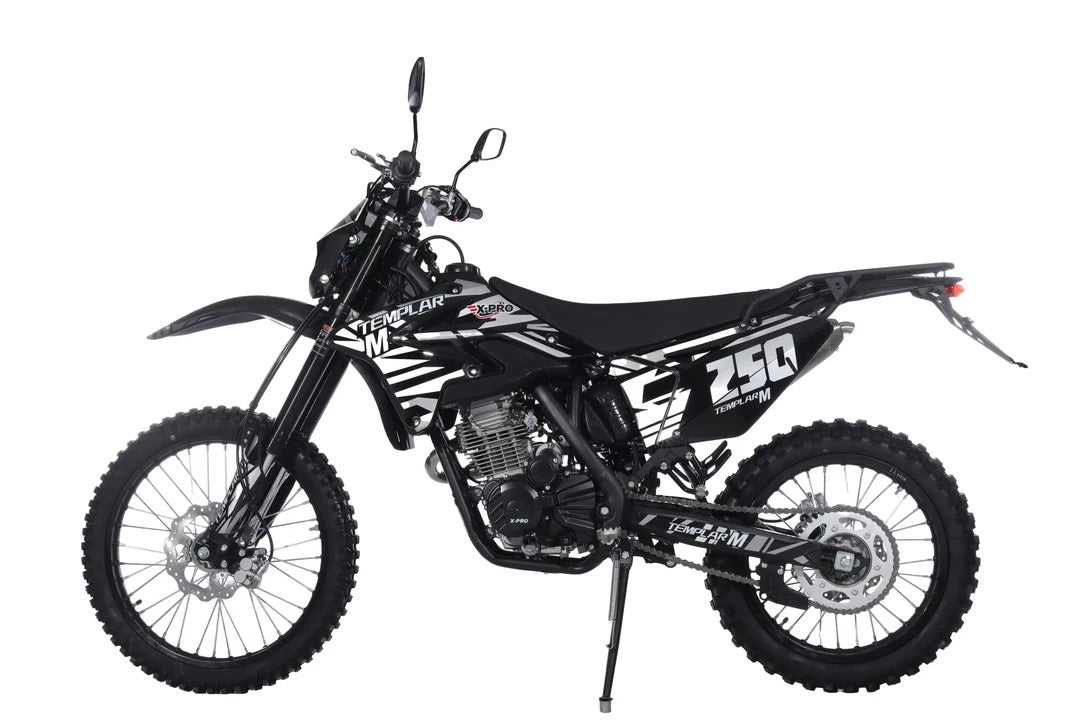

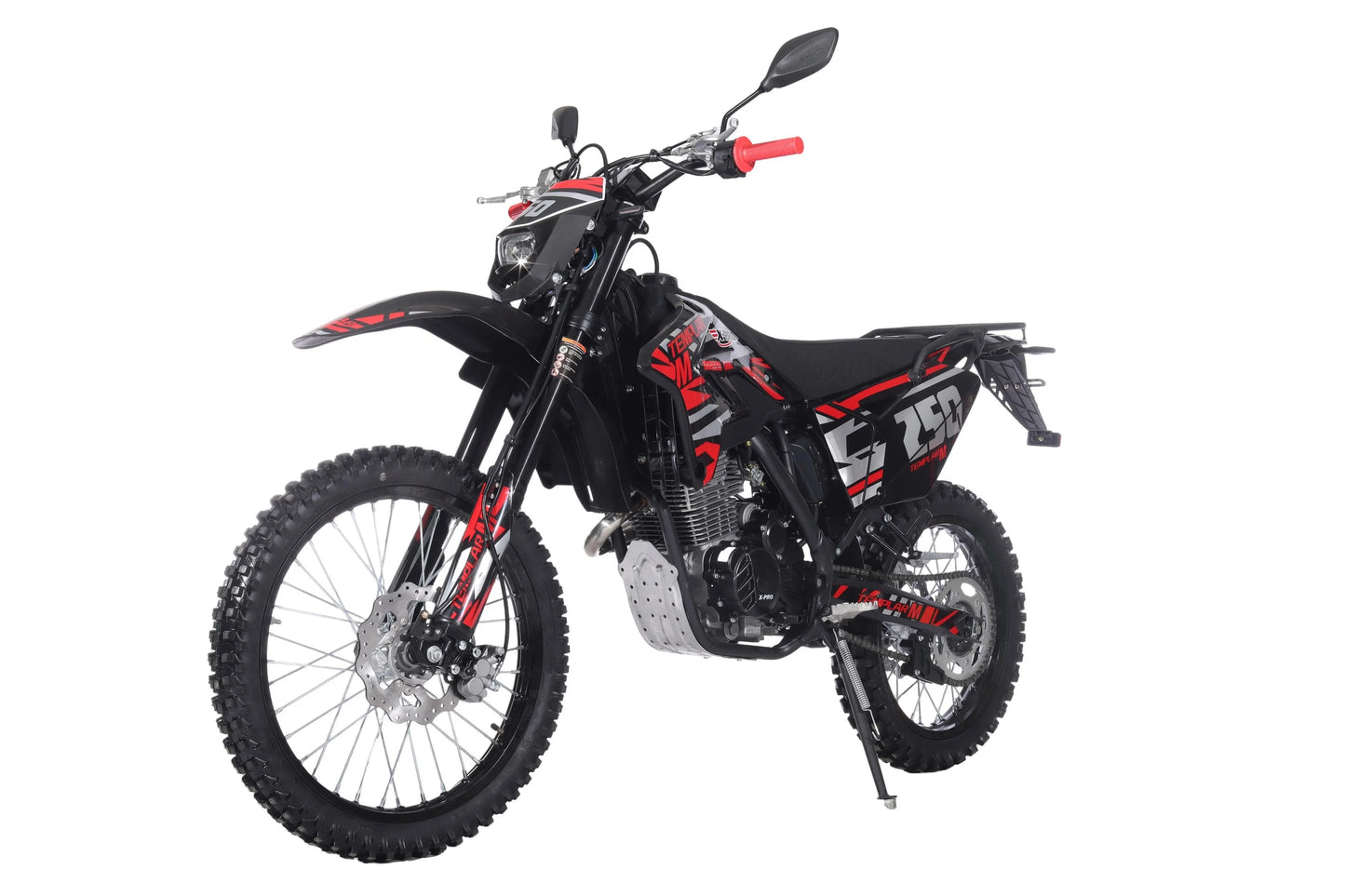

🏁 X-PRO TEMPLAR M 250cc DIRT BIKE
19 HP. 5-SPEED MANUAL. 60+ MPH. FULL-SIZE 21"/18" PERFORMANCE.
The X-PRO Templar M is a full-size gasoline dirt bike built around a 249.9cc Zongshen CB250F (ZS172FMM) 4-stroke engine, producing a published 14 kW / 19 HP at 8,500 RPM and 18 N·m of torque at 6,500 RPM.
With a 5-speed manual transmission, electric + kick start, 21"/18" knobby tires, inverted front fork, hydraulic disc brakes, 11.4" ground clearance and 440 lb maximum load capacity, the Templar M is designed for experienced teen and adult riders looking for a substantial off-road platform.
Important: This is a gasoline dirt bike, not an electric bike. The 12V/5Ah battery is a starter battery, so EV specifications such as propulsion-battery range and charging time do not apply.
⚡ 249.9cc ZONGSHEN POWER
🔥 14 kW / 19 HP
At the heart of the Templar M is the:
Zongshen CB250F (ZS172FMM)
Specifications:
-
249.9cc
-
4-stroke
-
Single-cylinder
-
Air-cooled
-
14 kW / 19 HP @ 8,500 RPM
-
18 N·m @ 6,500 RPM
-
9.25:1 compression ratio
-
72 × 61.4 mm bore × stroke
-
PE28 carburetor
-
CDI ignition
That gives the Templar M a genuine full-size engine platform rather than a small-displacement beginner motor.
🏎️ 5-SPEED MANUAL TRANSMISSION
🎯 FULL CONTROL OVER EVERY GEAR
The Templar M uses a:
5-Speed Manual Transmission
Power reaches the rear wheel through a:
#520 Chain Final Drive
The manual gearbox lets the rider select the appropriate gear for acceleration, cruising, climbs and technical terrain.
For experienced riders, the clutch-and-shift setup provides considerably more control than an automatic dirt bike.
🔑 ELECTRIC + KICK START
Two starting methods are built in:
⚡ ELECTRIC START
Push-button electric starting provides convenience when the 12V/5Ah starter battery is charged.
🦶 KICK START
The kick starter provides a mechanical backup if electric starting isn't available.
This dual-start configuration is particularly useful for riders spending time away from easy access to tools or electrical power.
🚀 60+ MPH ADVERTISED TOP SPEED
The Templar M is listed at:
60+ MPH
X-PRO notes that actual maximum speed depends on rider weight and road conditions.
A 60+ MPH dirt bike should only be ridden by appropriately trained riders in suitable off-road environments with proper protective equipment.
💪 18 N·m OF TORQUE
The Zongshen engine produces:
18 N·m @ 6,500 RPM
Combined with the 5-speed transmission and #520 chain drive, the engine has the gearing flexibility needed for both acceleration and off-road riding.
🛞 FULL-SIZE 21"/18" KNOBBY WHEELS
The Templar M uses:
FRONT
80/100-21
REAR
110/100-18
The large 21-inch front wheel helps the bike roll over uneven terrain while the 18-inch rear wheel provides the rear traction needed for dirt riding.
These are knobby off-road tires designed for appropriate dirt and trail surfaces.
🏁 UPGRADED INVERTED FRONT FORK
The Templar M features:
910 mm Inverted Front Fork
The fork is listed as non-adjustable.
The inverted design gives the front end a substantial full-size dirt-bike appearance and is intended to improve stability and impact control over uneven terrain.
🔧 REAR SUSPENSION
At the rear, the Templar M uses a:
460 mm Rear Suspension Unit
The current manufacturer specification lists the rear suspension as non-adjustable.
🛑 HYDRAULIC DISC BRAKES — FRONT + REAR
The Templar M is equipped with:
FRONT
240 mm Hydraulic Disc
REAR
240 mm Hydraulic Disc
Both wheels receive dedicated hydraulic disc braking, providing consistent braking control during off-road riding.
🧱 STEEL FRAME
The Templar M is built around a:
Steel Frame
The frame supports the full-size dimensions, 440 lb maximum load rating, 21"/18" wheel package and 57.9-inch wheelbase.
📏 FULL-SIZE 36.2" SEAT HEIGHT
The Templar M has a:
36.2-INCH SEAT HEIGHT
This is a true full-size dirt-bike riding position.
It is best suited to riders who can comfortably manage a tall motorcycle-style seat height.
Because X-PRO publishes the seat height rather than a specific recommended rider-height range, fit should be determined by the rider's inseam and ability to control the motorcycle.
⛰️ 11.4" GROUND CLEARANCE
The Templar M provides:
11.4 INCHES MINIMUM GROUND CLEARANCE
That gives the chassis useful clearance over:
-
Rocks
-
Roots
-
Ruts
-
Uneven dirt
-
Trail obstacles
Actual terrain capability depends on rider skill, surface conditions and suspension loading.
🛞 57.9" WHEELBASE
The:
57.9-INCH WHEELBASE
helps provide a stable full-size riding platform.
X-PRO specifically highlights the long wheelbase for rider control and comfort.
💡 FULL LED LIGHTING PACKAGE
The Templar M includes:
🔦 LED HEADLIGHT
🔴 LED TAIL LIGHT
↔️ LED TURN-SIGNAL INDICATORS
📢 HORN
📊 DIGITAL SPEEDOMETER
This gives the Templar M a more complete equipment package than a stripped-down competition-style dirt bike.
🏍️ HIGH-PERFORMANCE MUFFLER
The upgraded muffler is designed to help manage exhaust flow and reduce exhaust noise while safely directing high-temperature exhaust gases away from the engine.
The exhaust system uses:
Stainless-Steel Exhaust/Pipe
🦶 OVERSIZED FOOT PEGS
The Templar M includes:
Oversized Foot Pegs
The larger platform gives the rider more room and support while standing on the bike during off-road riding.
⚡ WHY THE TEMPLAR M STANDS OUT
🔥 249.9cc Zongshen Engine
A substantial 4-stroke single-cylinder platform.
💪 19 HP + 18 N·m
14 kW at 8,500 RPM and 18 N·m at 6,500 RPM.
🏎️ 5-Speed Manual
Lets experienced riders manage engine speed and gearing themselves.
🚀 60+ MPH
A serious performance specification for a dirt bike.
🛞 21"/18" Wheels
Full-size off-road wheel configuration.
🛑 240 mm Hydraulic Discs
Hydraulic braking at both ends.
🏁 Inverted Front Fork
910 mm non-adjustable fork.
⛰️ 11.4" Ground Clearance
Useful clearance for appropriate off-road terrain.
⚖️ 440 lb Maximum Load
Substantial capacity for a full-size platform.
🔑 Electric + Kick Start
Two ways to start the engine.
💡 Complete LED Lighting
Headlight, tail light and turn-signal indicators.
📊 FULL TECHNICAL SPECIFICATIONS
| Specification | X-PRO Templar M |
|---|---|
| Model | Templar M 250cc |
| Model Number | DB-K014 |
| Engine Brand | Zongshen |
| Engine Model | CB250F (ZS172FMM) |
| Engine Displacement | 249.9cc |
| Engine Type | 4-stroke |
| Cylinder Arrangement | Single-cylinder |
| Cooling System | Air cooled |
| Compression Ratio | 9.25:1 |
| Bore × Stroke | 72 × 61.4 mm |
| Maximum Power | 14 kW / 19 HP @ 8,500 RPM |
| Maximum Torque | 18 N·m @ 6,500 RPM |
| Transmission | 5-speed manual |
| Final Drive | #520 chain |
| Start System | Electric + kick |
| Ignition | CDI |
| Carburetor | PE28 |
| Maximum Speed | 60+ MPH |
| Starter Battery | 12V / 5Ah |
| Propulsion Battery | Not applicable — gasoline engine |
| Charging Time | Not applicable |
| Fuel | Gasoline |
| Fuel Capacity | 2.3 gal / 9 L |
| Frame | Steel |
| Front Suspension | Inverted, 910 mm, non-adjustable |
| Rear Suspension | 460 mm, non-adjustable |
| Front Brake | Hydraulic disc, 240 mm |
| Rear Brake | Hydraulic disc, 240 mm |
| Front Tire | 80/100-21 |
| Rear Tire | 110/100-18 |
| Handlebar Tube | Aluminium Fat Bar |
| Exhaust/Pipe | Stainless steel |
| Maximum Load Capacity | 440 lbs |
| Net Weight | 258 lbs |
| Gross Weight | 326 lbs |
| Overall Length | 89" |
| Overall Width | 34.6" |
| Overall Height | 55.5" |
| Seat Height | 36.2" |
| Wheelbase | 57.9" |
| Minimum Ground Clearance | 11.4" |
| Carton Dimensions | 68" × 18" × 34" |
| Engine Kill Switch | Yes |
| Foot Brake | Yes |
| Horn | Yes |
| Headlight | LED |
| Tail Light | LED |
| Turn Signal Indicator | LED |
| Speedometer | Digital |
| EPA Approved | Yes |
| Road Use | Off-road use only |
| Assembly | Some assembly required |
These specifications match the current manufacturer listing for model DB-K014.
🏎️ PERFORMANCE
🔥 ENGINE POWER
The Templar M's 249.9cc Zongshen CB250F produces:
14 kW / 19 HP @ 8,500 RPM
and:
18 N·m @ 6,500 RPM
That is the core performance package behind the bike's 60+ MPH advertised top speed.
⚙️ GEARING
The 5-speed manual transmission lets the rider keep the engine in a useful RPM range as terrain and speed change.
The #520 chain final drive transfers engine power to the rear wheel.
🚀 TOP SPEED
60+ MPH
Actual performance varies with rider weight and road/terrain conditions.
⛽ RANGE
X-PRO does not publish a guaranteed miles-per-tank range for the Templar M.
The bike has a:
2.3-gallon / 9-liter fuel tank
Actual fuel range depends on speed, throttle use, terrain, rider weight, gearing and riding style.
⛰️ HILL CLIMBING
X-PRO does not publish a specific maximum hill angle for the Templar M.
However, the combination of:
14 kW / 19 HP
18 N·m torque
5-speed manual gearing
#520 chain
and 11.4" ground clearance
provides the mechanical configuration for appropriate off-road climbs.
No unsupported maximum-grade number is claimed.
🌲 TERRAIN CAPABILITY
The 21"/18" knobby tires, 11.4" ground clearance, inverted front fork and rear suspension make the Templar M suitable for appropriate:
-
Dirt trails
-
Gravel
-
Grass
-
Sand
-
Farm/private-property terrain
-
Recreational off-road riding
It is not a substitute for a dedicated enduro/race bike with fully adjustable competition suspension.
🆚 TEMPLAR M VS 250cc COMPETITORS
| Specification | X-PRO Templar M | Apollo RFZ Thunder 250 | Apollo RFZ DB-36 |
|---|---|---|---|
| Engine | Zongshen CB250F / ZS172FMM | Zongshen 250cc | Apollo 250cc |
| Actual Displacement | 249.9cc | 250cc | 223cc listed |
| Engine Type | 4-stroke, single-cylinder | 4-stroke, single-cylinder | 4-stroke, single-cylinder |
| Cooling | Air cooled | Air cooled | Air cooled |
| Power | 14 kW / 19 HP @ 8,500 RPM | 16.1 HP @ 7,000 RPM | 17.1 HP listed |
| Torque | 18 N·m @ 6,500 RPM | 17.5 N·m @ 5,500 RPM | Not published |
| Transmission | 5-speed manual | 5-speed manual | 5-speed manual |
| Start | Electric + kick | Electric + kick | Electric + kick |
| Top Speed | 60+ MPH | 70+ MPH | 90 MPH claimed |
| Front Tire | 80/100-21 | 80/100-21 | 90/90-21 |
| Rear Tire | 110/100-18 | 100/90-18 | 140/80-18 |
| Front Suspension | 910 mm inverted, non-adjustable | Adjustable inverted fork, 830 mm / 200 mm travel | Hydraulic suspension fork |
| Rear Suspension | 460 mm, non-adjustable | Adjustable 450 mm | Sport rear shock |
| Front Brake | 240 mm hydraulic disc | Hydraulic disc | Hydraulic disc |
| Rear Brake | 240 mm hydraulic disc | Hydraulic disc | Hydraulic disc |
| Frame | Steel | Double-beam/high-strength steel | High-strength steel |
| Fuel Tank | 2.3 gal / 9 L | 1.7 gal | 1–2 gal depending listing |
| Max Load | 440 lbs | 279 lbs | 440 lbs |
| Net Weight | 258 lbs | 233 lbs | 247 lbs / 238 lbs depending listing |
| Seat Height | 36.2" | 35.8" | 37" |
| Ground Clearance | 11.4" | 13.5" | 9" |
| Wheelbase | 57.9" | 52.8" | 56" |
| LED Headlight | Yes | Yes | Yes |
| LED Tail Light | Yes | Yes | Yes |
| Turn Signals | Yes | Yes | Yes |
| Digital Speedometer | Yes | Not confirmed | Not confirmed |
| Horn | Yes | Yes | Yes |
| EPA | Yes | Not confirmed in cited listing | Not confirmed |
| Road Use | Off-road only | Off-road only in cited listing | Off-road only |
| Warranty | X-PRO limited warranty | 30-day parts warranty in cited listing | 1-year parts/engine warranty in cited listing |
Competitor specifications can vary by production year and seller configuration. The Apollo Thunder listing, for example, gives 16.1 HP, 17.5 N·m, 5-speed manual transmission, 80/100-21 and 100/90-18 tires, hydraulic disc brakes, 1.7-gallon fuel tank, 35.8" seat height and 13.5" ground clearance.
The Apollo DB-36 listing describes a 223cc displacement, 17.1 HP, 5-speed manual transmission, electric + kick start, 90/90-21 and 140/80-18 tires, hydraulic disc brakes, 37" seat height, 56" wheelbase, 9" ground clearance and 247 lb bike weight. Bikes)
🏆 WHERE THE TEMPLAR M STANDS OUT
The Templar M combines:
249.9cc actual displacement
14 kW / 19 HP
18 N·m torque
5-speed manual
60+ MPH
21"/18" wheels
440 lb maximum load
11.4" ground clearance
57.9" wheelbase
240 mm hydraulic discs front and rear
Electric + kick start
Full LED lighting
into one full-size package.
🧑 RIDER FIT
The manufacturer does not publish a specific recommended rider-height range.
Instead, the key fit measurement is:
36.2-INCH SEAT HEIGHT
The bike is marketed as:
Designed for adults
The 440 lb maximum load is the manufacturer's stated weight capacity.
Because the Templar M can reach 60+ MPH, riders should have appropriate motorcycle/dirt-bike experience and be able to comfortably control a motorcycle with a 36.2-inch seat height.
🛡️ TRUST & OWNERSHIP
🔐 SECURE CHECKOUT
Your purchase is completed through a secure online checkout.
🇺🇸 U.S.-BASED SUPPORT
X-PRO states that warranty claims and support requests are handled by its U.S.-based support team.
🏭 U.S. PARTS AVAILABILITY
X-PRO states that it maintains replacement-parts inventory through its U.S. warehouse operations.
🔧 LIMITED WARRANTY
X-PRO's complete-vehicle warranty provides:
1-YEAR FRAME WARRANTY
Against qualifying structural defects.
90-DAY PARTS WARRANTY
Against qualifying manufacturing defects.
Normal wear items such as tires, brake pads, chain and bulbs are excluded, as are damage from accidents, misuse or unauthorized modifications.
🚚 SHIPPING
The product page states that shipping is calculated at checkout.
Because the Templar M weighs:
258 LBS NET
and:
326 LBS GROSS
it is shipped as a large powersports product.
Before accepting delivery:
-
Inspect the crate/package.
-
Photograph visible damage.
-
Record damage on the delivery paperwork.
-
Verify all components after opening.
-
Do not ride until assembly and safety checks are complete.
🔧 ASSEMBLY
SOME ASSEMBLY REQUIRED
The manufacturer specifically identifies installation of components such as:
-
Front suspension
-
Handlebar
-
Lights
as part of setup
Professional assembly is recommended if you are not experienced with motorcycle/dirt-bike mechanical work.
🛢️ BEFORE YOUR FIRST RIDE
A high-performance 249.9cc dirt bike should receive a proper pre-ride inspection.
🔩 CHECK FASTENERS
Verify critical bolts and mounting hardware.
🛞 CHECK WHEELS
Verify wheel installation and tire condition.
🛑 CHECK BOTH BRAKES
Test the 240 mm front and 240 mm rear hydraulic discs.
🔗 CHECK THE #520 CHAIN
Inspect chain tension and lubrication.
🛢️ CHECK ENGINE OIL
Verify the correct engine-oil level before starting the motorcycle.
⛽ CHECK FUEL
The tank holds:
2.3 gal / 9 L
💡 CHECK ELECTRICALS
Test:
-
LED headlight
-
LED tail light
-
Turn indicators
-
Horn
-
Digital speedometer
-
Engine kill switch
❓ FREQUENTLY ASKED QUESTIONS
⛽ Does the Templar M need charging?
No.
This is a 249.9cc gasoline dirt bike.
The 12V/5Ah battery is used for the electrical starting system and onboard electronics—not propulsion.
There is therefore no electric-bike charging time or electric range.
🔋 What battery does it use?
The starter battery is:
12V / 5Ah
The manufacturer does not publish a specific charging-time figure for this starter battery.
🚀 How fast is the Templar M?
The advertised maximum is:
60+ MPH
Actual speed depends on rider weight and road/terrain conditions.
⚡ How much power does the engine make?
The Zongshen CB250F engine produces:
14 kW / 19 HP @ 8,500 RPM
💪 What is the torque?
18 N·m @ 6,500 RPM
🔄 Does it have an automatic transmission?
No.
The Templar M has a:
5-SPEED MANUAL TRANSMISSION
with a #520 chain final drive.
🛞 What tire sizes does it use?
Front: 80/100-21
Rear: 110/100-18
🛑 What brakes does it have?
Front: 240 mm hydraulic disc
Rear: 240 mm hydraulic disc
⛰️ How steep can it climb?
X-PRO does not publish a maximum hill-grade figure.
The bike's 19 HP, 18 N·m torque, 5-speed gearbox, #520 chain and 11.4" ground clearance make it suitable for appropriate off-road climbs, but terrain should always match the rider's skill level.
🌲 What terrain is it designed for?
The Templar M is designed for off-road riding including:
-
Dirt
-
Gravel
-
Trails
-
Grass
-
Farm/private-property terrain
-
Recreational off-road tracks
It is not intended for extreme competition use simply because it has a 250cc engine.
📏 How tall is the seat?
36.2 inches
This is a tall, full-size dirt-bike seat.
⚖️ What is the maximum load?
440 lbs
Do not exceed this published capacity.
🌧️ Is it waterproof?
No waterproof/IP rating is published for this gasoline dirt bike.
The Templar M should not be treated as waterproof or submerged in water.
🪪 Is it street legal?
The current product listing specifically states:
OFF-ROAD USE ONLY
Although an older product description mentions that registration may be possible in some states, X-PRO makes no guarantee of road registration. Customers must independently verify local DMV requirements.
🇺🇸 Can it be sold in California?
The current listing identifies the bike as EPA Approved but does not display a CARB certification for California.
Because California emissions/registration rules are different, customers should verify eligibility with X-PRO and California authorities before ordering.
🔧 Does it require assembly?
Yes.
The manufacturer specifies assembly of components including the front suspension, handlebar and lights.
📦 WHAT'S IN THE BOX?
The Templar M is shipped partially assembled.
The product listing identifies components requiring installation, including:
-
🏍️ Templar M 250cc dirt bike
-
🛞 Front wheel/components
-
🏁 Front suspension components
-
🧭 Handlebar
-
💡 Lighting components
-
🔋 12V/5Ah starter battery
-
🔧 Required assembly hardware
-
📖 Owner documentation
⚠️ HELMET NOT INCLUDED
A properly fitted helmet and complete protective riding equipment should be worn.
Recommended equipment:
-
Full-face dirt-bike helmet
-
Goggles/eye protection
-
Gloves
-
Chest protection
-
Knee protection
-
Elbow protection
-
Motocross boots
-
Long riding pants
🏆 THE TEMPLAR M 250
19 HP. 18 N·m. 5 GEARS. 21"/18" WHEELS.
🔥 249.9cc ZONGSHEN CB250F
⚡ 14 kW / 19 HP @ 8,500 RPM
💪 18 N·m @ 6,500 RPM
🏎️ 5-SPEED MANUAL
🔗 #520 CHAIN DRIVE
🚀 60+ MPH
🔑 ELECTRIC + KICK START
🛞 80/100-21 FRONT
🛞 110/100-18 REAR
🏁 910 mm INVERTED FRONT FORK
🔧 460 mm REAR SUSPENSION
🛑 240 mm HYDRAULIC FRONT DISC
🛑 240 mm HYDRAULIC REAR DISC
🧱 STEEL FRAME
⛰️ 11.4" GROUND CLEARANCE
📏 57.9" WHEELBASE
🪑 36.2" SEAT HEIGHT
⚖️ 440 LB MAXIMUM LOAD
⛽ 2.3 GAL / 9 L FUEL CAPACITY
💡 LED HEADLIGHT + TAIL LIGHT + TURN INDICATORS
📊 DIGITAL SPEEDOMETER
🏁 BUILT FOR THE RIDER WHO WANTS A REAL MANUAL DIRT BIKE
The X-PRO Templar M delivers the traditional dirt-bike experience with modern convenience: a 249.9cc Zongshen 4-stroke engine, 14 kW / 19 HP, 18 N·m torque, 5-speed manual transmission, electric + kick start, 21"/18" knobby wheels and hydraulic disc brakes at both ends.
With a 36.2-inch seat height, 57.9-inch wheelbase, 11.4-inch ground clearance and 440 lb maximum load, it's built around a substantial full-size chassis.
